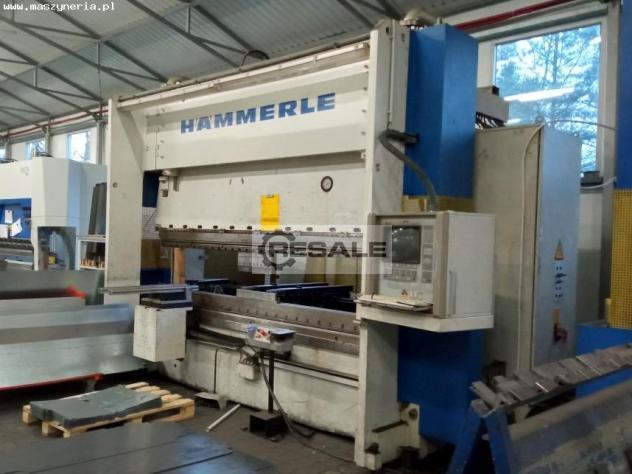

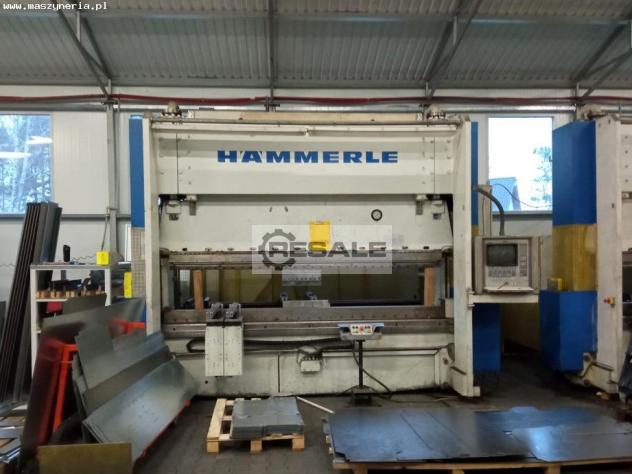

Press brake HAMMERLE BM 200-3100

metal working machines / sheet metal working

Manufacturer: HAMMERLE

Model:BM 200-3100

Type of machine: Press brake

item-No.: 151402307

Quantity: 0

Date: 25.10.2023

Year of manufacture: 1996

Location: Land-pl Poland

Price: 23,810 EUR

The press brake HAMMERLE BM 200-3100 press brake was built in 1996. The folding machine was serviced regularly.

Technical parameters of the press:

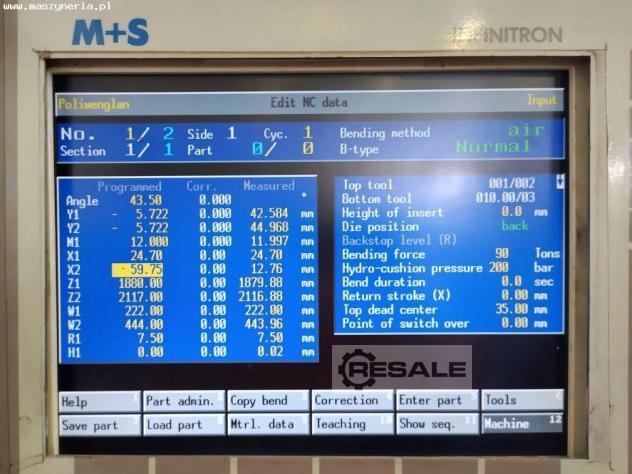

- control: INFINITRON
- number of NC axes: 11
- pressure: 200 tons
- bending length: 3100 mm
- working stroke: 400 mm
- distance between the body walls: 3240 mm
- maximum distance between the table and the bumper: 965 mm
- voltage: 3 x 400 Volt
- control voltage: 24 V =
- total power: 28 kW
- deflection arrow compensation
- total machine width: 4400 mm
- total height of the press: 3400 mm
- weight of the press: 16 600 kg
