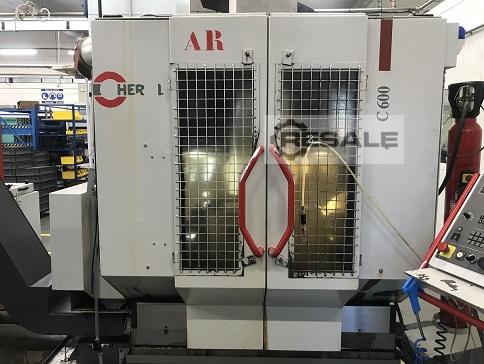

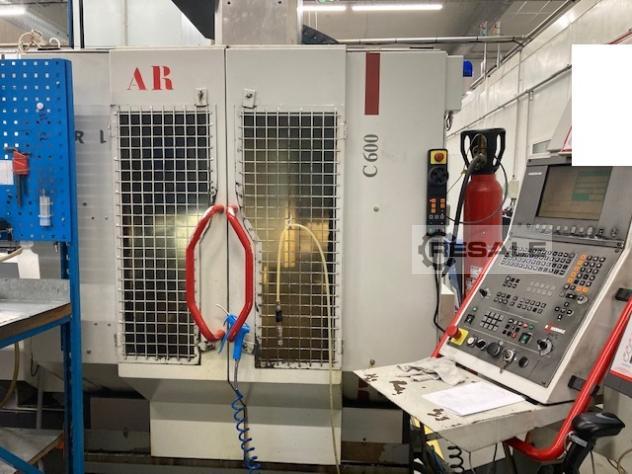

Machine Details
Warehouse number 1105-03677
Machine type machining center - Universal
HERMLE brand
Type C 600 U
Year of construction 2003
Control type CNC
Control TNC 530 Heidenhain
Storage location FRANCE
Country of origin Germany
Delivery time ON REQUEST
Freight base from location
Technical details
x-travel 600 mm
y-travel 450 mm
z-travel 450 mm
Control TNC 530 Heidenhain
Speed range - main spindle 16000 min/-1
Drive power - main spindle 7 / 9 kW
Tool holder SK 40
Spindle bearing diameter 70 mm
Displacement measuring system direct
Resolution 0.001 mm
Table clamping surface Ø 280 mm
table load 250 kg
Swivel range +/- 110 °
rotatable 360000 °
Number of tool positions 30 pos.
tool diameter 80 (125) mm
Changeover time chip - chip 5.5 sec
Rapid traverse ( X / Y / Z ) 35 / 35 / 35 m/min
Feed speed 1 - 30,000 mm/min
Feed force 6 kN
Total power requirement 30 kVA
Machine weight approx. 6.5 t
Space requirement approx. 3.5 x 3.5 x 2.8 m
Accessories
Documentation
Coolant device
Hydraulic unit
Probes
electr. Handwheel
Tool changer 30 pos.
Information
5 Axis CNC Machining Center Universal
HERMLE - C 600 U
TNC 530 MAGAZINE 30X
SK 16000 RPM
BUTTON HEIDENHAIN
SPAENEFOERDERER
France
