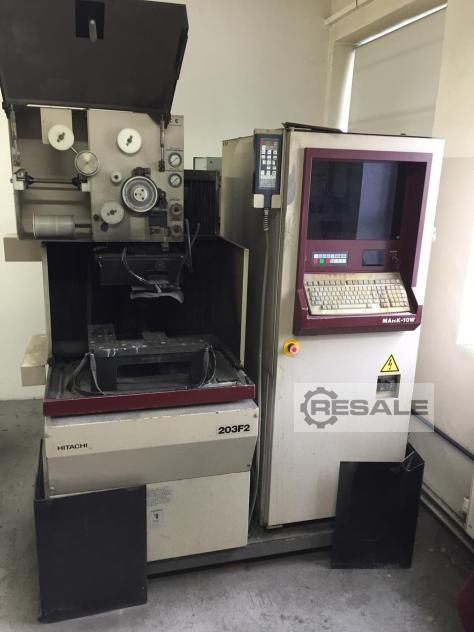

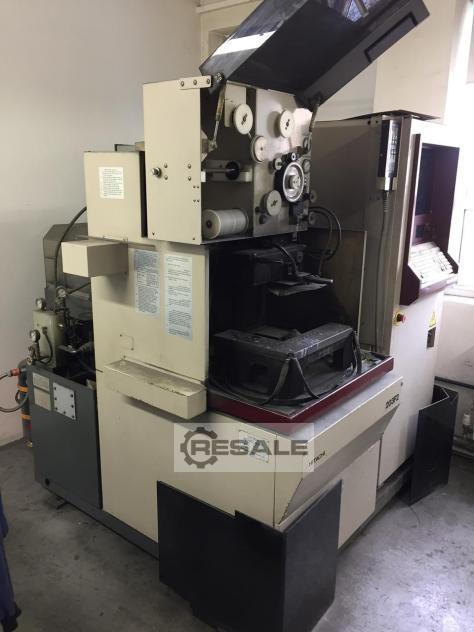

EDM Machines HITACHI 03 F2

metal working machines / other metal working machines / EDM Machines

Manufacturer: HITACHI

Model:03 F2

Type of machine: EDM Machines

item-No.: 162698324

Quantity: 0

Date: 23.08.2024

Year of manufacture: 2000

Location: Land-cz Czech Republic 60200 Brno

Price:


Seller-item-No.:7688

Inv. Num. : 7688
Type: 203 F2
Producer: HITACHI
Generated: 2000
Parameters:
Control System: MARK-10W
Max. travel length of the X-axis: 320 mm
Max. travel length of the Y-axis: 250 mm
Max. travel length of the Z-axis: 170 mm
Feed length in U-axis (-): 20 mm
Feed length in the V-axis ( -): 20 mm
Maximum wire thickness: 0.25 mm
Dielectric container capacity: 160 l
Max. workpiece dimensions: 450 x 350 x 170 mm
Max. workpiece weight: 200 kg
Machine height: 1880 mm
Machine length: 1525 mm
Machine width: 1810 mm
Machine weight: 1500 kg
