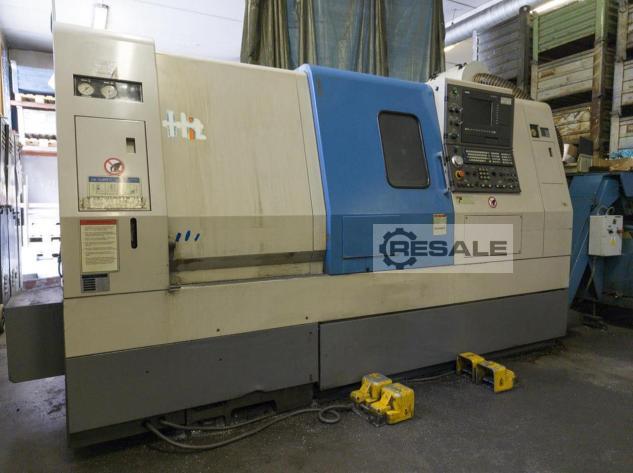

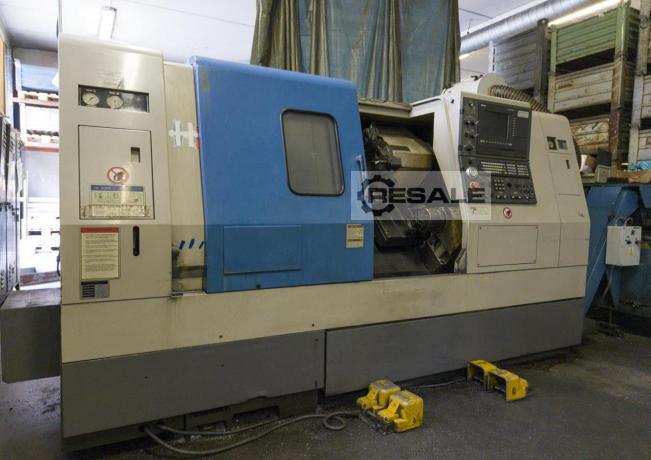

CNC Turning Machines HYUNDAI HIT-250 MS

metal working machines / lathes / CNC Turning Machines

Manufacturer: HYUNDAI

Model:HIT-250 MS

Type of machine: CNC Turning Machines

item-No.: 160101285

Quantity: 0

Date: 24.10.2023

Year of manufacture: 2004

Location: Land-cz Czech Republic 60200 Brno

Price:


Seller-item-No.:6238

Inv. Num. : 6238
Type: HIT-250 MS
Producer: HYUNDAI
Created: 2004
Parameters:

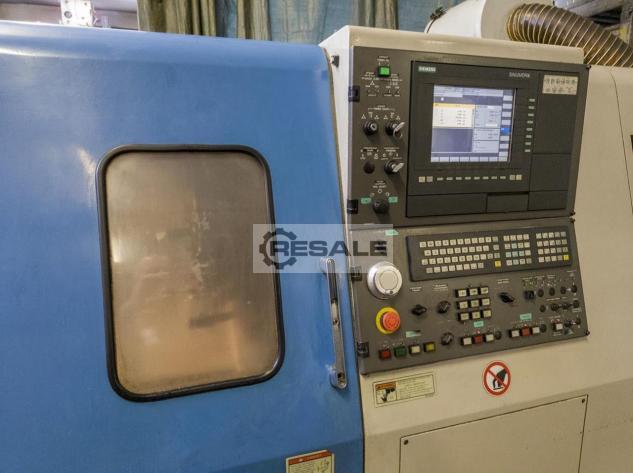

Control system: Siemens Sinumerik 840D
turning length: 650 mm
turning diameter: 390 mm
Maximum turning diameter over bed: 590 mm
Maximum spindle speed: 3600 1/min
Maximum main spindle power: 15 kW
Spindle passage: 80 mm
Number of all tools: 12 pieces
Number of driven tools in the turret head: 12 pieces
Chuck diameter: 250 mm
Axis X: 265 mm
Axis Z: 660 mm
Clamping diameter (counter spindle): 160 mm
Spindle passage (counter spindle): 50 mm
speed (counter spindle): 4500 1/min
Length: 3692 mm
Width: 1850 mm
Height: 1850 mm
Weight: 6450 kg
Equipment:
C-axis
Technical documentation
Conveyor
Driven tools
2x 3-jaw chuck
Cooling
Complete coverage of the work area
Oil mist separators
Housing for clamping rotary knives and cases (8 pcs.)
