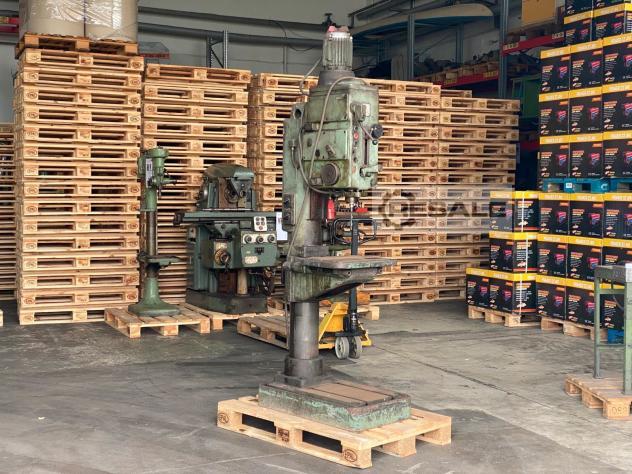

Solid Inratirea Column Drilling Machine, Type G-16
Ready to use.
technically flawless, except for the cover of the motor fan
(Replacement can be provided with purchase)
Details:
Machine Type: Column Drilling Machine
Make: Infratirea
Type: G16
Year of construction: 1975
Control Type: Conventional
Country of origin: Romania
Freight base: from the Neubrandenburg location, freely loaded
Location: 17034 Neubrandenburg
Price: € 1650,00 net
Technical details
Drilling capacity in steel (diameter): 16 mm
Projection: 275 mm
Drilling stroke: 160 mm

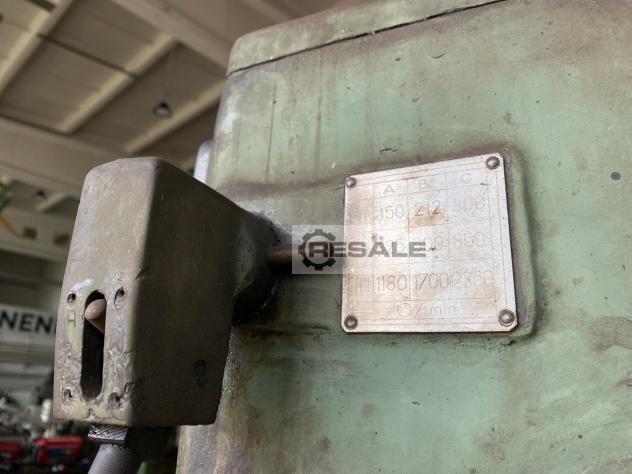

Spindle speeds - infinitely variable:
150 - 2360 / 9 step rpm
Spindle holder MK: 3
Distance spindle/table max.: max: 580 / min: 100 mm
Feed rate: 0.10 - 0.16 - 0.25 - 0.40 mm/rev
Table clamping surface: 300 x 400 mm
Table adjustable: vertical 360 mm
Table swivel approx.: rotatable 360°
Clamping surface of the base plate: 500 x 400 mm
Total power requirement: 1.65 kW
Machine weight approx.: 650 kg
Machine dimensions approx. LxWxH: 1.0 x 0.6 x 2.3 m
Transport dimensions LxWxH: 0.9 x 0.5 x 2.25 m
Information
- Spindle can be switched right and left
-Tapping
The machine can be viewed at any time.
On-site loading can be easily carried out with a forklift.
Transport possible throughout Europe via freight forwarder.
