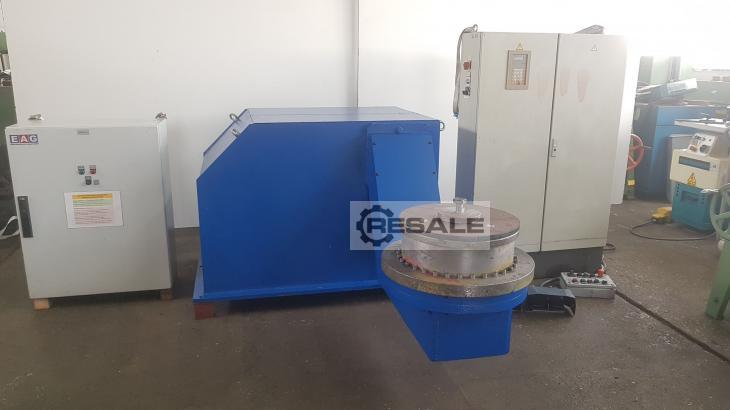

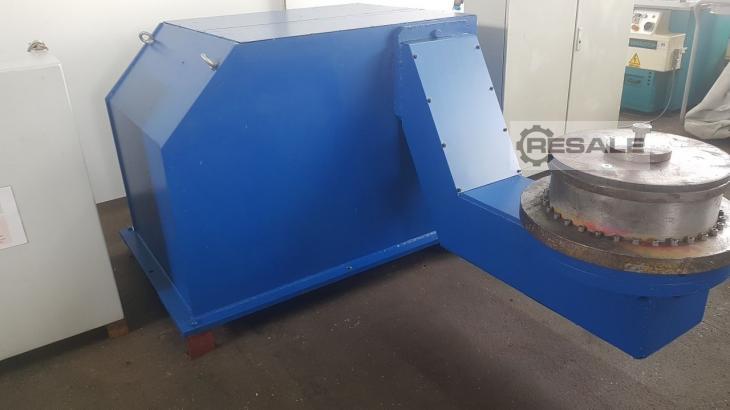

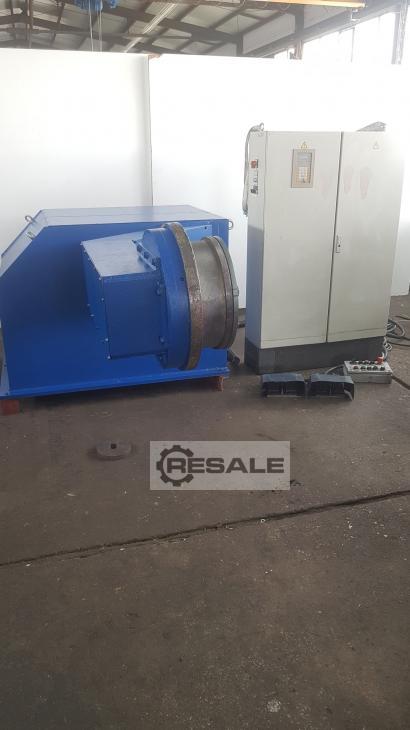

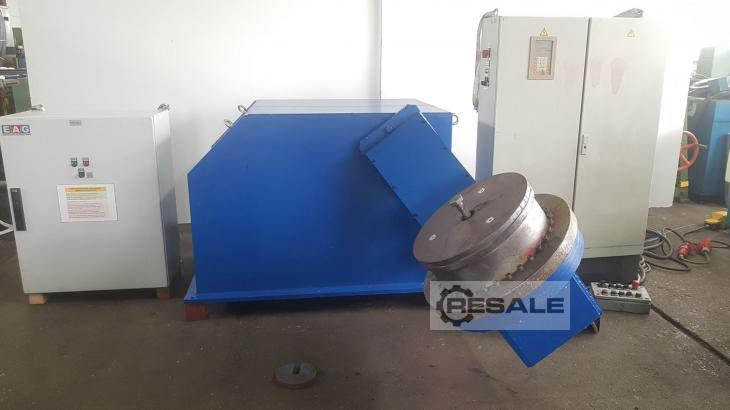

specifications:
- Load capacity Positioning table approx. 750 kg
- Sheet plate diameter 500 mm
- max workpiece diameter 1600 mm
- Height turntable at horizontal position approx. 750 mm
- Turntable with right, + left-hand run
- Rotary axis turntable endless 360°
- Turning time per revolution 12.5 sec.
- Pan left + right
- Pivot axis rotation angle 180°
- Swivel time for 180° swivel angle 10 sec.

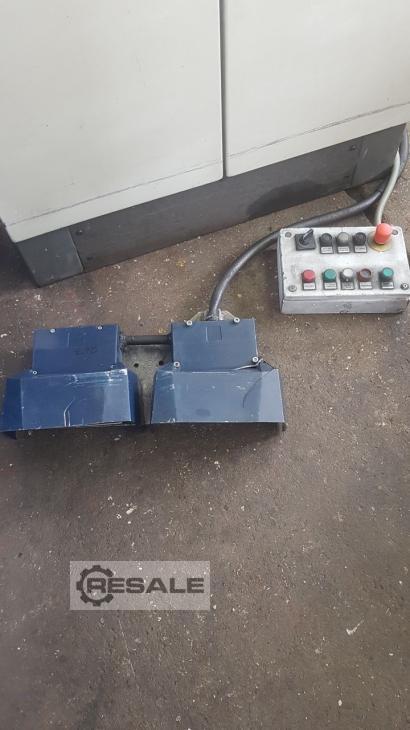

- 2 x double foot button for turntable + swivel arm
- hydr. Clamping bolts for clamping the workpiece in the centre of the
turntable
- Clamping stroke / clamping distance of the clamping bolt 32 mm
- Clamping force pressing / pulling 80 / 48.9 kN
- Clamping cylinder internal thread M 27 x 40
- Positioning control SIEMENS

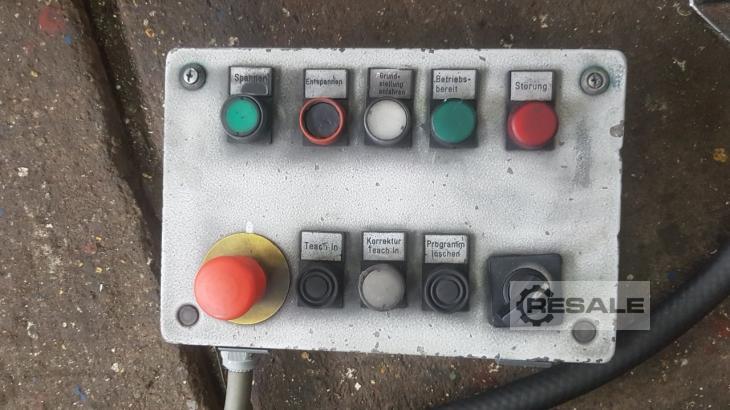

- Operation manually or via control
- Space requirement approx. W 1500 x D 2800 x H 1100
mm
- Weight approx. 2500 kg

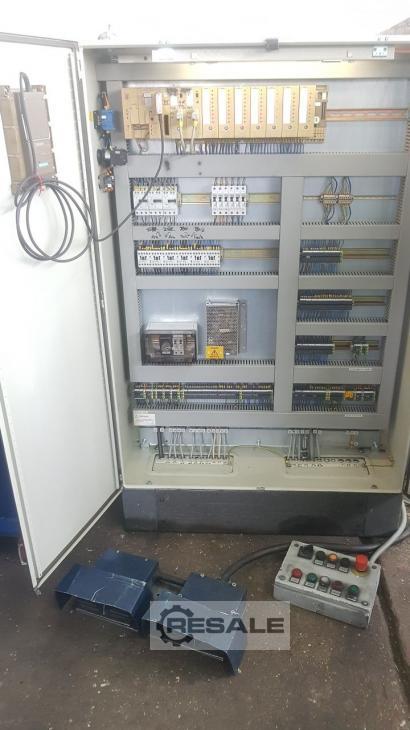

- separate control cabinet with high-frequency device for
- High-frequency tools
