Adsorption dryer KAESER COBURG DC 75 E 6-16 bar

compressed air technology / compressed air dryers


request photos
add to watchlist
send inquiry
print view
item-No.: 162729794 Quantity: 0 Date: 05.03.2025
Year of manufacture: 2016
Price: 1,990 EUR
Manufacturer: Kaeser Coburg
Model: DC 75 E 6-16 bar
Type of machine: Adsorption dryer
Description: Adsorption dryer Kaeser Coburg DC 75 E 6-16 bar

used machine

We offer

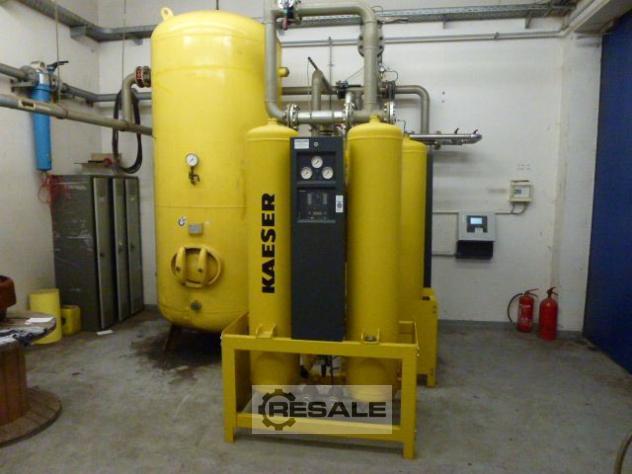

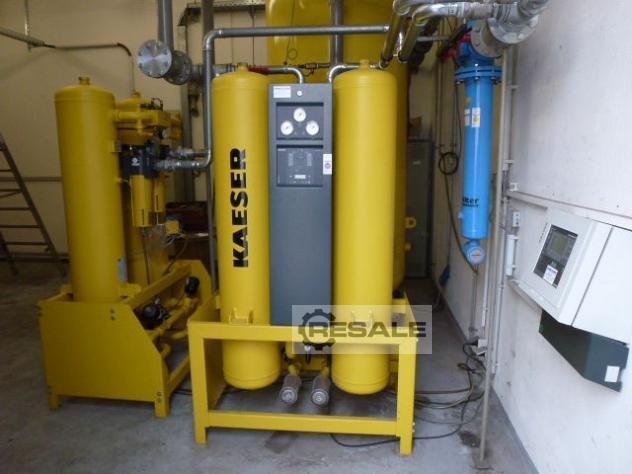

Adsorption dryer 2 Kaeser DC 75 E Bj. 2016 6-16 bar Bid 1-3

The system is part of a compressed air system in a production hall. It is used built in 2016, and fully functional, in very good condition and is offered - due to restructuring of the use of the hall at our customer.

The display will continue to be updated

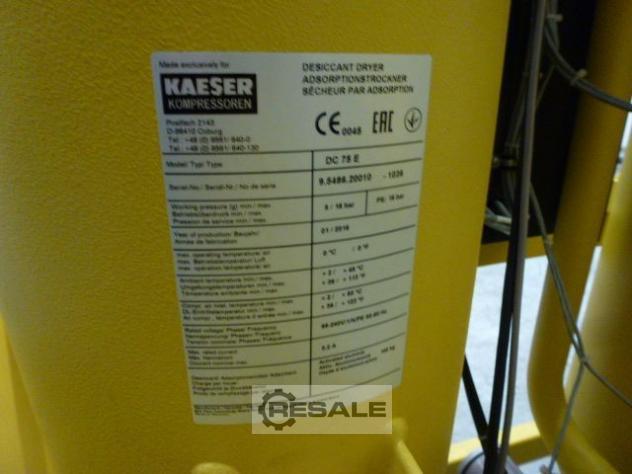

specifications:
- Manufacturer: Kaeser Coburg
- Model: Adsorption Dryer DC 75

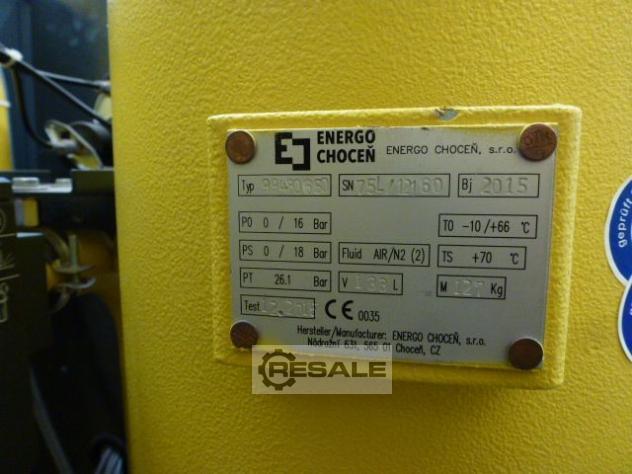

with 2 desiccant containers Bj:2015
- Volume: 133 l
- Filling weight: 100 kg
- Adsorption center: Activated aluminum oxide Al2O2g
- P0 & PS 0/16 bar
- TO -10/+66 °C
- TS +70°C
- PT 26.1 bar

- Year of construction: 2016
- Machine No.: 9,5486,20010-1038
- Operating hours: 5700 estimated based on compressor hours
- Max operating temperature air: 0° C
- Ambient temperature 2-45°C
- DL entry temperature min/max +2 / +50 °C
- Volume flow at 20°C compressed air suction temperature and 1bar abs. 450m³/h / 7.5 m³/min
- Pressure dew point -40°C
- Connection: 240V 1N /PE50 Hz 0.2A
- TüV.: still available
- Dimensions: 2000 x 1200 x 800 mm
- Construction: Clad
- Weight: 504 kg

The machine is still in our customer's factory in Halle all. The sale is ex-works EXW (loading facilities available).

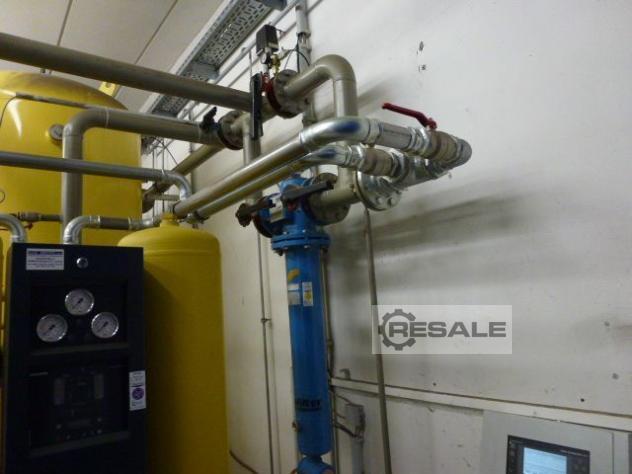

The compressed air system also consists of

Kaeser CS 121 screw compressor sold

Adsorption dryer 1 Kaeser DC 75 E Bj. 2016 15-17 bar Bild 16-17

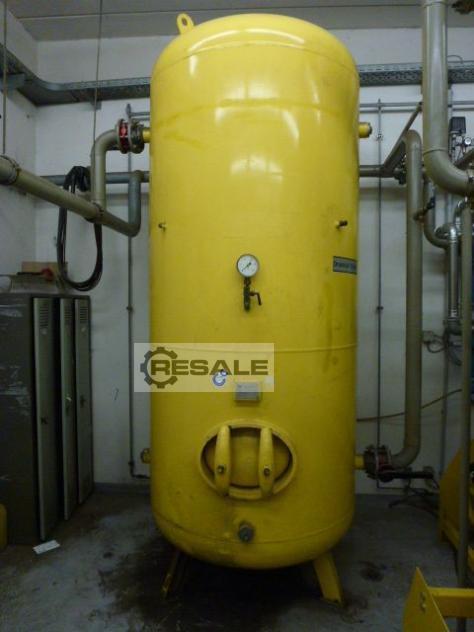

Compressed air tank flamco STAG 3000 l 16 bar Year 1995 704 kg Picture 18-19

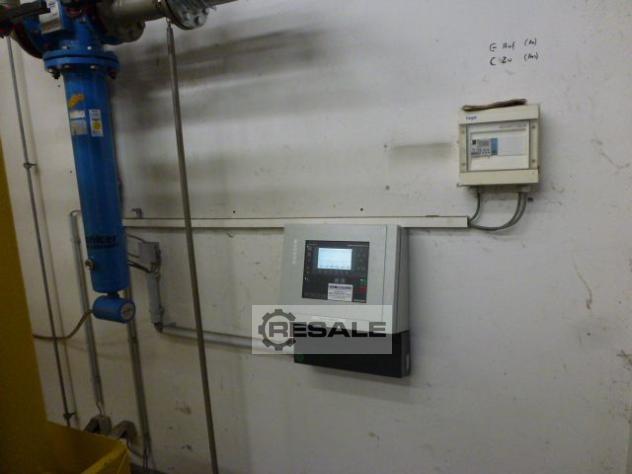

Control system: SIGMA Air Manager Basic Fig. 20

The system will be tendered separately in its entirety and in parts of the compressed air system. The offer is valid as individual components when sold.

Details on other offered systems, machines and articles from various areas can be found in the classifieds at the top right of this page under Ads online

Compressed air technology such as:
-Compressed air system 2x dryer DC 75E see above, compressed air tank flamco STAG 3000 l 16 bar and more.

Refrigeration P759036 technology such as:
chiller chiller chiller Climaserv GFC-F 260kW cooling power

Metalworking such as:
-Vertical machining center AXA VSC 2-3000 SMK + Kalimat 250 l
-Thread cutting machine Hagen & Göbel HG 16 C 12/16

Electrical Engineering Electronics such as:
-Rittal PS 4884 control cabinet from Kaeser CS 121 compressed air system

Fixtures and fittings
-7x Paint mixing bucket agitator tank Drais 300 l rollable

We sell the assets on behalf of our customers. The offer prices are net prices in EURO ex works. The offers are subject to change, subject to errors and subject to any prior sale. In this context, we expressly refer to our terms and conditions. We would also like to point out that we expressly exclude a return, a guarantee and a warranty with regard to the assets offered through us.

seller offer No. resale 162729794
