vacuum metalizer KOLZER PVD

metal working machines / sheet metal working

Manufacturer: KOLZER

Model:PVD

Type of machine: vacuum metalizer

item-No.: 162722511

Quantity: 0

Date: 29.01.2025

Year of manufacture: 2019

Location: Land-pl Poland

Price:


Seller-item-No.:A00036-002

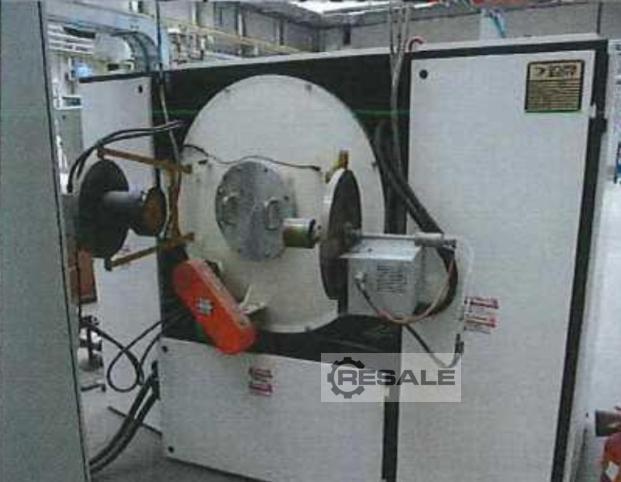

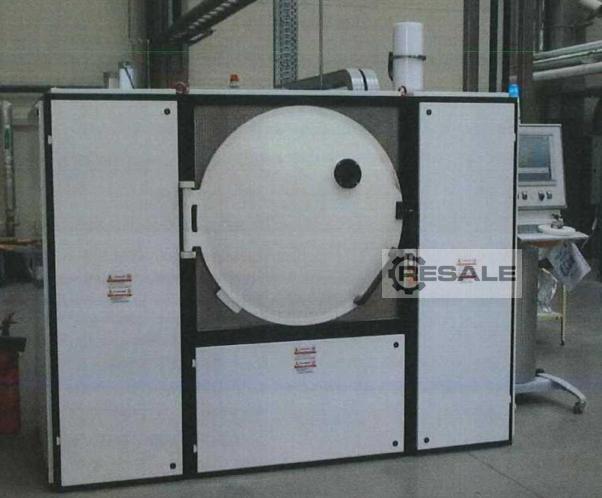

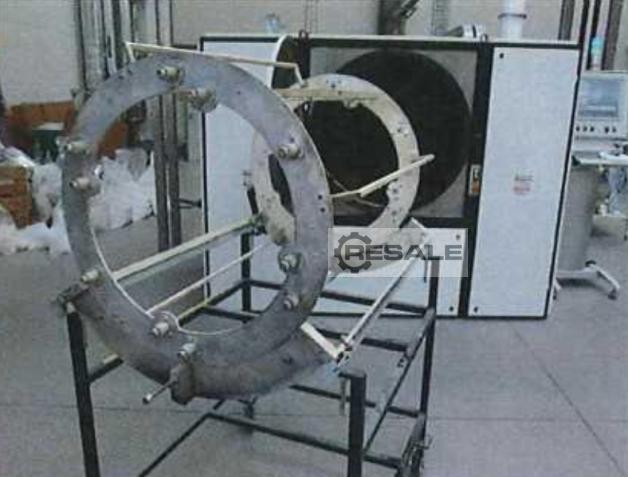

Used vacuum coating machine - vacuum metalizer.

PVD vacuum coating system
Manufacturer: KOLZER
Year of production: 2019

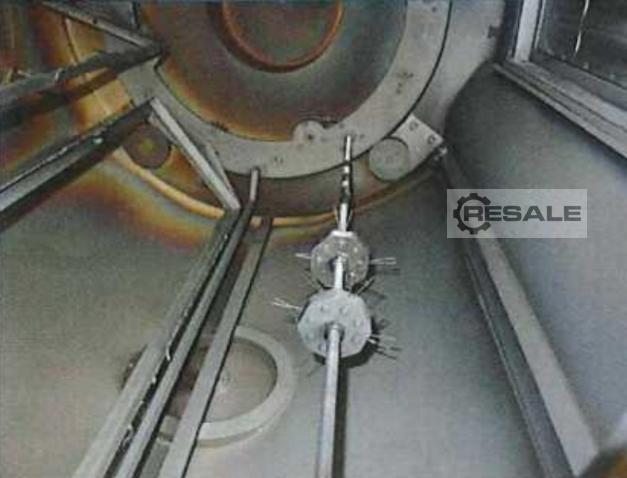

Chamber dimensions: Inner diameter - 1000mm.
Centrifugal pump for swinging pistons: Motor power - 5.5kW
Roots cam centrifugal pump - 2000m3/h, Motor power - 5.5kW
2 five-stage diffusion pumps KOLZER with a capacity of each - 5000 l/sec,
Heating power of each - 4kW, Warm-up time - 30min, Water consumption - 8 l/min, Silicone fluid 702 cad. - 1.5L,
PVD source: 100x120mm PVD generator power: DC20 kW Plasma systems: ACMF and PECVD Automation system: Industry 4.0 Ready
Total installed power: 44.75 kW Power supply: 400V
Air pressure: Max 6bar Weight 3000kg
Dimensions: 2560x1700x2200mm
Share this machine on Facebook:

Inquiry

Machinery dealer?

Please remit optionally

Send wanted inquiry?

Copy to you?

Save input data

Used vacuum coating machine - vacuum metalizer.

PVD vacuum coating system
Manufacturer: KOLZER
Year of production: 2019
Chamber dimensions: Inner diameter - 1000mm.
Centrifugal pump for swinging pistons: Motor power - 5.5kW
Roots cam centrifugal pump - 2000m3/h, Motor power - 5.5kW
2 five-stage diffusion pumps KOLZER with a capacity of each - 5000 l/sec,
Heating power of each - 4kW, Warm-up time - 30min, Water consumption - 8 l/min, Silicone fluid 702 cad. - 1.5L,
PVD source: 100x120mm PVD generator power: DC20 kW Plasma systems: ACMF and PECVD Automation system: Industry 4.0 Ready
Total installed power: 44.75 kW Power supply: 400V
Air pressure: Max 6bar Weight 3000kg
Dimensions: 2560x1700x2200mm
seller offer No. resale A00036-002
