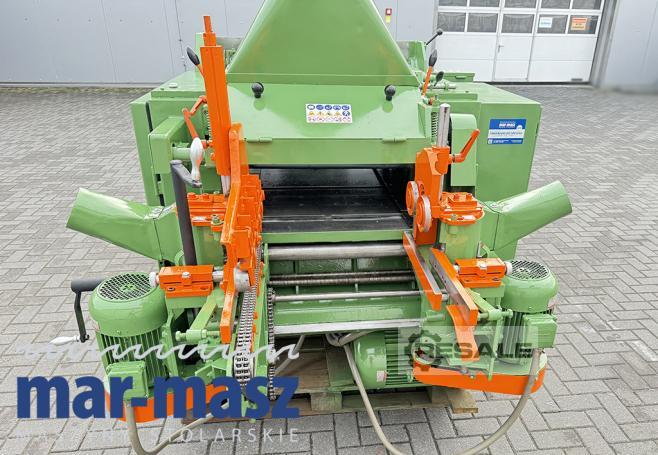

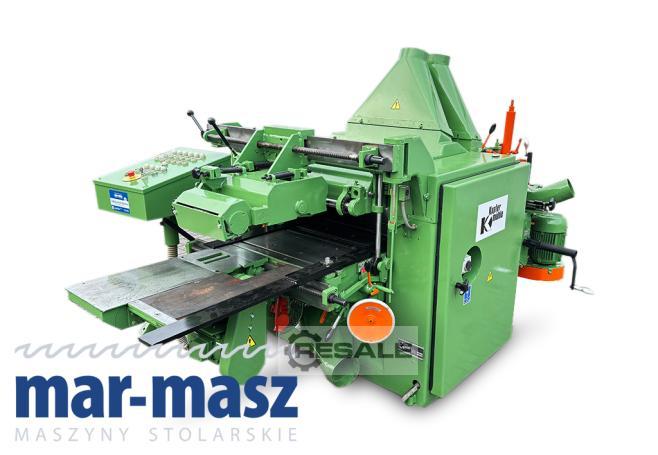

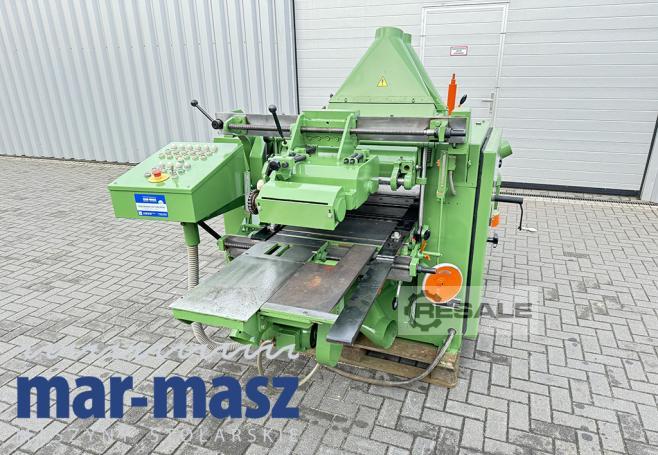

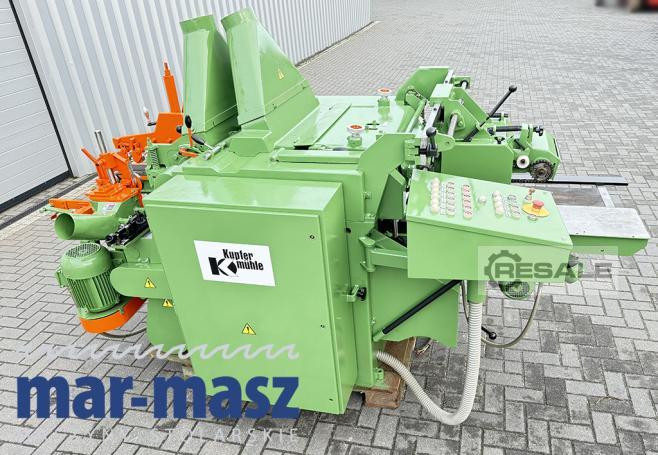

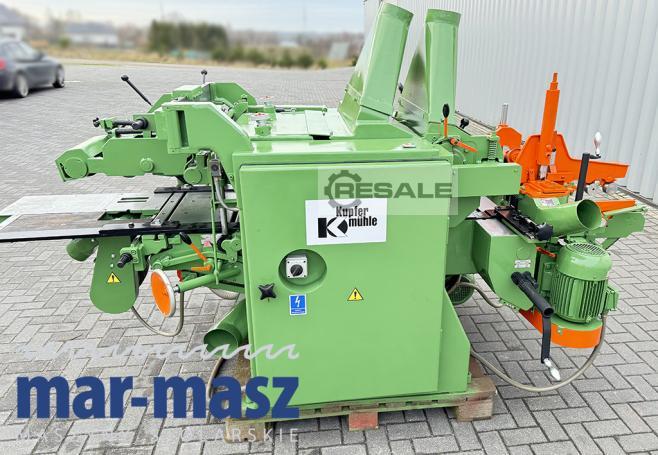

Four-sided planing machines KUPFERMUHLE 60

wood working machines / planing machines / Four-sided planing machines

Manufacturer: KUPFERMUHLE

Model:60

Type of machine: Four-sided planing machines

item-No.: 162720502

Quantity: 0

Date: 17.02.2025

Year of manufacture:

Location: Land-pl Poland 83-34 Sierakowice

Price: 15,558 EUR

Machine in stock:Yes

Seller-item-No.:7503

PART NUMBER: 7503

SPECIFICATIONS:
- max planing width 610mm
- max planing height on both sides 200mm
- max planing height on four sides 100mm
in advance:
- 2 rubber pull rollers
- 2 toothed pulling rollers
- metal pulling roller
- Pulling insertion shaft, toothed
-Triggers
-Pressure
- pulling shaft, toothed 2 pcs
-Pressure
- planer shaft 610mm, 4-knife 7.5kW
-Pressure
- Pulling roller, smooth, metal
-Pressure
- profiling roller 7.5kW
-Pressure
- rubber pulling roller
From below:
- scoring unit, axle 35mm, axle length 130mm 2.2kW
- guide strip 2 pcs
- Introductory table top
- Pulling shaft, smooth
- planer shaft 610mm, 4-knife (2 knives installed) 7.5kW
- 2 pulling shafts, smooth
- Split metal skid roller
- side pressure
behind:
- Side spindles + clamps 2
- 1) vertical right 95mm 4kW
- 2) vertical left 95mm 4kW
- spindle diameter 35mm
- spindles adjustable up/down, right/left
- adjustable shafts in the bottom table
- Electric planing thickness setting
- 6 types of feed speeds: 7/9/11.5/14/18/23m/min
- feed motor 3.1kW
- extraction spigot diameters 3×120, 3x160mm
- dimensions length/width/height 3150x1900x1600mm
- weight about 3500kg

ADVANTAGES
– the best wide planing machine for wet and dry wood
– ideal for processing logs, underfloor heating, etc.
– additional profiling roller and scoring unit
– produced by the German brand KUPFERMUHLE
– used planer, very good condition

Net price: 66900 PLN
Net price: 15558 EUR depending on the price 4.30 EUR
