LiqoFlux LF6AL22
Liqoflux production system with 6 LiqoCap filter units
Application: Concentration of algae liquid culture
Throughput: approx. 1 m3 / hour per LiqoCap filter unit

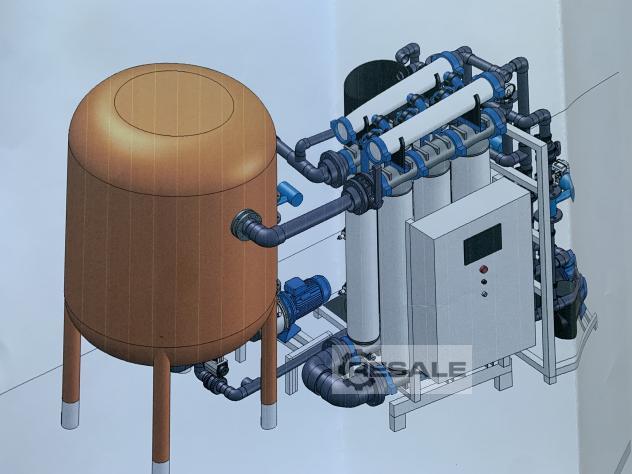

The LiqoFlux LF6AL22 is an ultrafiltration system with a special
application relevance
in the concentration of liquid algae culture, but also beyond. The
system
is based on 6 LiqoCap filter units, which are stored in a fully
automated, PLC
system.
Advantages of the LF6AL22:
• High operational reliability
• Long service life with low maintenance costs
• High chemical tolerance
• Good antifouling properties
• Tolerance to high and low pH values (pH 1 to pH 13)
• Easy to clean
Specifications:

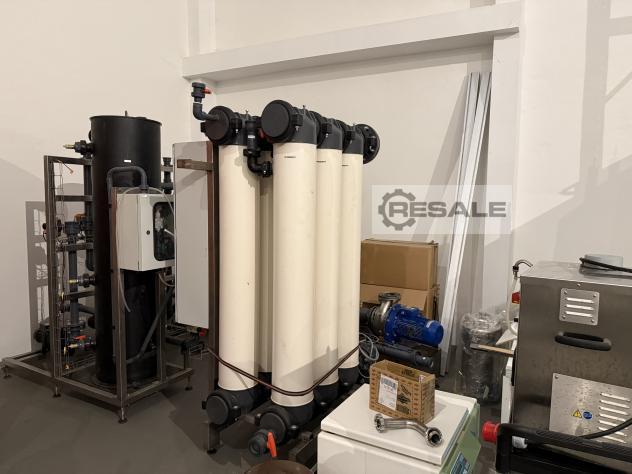

• 6x LiqoCap filter units
• Heavy-duty steel frame with powder coating for chemical stability
• Piping made of PCV-U/PP/PE material with 10 bar pressure
resistance
• 1x Siemens PLC control unit with data logger, touchscreen and
connection
• 1x Algae Application Modified High Throughput Centrifugal
Circulation Pump
with FDA approved ceramic coating on the pump body and
Bronze Impeller
• 1x PE/PP centrifugal feeding pump
• 1x SS316 Backwash Pump
• 1x PE/PP permeate suction pump
• 1x Conical circulation tank 2400 L with antivortex configuration,
with manhole
D600, Material GRP
• 8x Automatic ball valves made of PVC
• 4x pressure indicators and transmitters
• 3x Inductive Flow Meters
• 1x temperature sensor
• Integrated CIP system with chemical dosing unit
LiqoCap Filter Units
Membrane surface: 39 m2
Pore Size: 0.02 μm
Material: PES
