T60C sliding table saw in CE
equipment

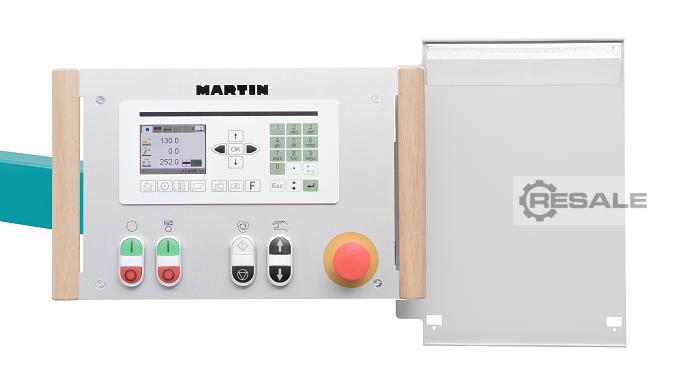

• Control 3.5 in control panel at eye level
included

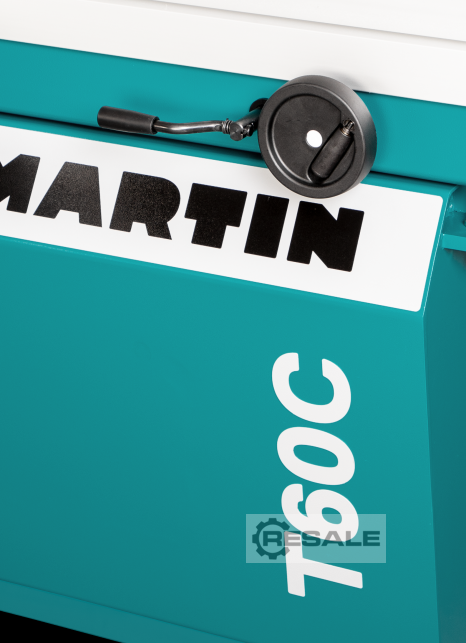

• Handwheel for adjusting the parallel stop from operating position,
digital display included
• Cutting width 1,350 mm
included
Trimming table length 3.3 m
Cutting width 1,350 mm

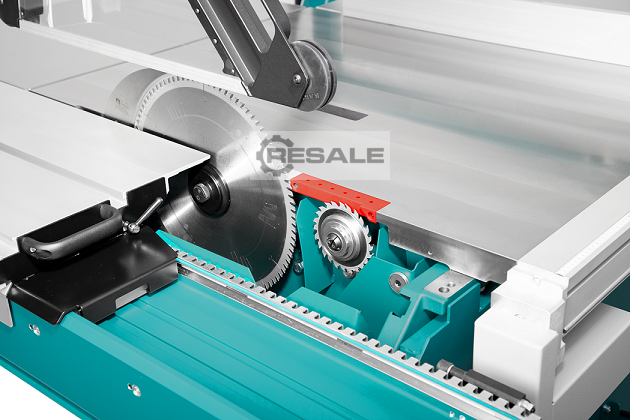

2-axis scoring unit, electric
Scratch position left/right and scratch height can be positioned via
control while the scoring saw is running, electronic display of the
adjustment paths; automatic adjustment of the scoring system to each
main saw blade; Blade change with ProLock; pneumatically liftable /
lowered, separately from the main saw blade can be switched on / off;
0.75 kW (1 hp), speed 11,500 rpm, saw blade Ø 120 mm; supplied
without saw blades
Scorer lighting SafeLight marks the danger zone of the scorer during
operation by means of an attention-enhancing
light.
MitreX double miter stop, with analogue angle display (resolution
0.1°)
Double-sided length compensation for preferred angles (0°, 5°, 10°,
15°, 22.5°, 30°, 45°, 50°, 60° and 67.5°); Delivery incl.
splinter wood for tear-free cuts, also after cracking; Angle
adjustment 1/10°, with magnifying glass; Cutting length 90 – 1,375
mm; easy attachment by one-hand clamping to the trimming table; stable
yet lightweight design made of anodized aluminum; Delivery incl. wall
bracket
Second edition for large plates and as a support when working with the
miter ruler; in combination with T60A55 parallel fence to trimming
table, can be used as a simple parallel cutting
aid
Parallel stop to the trimming table, for mounting on T60A68 second
edition, allows parallel cuts up to 800 mm on the trimming
table
