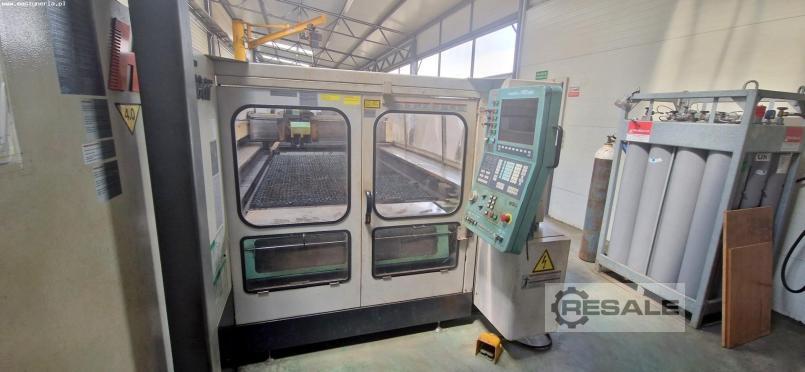

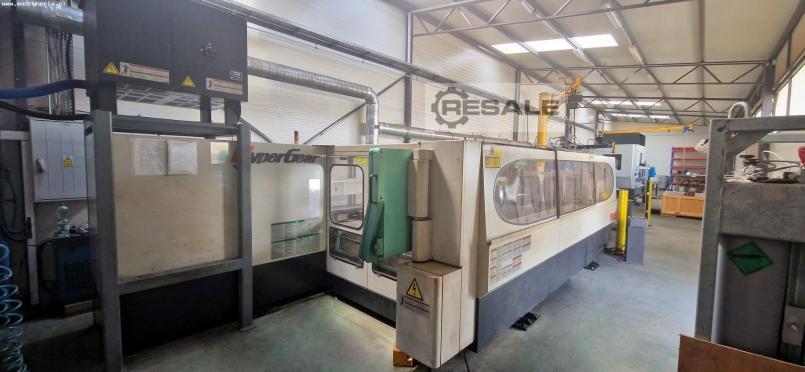

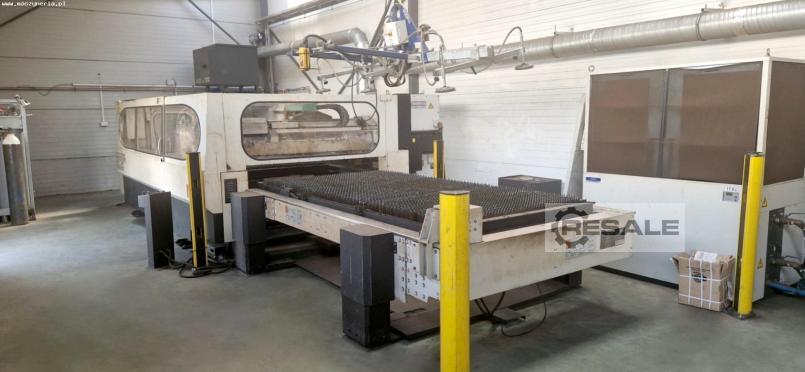

MAZAK HYPER GEAR 510 laser cutting machine manufactured in Japan in
2006, guarantees its user the highest quality laser cutting of
workpieces with a maximum weight of 930 kg. The CO2 laser HYPERGEAR
510 has an indestructible construction made of the highest quality raw
materials with a large working table, which ensures excellent rigidity
and stability during machining. The laser cutting machine is equipped
with a reliable PANASONIC YB-L400A8M5E laser source, which generates a
4 kW laser beam, as well as a large control panel with installed
MAZATROL Preview CNC controller for controlling all machine functions.
The MAZAK laser weighs 14800 kg.
Technical data of the laser cutting machine MAZAK HYPER GEAR 510
- laser power: 4 kW
- work table dimensions (L x W): 3000 x 1500 mm
- feeds in X/Y/Z axis: 3070/1545/100 mm
- maximum sheet metal weight: 930 kg
- maximum sheet metal dimensions (L x W x H): 3050 x 1525 x 25 mm
- laser type: CO2
- operating hours: 36000 h
- laser source weight: 1500 kg
- HYPER GEAR 510 laser weight: 14800 kg
Equipment of laser cutting machine HG510
- CNC control: MAZATROL Preview
- laser source: PANASONIC YB-L400A8M5E
Poland
