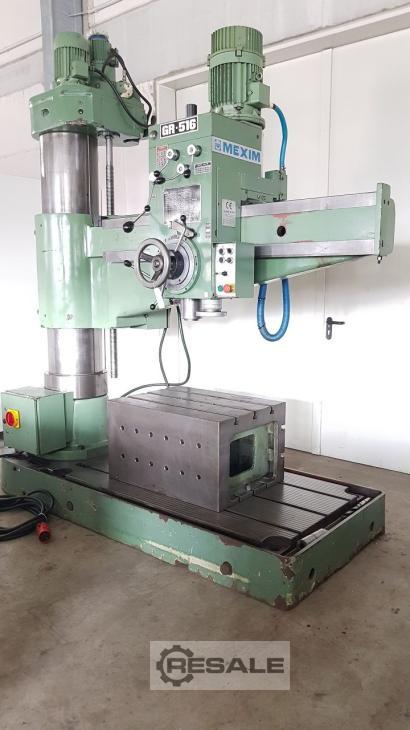

Radial Drilling Machines MEXIM GR 516

Specifications:

- Drilling capacity in steel ST 60 approx. 50 mm
- Thread cutting up to approx. M 50
- Drilling spindle holder MK 5
- Drilling spindle stroke 300 mm
- Radius min. / max. 320 / 1600 mm
- Column diameter 320 mm
- Boom stroke 650 mm
- min / max – distance:
- Spindle – base plate approx. 600 - 1250 mm
- Machined base plate clamping surface approx. 1000 - 1700 mm

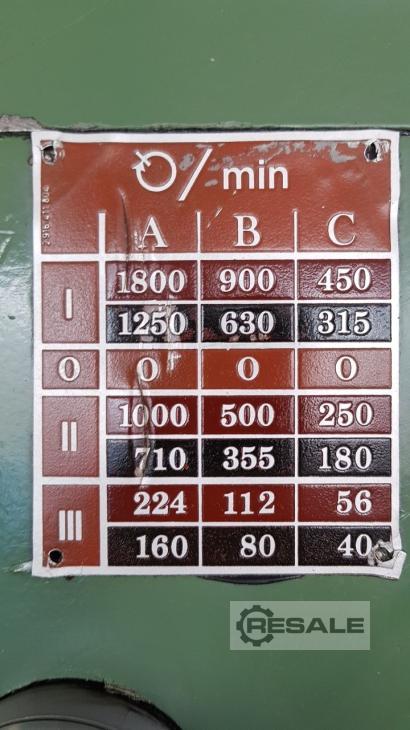

- 18 spindle speeds 40 - 1800 rpm

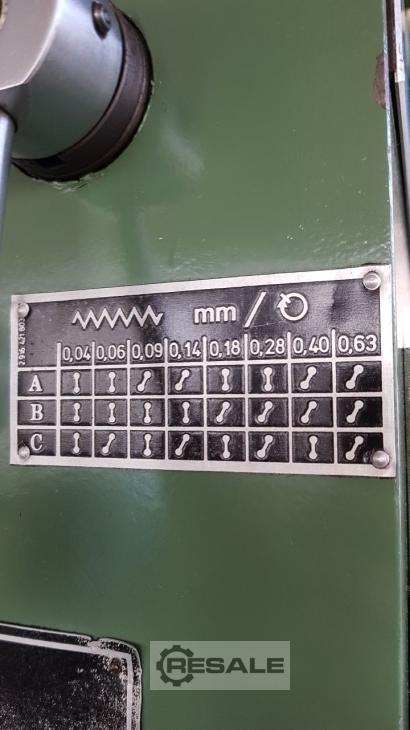

- 8 feeds 0.04 - 0.63 m/rev
- Drilling spindle drive 400 V / 7.5 kW
- E – hydraulic central clamping

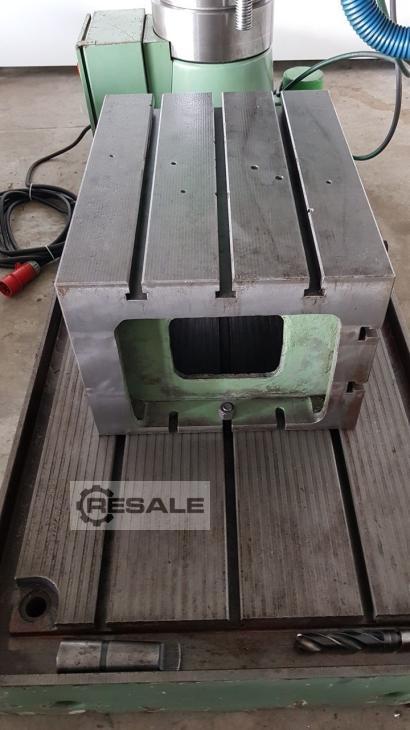

- Cube table with machine vice
- Coolant device
- Space requirement approx. W 2400 x H 2950 x D 1050 mm
- Weight approx. 3500 kg

seller offer No. resale Lg.Nr. 23387
