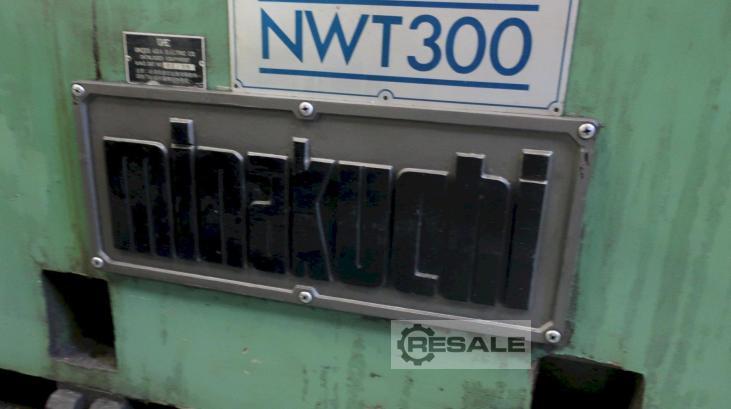

Roll Grinding Machines MINAKUCHI NWT300

metal working machines / grinding machines / Roll Grinding Machines
add to watchlist
send inquiry
print view
item-No.: 162701685 Quantity: 0 Date: 14.08.2024
Year of manufacture: 1990
Price: request quote
Manufacturer: Minakuchi
Model: NWT300
Type of machine: Roll Grinding Machines
Description: Roll Grinding Machines Minakuchi NWT300

used machine

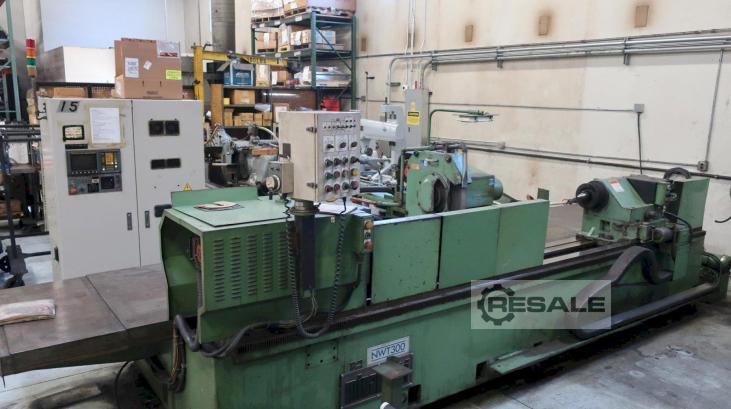

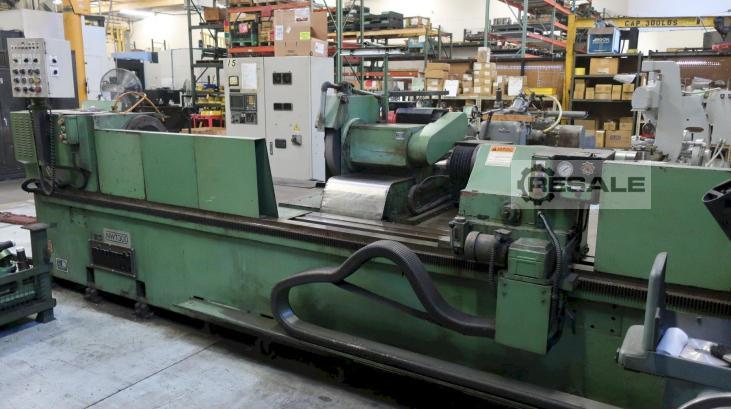

Minakuchi NWT-300 CNC Cylindrical (ROLL) Grinder, I.D. Spindle, Fanuc O-GC, 30HP, New 1990

Machine Overall Capacity: 32 x 120
Swing: 32
Distance Between Centers: 120
Max. Swing over Table: 32
Max. Grinding Diameter: 30
Max. Work Piece Weight: 20000 LBS. Estimate at 32 x 120
Grinding Wheel: 24 x 1.968 x 10
Max. Grinding Wheel Width: 1.968
Spindle Speed: 1410/1530 RPM
Spindle Wheel Motor: 30 HP
Machine Weight: 30000 Lbs. Approximately

Equipped with:

Control: Fanuc Series O-GC (Parameters need to be reloaded)
Fanuc Remote Hand Wheel
Machine control functions: Coolant On/Off Switches, MODE: Off/Auto/Jog/Handle/Zero, Over Ride: 0-150%, Buttons: PRC, HIX, Spindle Inching, OTR on/off Switch, Cycle Start, Spindle Off, RT, Return, Feed Hold, E737227 Grind Off, ZRN, Emergency Stop Button
Taper or Crowning Grinding
Wheel Head Motor
Work Head
Work Rest Supports
Extra Wheel Hub
Tailstock
I.D. Internal Fischer Spindle
Showa Way Lubrication System
Coolant System with Paper Filtration
Manuals
3 crates of accessories come with the machine
