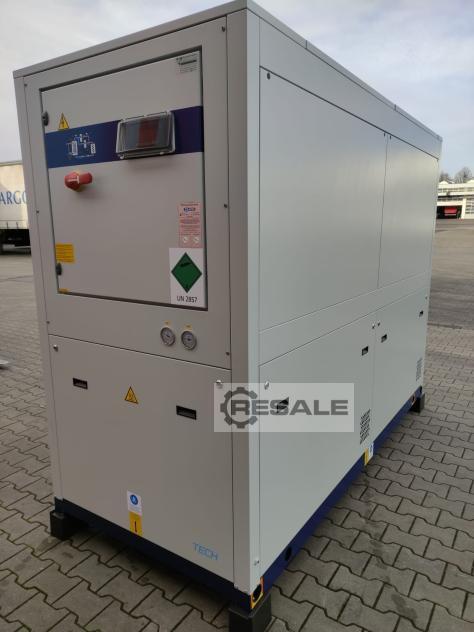

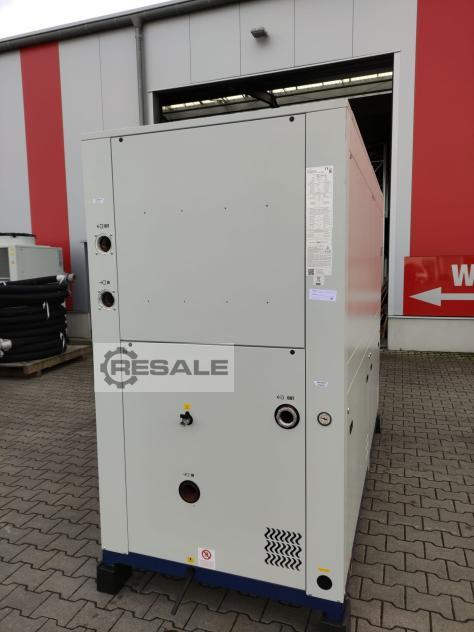

Process water chiller / chiller / chiller water cooled,
Type: TWEevo Tech 381 P3
MTA S.p.A.
TWEevo Tech 381 P3 are air-cooled compact water chillers that are
suitable for outdoor installation (-5°C to +46°C). Including crank
pan heating, phase monitoring, buffer tank 60 ltr., built-in P3
pump.
Cold water outlet temperatures from -10°C to +30°C can be
adjusted.
Cooling capacity kW 72.2 [20.5 tons cooling]
Cold water temp. Exit/Entry (°C): 7 / 12
Volume flow (m³/h) 12.3
Available pump pressure (bar) 3.46
Cooling water temp. Outlet/Entry (°C): 45 / 40
Refrigerant R 410A,
Electrical data:
Voltage V 400, Frequency 50 Hz, Ph 3 phases,
Max. power consumption (kW) 39
Max. current (A) 66
Starting current circuit (A) 234
Protection class: IP54
Dimensions:
Length (mm) 2790, Width (mm) 1150, Height (mm) 2020,
Weight empty / filled (kg) 975 / 1385
Connection Rp 2 1/2
Serial No.: 2200374274
Year of construction 2021
Condition: Optical 2, Technically ok
Used
Price: on request in Euro (plus VAT from Nettetal) – 3 months
warranty
Used machines may have visual defects due to their use.
(Subject to technical changes and prior sale!)
Location: MTA Deutschland GmbH, 41334 Nettetal
Germany
41334 Nettetal
