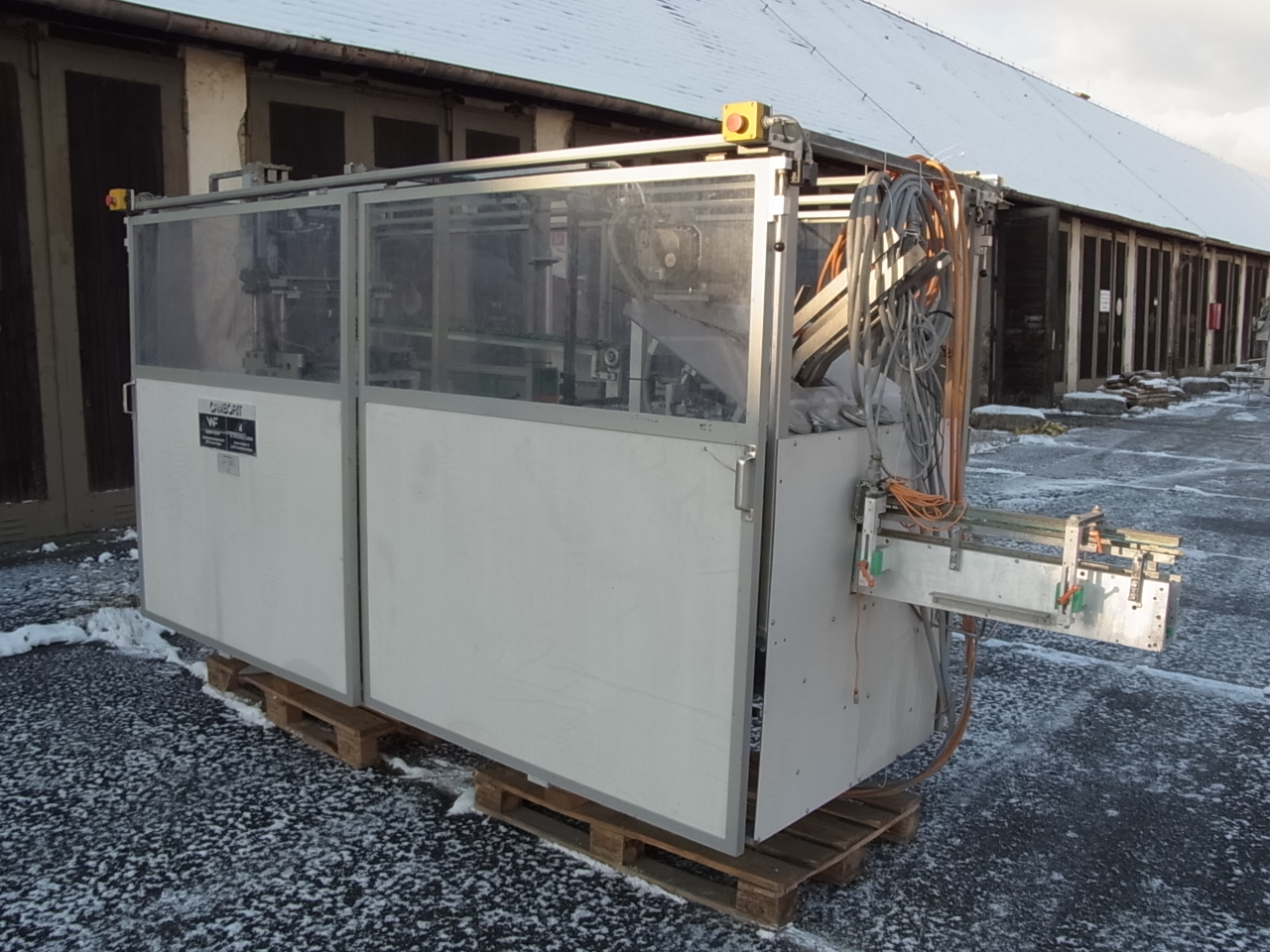

The fishing and packing plants have a simple and this stable and
torsion-free construction.
The machines are characterized by ease of use, flexibility,
reliability and low maintenance requirements.
The CAMBORIT clip has a capacity of up to 125 packs / min.

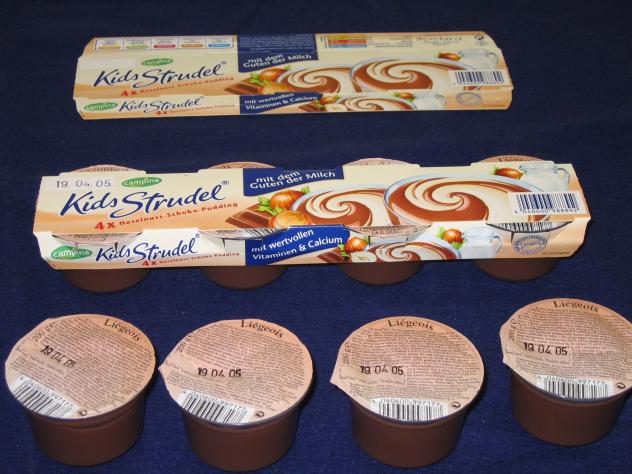

1 x 2 bottles can be packed with the CAMBORIT clip. To do this from
flat so called bars cut to shaped, that get caught under the edge of
the bottle.
The machine can be operated automatically or manually.
Display and operating elements are located on the control panel. All
functions are controlled from the control panel and controlled. Errors
of the cycle are displayed on the control panel.
Action: At the beginning of production the magazine must first cut to
be filled. The minimum level is cut to the magazine below, the machine
will not turn on.
After switching on the machine when existing minimum level of bottles
with a capacity of 75 packs / min. starts. The congestion increases,
so that the maximum level is reached, the machine on an output of 125
packs/min regulates high. The machine adjusts again drops below the
maximum level, again on a capacity of 75 packs / min. down.
Is below the minimum level in the inlet, the drive switches off.
During the operation are from the blanks magazines removed and filed
in fence.

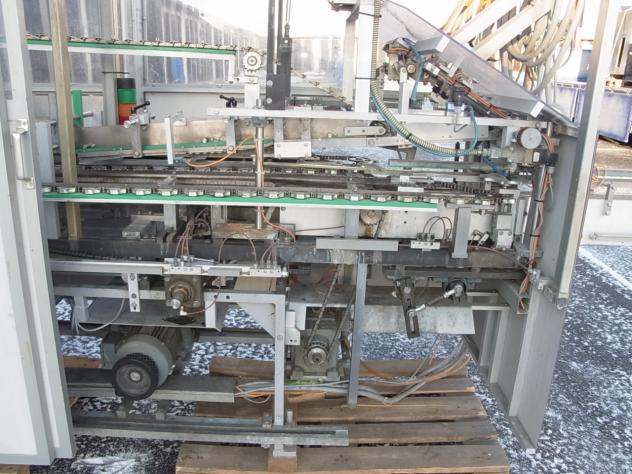

Then the cut fed a cutting chain. This slide cutting through a pre
crushing station and put the pre broken mounts on two cups.

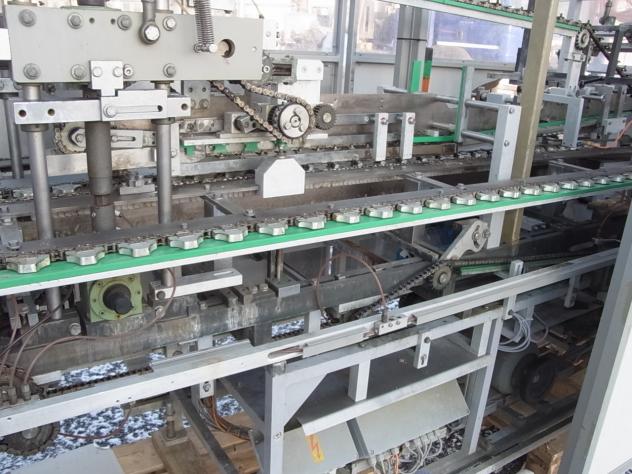

The bottles are collected at the inlet of the machine by a chain of
threading and grouped.
Then the cut using a pressure plate on the bottles down. As a result,
the crop margins under the edges of the cylinder hook.
In addition, it is possible to print a date using a printing plant on
the packs.
The packs, with each two bottles on a delivery conveyor of the machine
be moved to the end of the machine.
Options: Robots and Trayaufrichter (now available) to the Einsezten of
the clustered products in a tray.
Total investment:
Noise level 70 dB(A)
Max. Ambient temperature + 5 ° C to + 50 ° C
Max. Humidity up to 90% (no condensation)
Operating pressure of min. 5 bar / 9 bar Max
Pabs 0,85 bar vacuum pump
Electrics:
Supply voltage 3 x 400 V + N + PE
Supply frequency 50 Hz
Total connected load 6kW
Recommended fuse 3 x 20 A
Electrical equipment: brand products, according to the standard by
Wilhelm Fischer
Pneum. Equipment: Make Festo
Vacuum: vacuum pump Becker
Documentation: Including wiring diagram
Compressed air: 6 bar (dry, oil-free). Humidity up to 90% (no
condensation).
Air consumption: approx. 80 NL / min.
Propulsion: geared motors Fabr. SEW
Machine frame: stainless steel, standing on stainless steel spindles
with dome
Engine parts: Steel nickel-plated or chromed aluminum, plastic, axes,
shafts and screws made of stainless steel,
Control: S5 S95 U, Damien locon 24/360
Inverter: Danfoss VLT
Lubrication: fully automatic oil lubrication for Plummer, chains
etc.
Mechanical parts: brand products, in accordance with standard by
Wilhelm Fischer
Electrical parts: brand products, in accordance with standard by
Wilhelm Fischer
Panel: double-sided sliding doors made of aluminium with polycarbonate
glass
Special safety device:
4 emergency stop switches (2 the front right and left)
1 emergency stop switch on the control panel
Safety light barrier and device at the inlet and outlet and
magazine
Start-up: Installation, commissioning and training costs.
Delivery: The delivery time for the machine is approx. 1-2 weeks after
technical clarification.
Freight and packing stock Dellbrück:
from 1.000,-net
Format adjustment and safety adjustment (as of 2012) of the plant:
on request
Optional: fitting insertion robot, Trayaufrichter
Germany
