:::SPECIFICATIONS:::

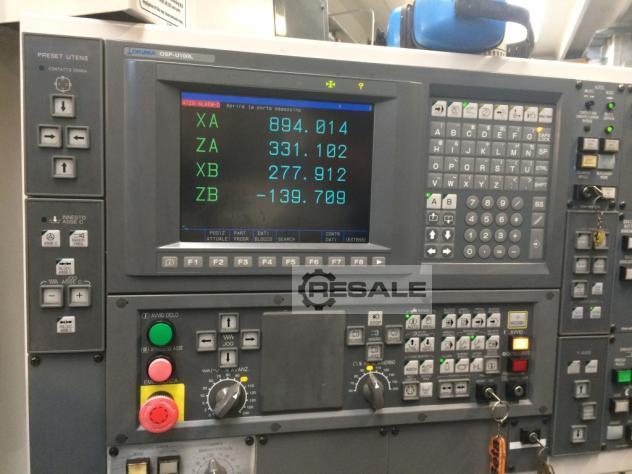

CNC Model: Okuma OSP
CNC version: U100 - L
Spindle nose: ASA 6
Spindle power: 22Kw
Main spindle revolutions: 5000
Turning diameter: 630mm
Bar clearance: 51mm
Turning length: 1170mm
Number of tools: 44
Tool connection: HSK 63
Spindle power: 7,7Kw
Number of spindle revolutions: 6000
X Axis Stroke: 475mm
Y axis stroke: + - 80mm
Z Axis Stroke: 1155mm
Swivel B-axis travel: 0.001degree
Rapid feeds linear axes X Y Z: 40m/min
High cooling pressure: yes
Pressure value: 120bar

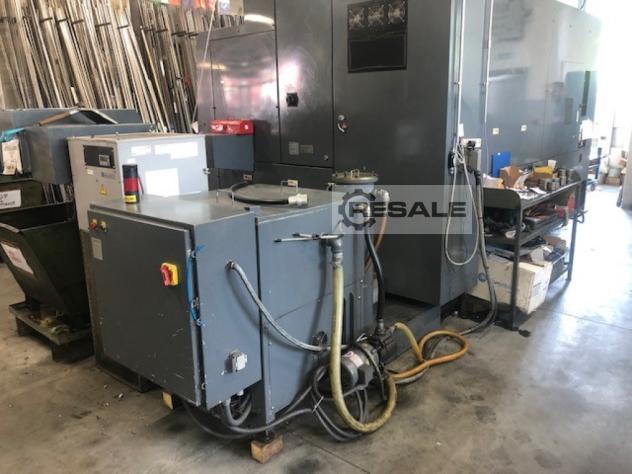

System with external tank with filter: yes
Number of Tool Turrets: 1
Number of tool places before turret: 12
First turret tool attachment type: VDI
Counter-spindle: yes
Number of counter-spindle revolutions: 6000
Counterspindle power: 22Kw
Bar clearance: 32mm
Z stroke counterspindle : 1180mm

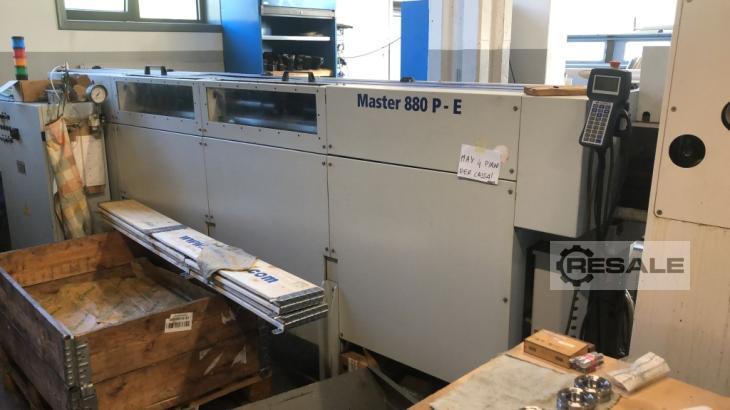

Model and brand bar magazine: Iemca Master 880 flattens
Chip evacuator: carpet
Presetting: yes
Other technical data: retrofittatato in 2007

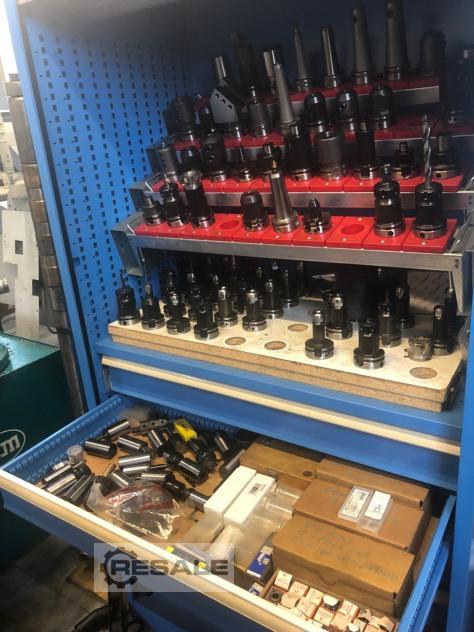

Machine equipment: 70 tool cones
:::D IMENSIONS AND WEIGHT:::
Length: 3900mm
Width: 2550mm
Height: 3000mm
Weight: 15500Kg
Italy
23801 Calolziocorte
