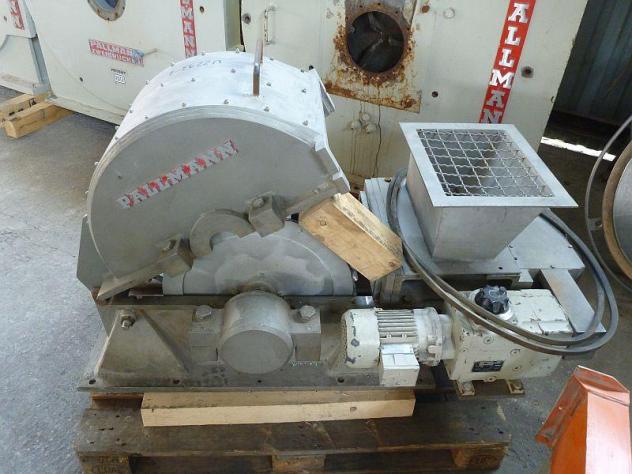

Hammer mill PALLMANN PHM 600-350

process engineering / machines and plants for process engineering / Mills

Manufacturer: PALLMANN

Model:PHM 600-350

Type of machine: Hammer mill

item-No.: 131217575

Quantity: 0

Date: 17.10.2023

Year of manufacture: 1988

Location: Land-pl Poland 05-85 Ozarow Mazowiecki, Wolnosci 1a

Price:


Your price suggestion:

Machine in stock:Yes

Seller-item-No.:U2293-1

Stock# U2293-1

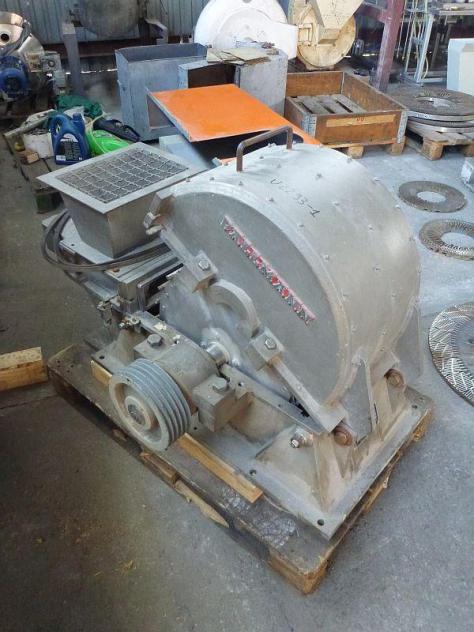

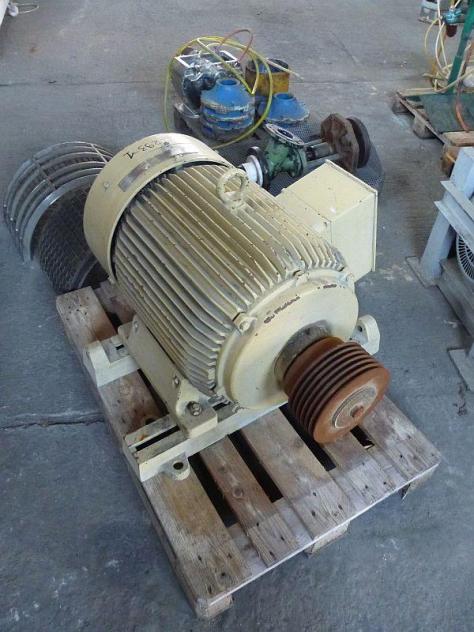

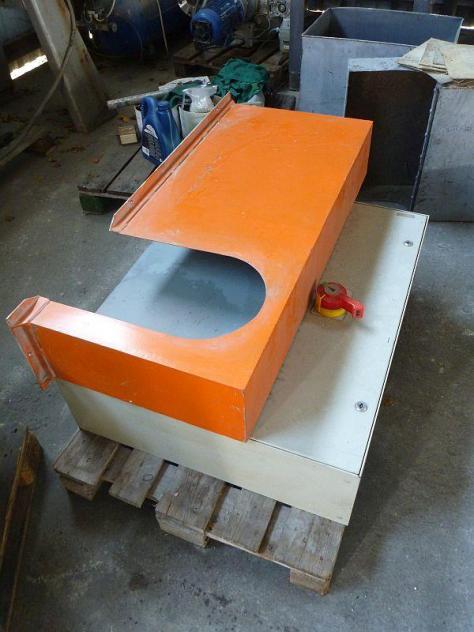

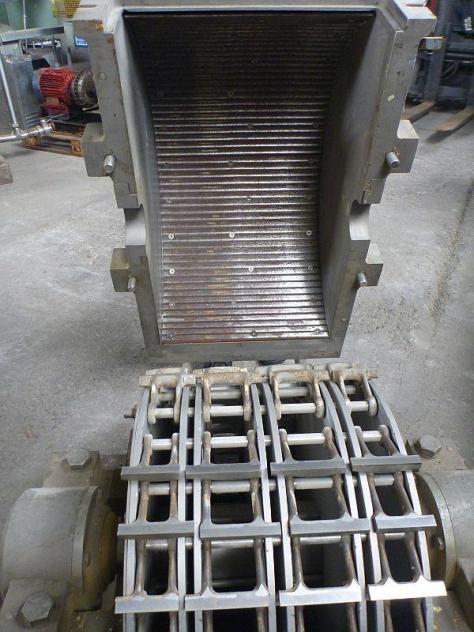

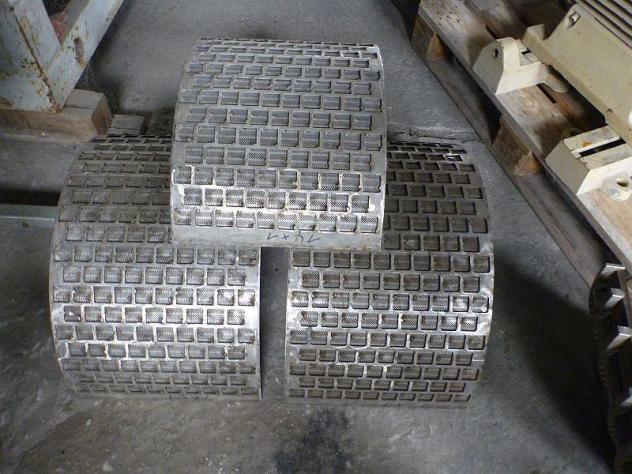

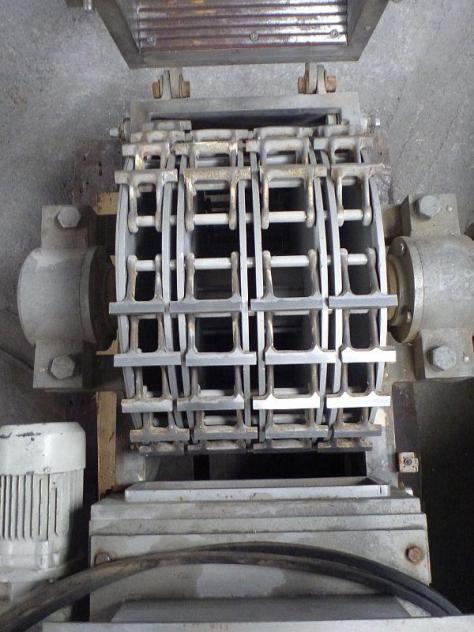

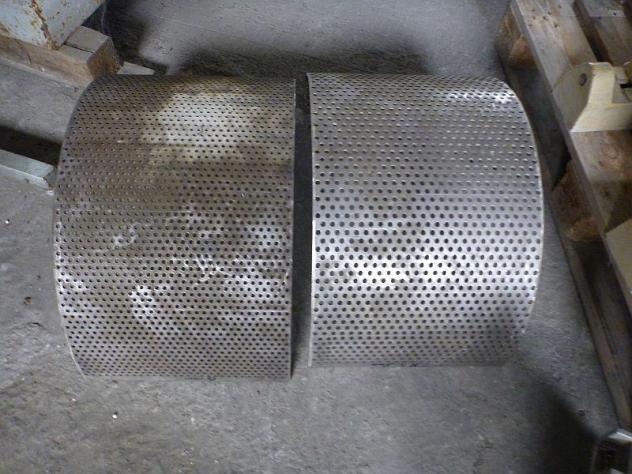

Used stainless steel contact parts horizontal hammer mill by Pallmann (Germany) type PHM 600-350. Mill has internal dimensions of milling chamber L 600 mm x W 350 mm. Top of milling chamber is manually rised. At the bottom mill has a discharge outlet through the screen. At the top of milling chamber there is installed static knife for grinding of product. Rotor has diameter 500 mm x width 345 mm. On the rotor there are 24 rows with hammers, each row consist of 4 hammers. Total number of hammers is 96. Rotor and hammers are designed in non-corrosive steel. Rotor is belt driven by el. motor 75 kW, 2975 rpm, 380/660 V, 50 hz. Mill has side feeding inlet with dimensions 350 mm x 265 mm. Product is moved into milling chamber through three screws. Screws are driven by el. motor 0.55 kW, 2800 rpm, 220/380V, 50 hz and varispeed gearbox with manual adjustment of outgoing rotation. Mill is equipped with electric cabinet, belt cover and set of screens (6 pcs).
