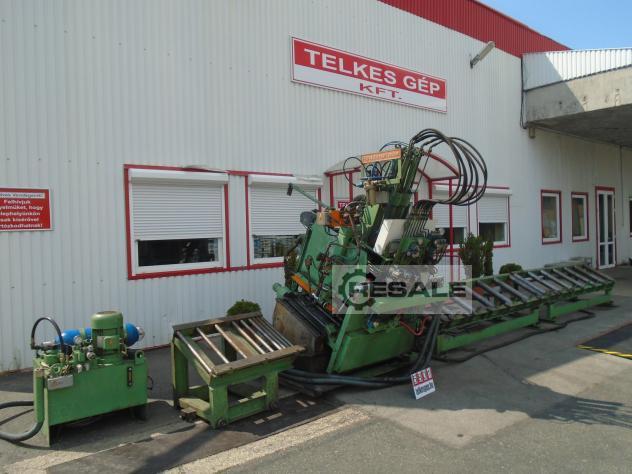

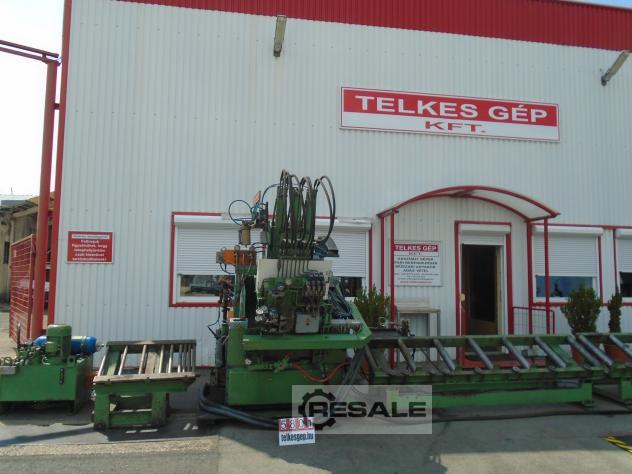

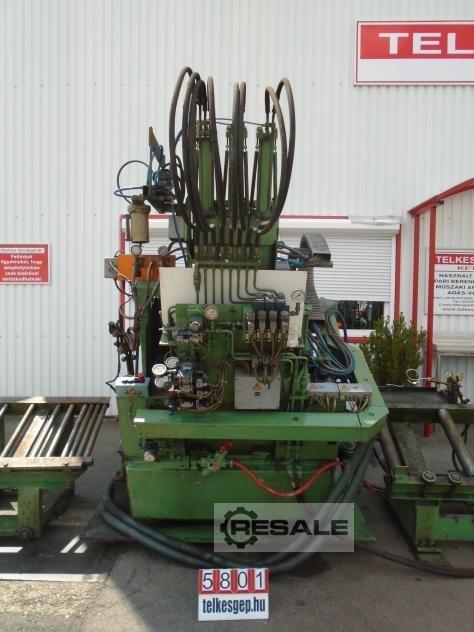

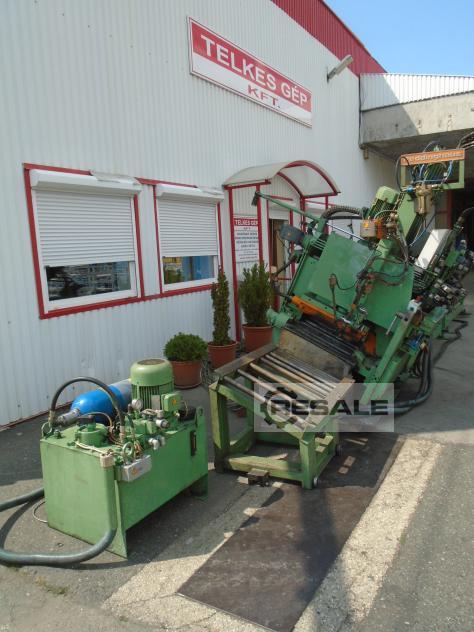

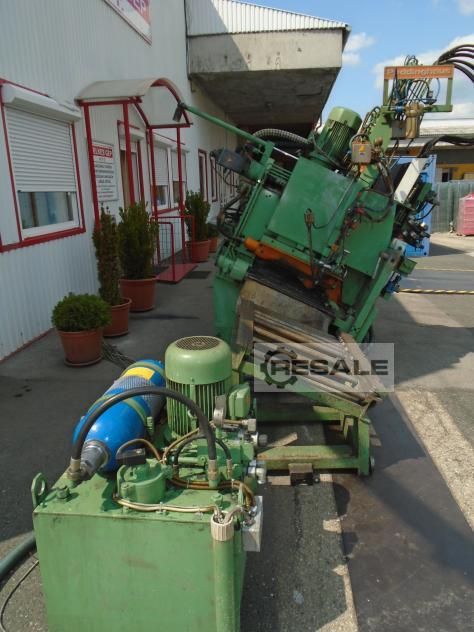

Plate drilling and burning machine PEDDINGHAUS FDB 600

The Peddinghaus FDB 600 plate processor from the Peddimat product range is suitable for automated drilling and oxy-fuel flame cutting of flat steel and steel sheets in steel construction.

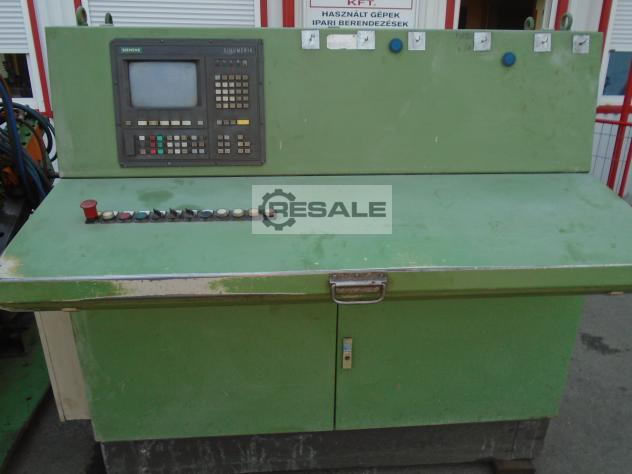

CNC control SIEMENS SINUMERIC
drill diameter: min ø 8, max. ø 40 mm, inner coolant drilling system
Number of drilling agregates:3 pcs.
Cutting system: Autogen burning equipment
total power requirement: 30 kW
max. workpiece height: 600 x 50 x 6000 mm
Min. material size: 80 x 8 mm
sheet thickness - min.:6 mm
sheet thickness - max.:50 mm
dimensions of the machine ca.:2,4 x 2,4 x 2,8 m
Lead roller conveyor: 6 m
Outside roller conveyor: 1 m
weight of the machine ca.: 6,5 t
seller offer No. resale 5801
