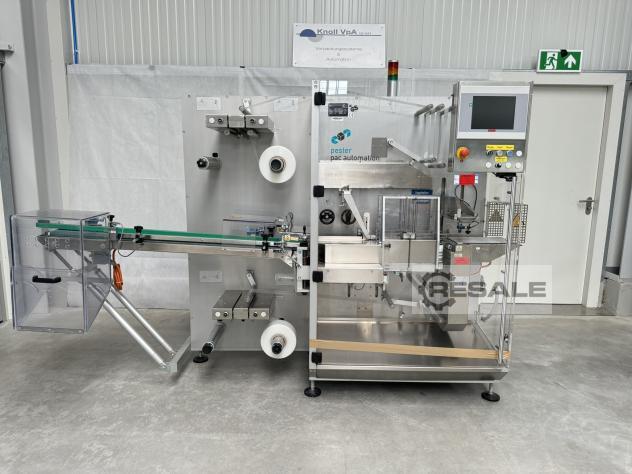

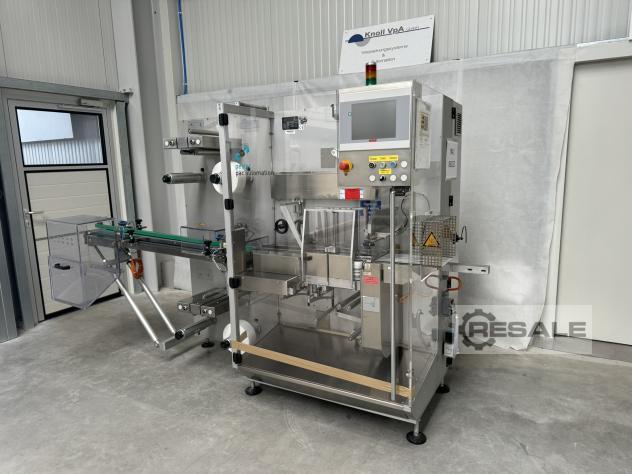

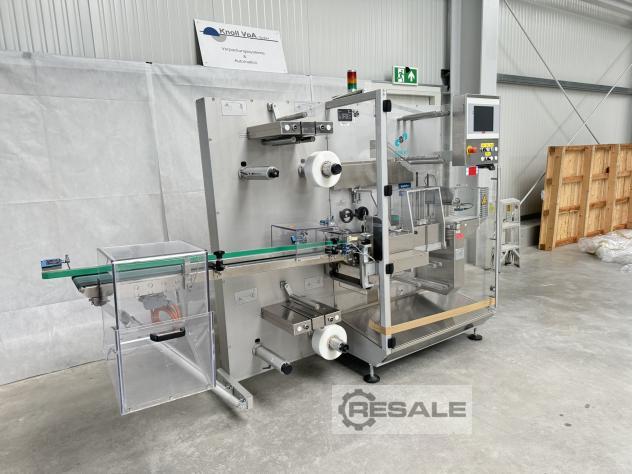

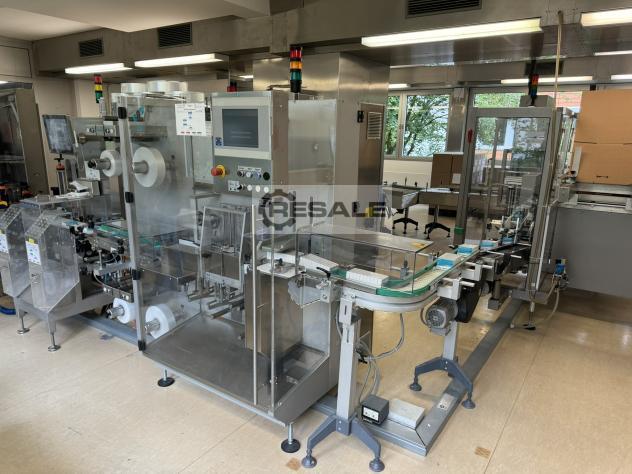

The PEWO Pack 250 compact basic machine includes the following
assemblies:
- Alarm and status display of the machine in plain text format
- Servo technology
- Product-specific control of all servo axes, selectable via recipes
on the HMI
- Film monitoring, advance warning with visual and acoustic indication
as well as machine stop at the end of the film or film tear
- Closing beam driven by servo motor and spa operation
- Pneumatically controlled hold-down device at the outlet
- Height adjustment of locking beam and hold-down device
- Sealing unit
- Low-wear sealing system thanks to Teflon-coated sealing bar with
precise temperature monitoring
- Cylinder monitoring with fault indication on the HMI
- Protection class IP 54
- Product protection, closing area secured by light barrier
- Treadmill shutdown monitoring with automatic restart
- Congestion switch with potential-free contact
- Erection station / reversible esters
Specifications
- Control panel – Type: HMI 10
- ELAU PacDrive control
- Voltage: 3 x 400V+N+PE, 50Hz/60Hz
- Operating side on the right
- Packaging material film: PE flat film
- Pest machine inlet height: 850 mm
- Spout height Pest machine: 900-950 mm
