POLYTYPE BDM 611/ 916 8-Color Printer

printing machines / presses: other

Manufacturer: POLYTYPE

Model:BDM 611/ 916 8-Color Printer

item-No.: 162702482

Quantity: 0

Date: 07.05.2024

Year of manufacture: 1999

Location: Land-de Germany 32130 Enger

Price: price is open to negotiations (ON)


Your price suggestion:

Seller-item-No.:ID582

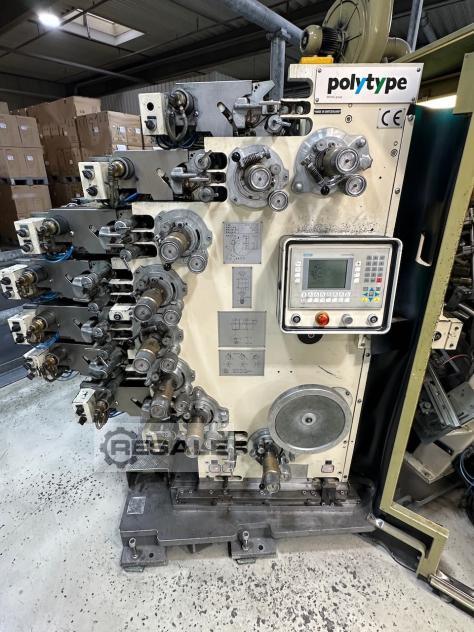

POLYTYPE BDM 611/ 916, 8-Color Cup Printing Line, age 1999 Consisting of:
Elevator Tray Feeder
Cross Conveyor feeder
Universal screw Denester
ARCOTEC CG30 Corona Pretreatment System with Arcotec Leak Tester
8-mandrel Indexing Turret, with Mandrel Holders for Cups
UVITERNO Model Mono-Jumbo 8015, 9 kW, UV Curing-On-Mandrel
Positive Blow-off, final dual Timing Belt take-off Conveyor to counter Stacker station with Ejector Tray.
Max. Cup dia.130 mm
Min. Cup dia. 60 mm
Max. Height of Cups 150 mm
Min. height of cups 35 mm
Max. Printing Length : 362 mm
Taper 2 - 10 degs
Max. speed depending on size & shape of Cups: 36,000/ hr
Siemens S5 PLC Controls

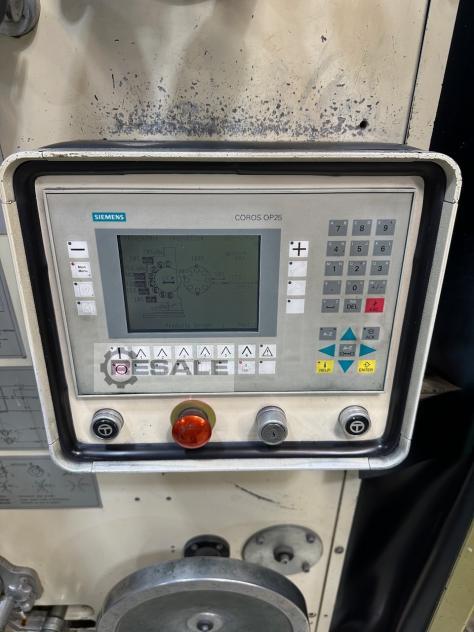

Siemens CORTOS OP25 display with Touch-pad Controls.

Inquiry

Machinery dealer?

Please remit optionally

Send wanted inquiry?

Copy to you?

Save input data

POLYTYPE BDM 611/ 916, 8-Color Cup Printing Line, age 1999 Consisting of:
Elevator Tray Feeder
Cross Conveyor feeder
Universal screw Denester
ARCOTEC CG30 Corona Pretreatment System with Arcotec Leak Tester
8-mandrel Indexing Turret, with Mandrel Holders for Cups
UVITERNO Model Mono-Jumbo 8015, 9 kW, UV Curing-On-Mandrel
Positive Blow-off, final dual Timing Belt take-off Conveyor to counter Stacker station with Ejector Tray.
Max. Cup dia.130 mm
Min. Cup dia. 60 mm
Max. Height of Cups 150 mm
Min. height of cups 35 mm
Max. Printing Length : 362 mm
Taper 2 - 10 degs
Max. speed depending on size & shape of Cups: 36,000/ hr
Siemens S5 PLC Controls
Siemens CORTOS OP25 display with Touch-pad Controls.
seller offer No. resale ID582
