CNC Turning Machines PROKING LC4506020

metal working machines / lathes / CNC Turning Machines

Manufacturer: PROKING

Model:LC4506020

Type of machine: CNC Turning Machines

item-No.: 162697611

Quantity: 0

Date: 12.07.2024

Year of manufacture: 2011

Location: Land-dk Denmark 0 Naestved

Price:


Machine in stock:Yes

Seller-item-No.:3915

Stock number: 3915

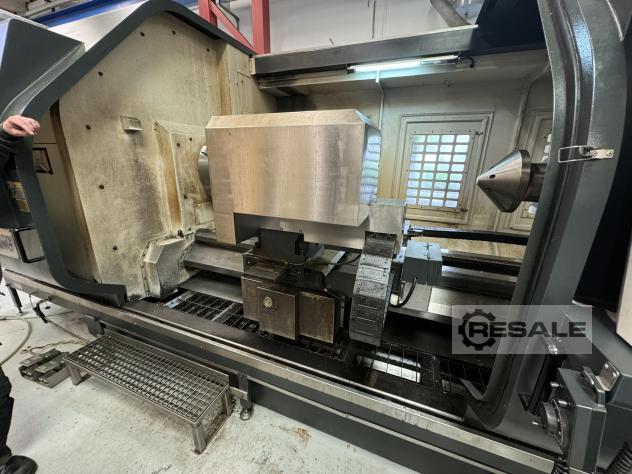

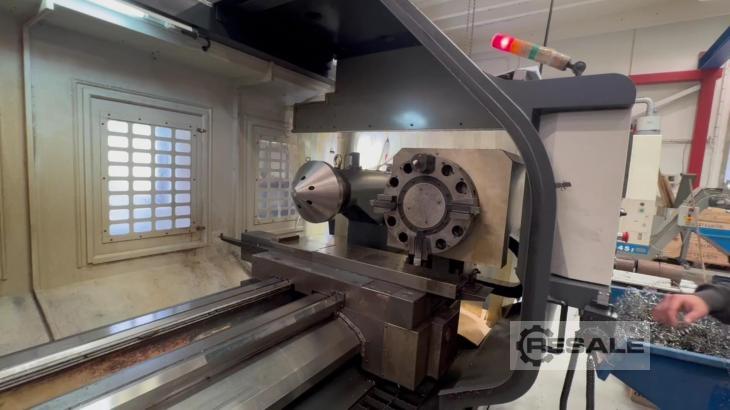

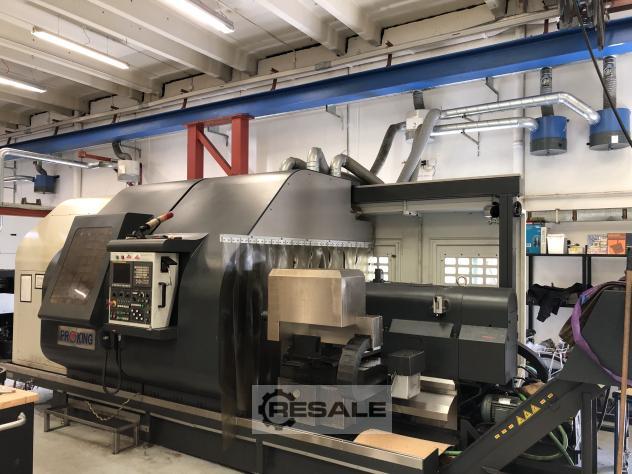

CNC LATHE
Manufacturer: PROKING, Type: LC4506020
Machine NO.: 13021056, Year of manufacture: 2011

Specifications:

Max. turn. About Bed 1135 mm DIA.
Turning length 2000 mm
Turning over planing slides 760 mm dia.
Main motor power 30/37 kw
Main spindle speed range 7-700 rpm
Spindle bore 153 mm dia.
C Axes

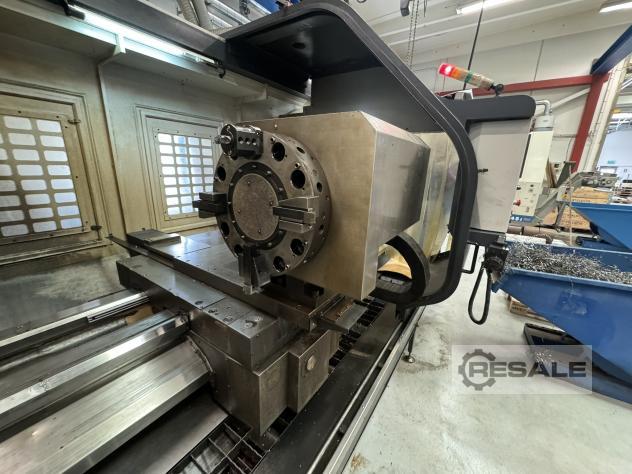

Tool turret with 12 VDI stations
Max. workpiece weighted 3500 Whitout steady Kg

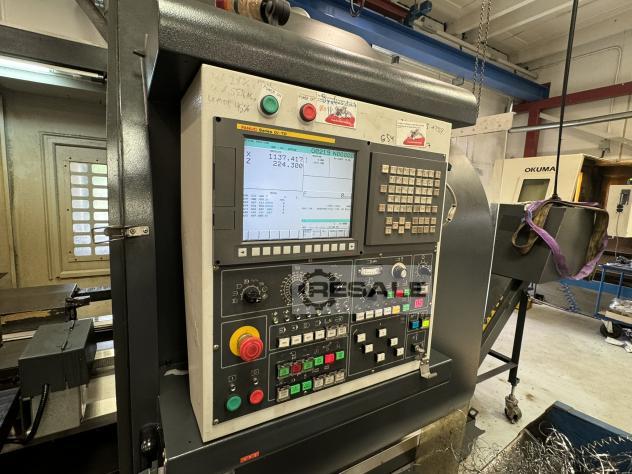

Control FANUC 0iTF Fabr.
Operating hours spindle 3032 hours
Accessories:

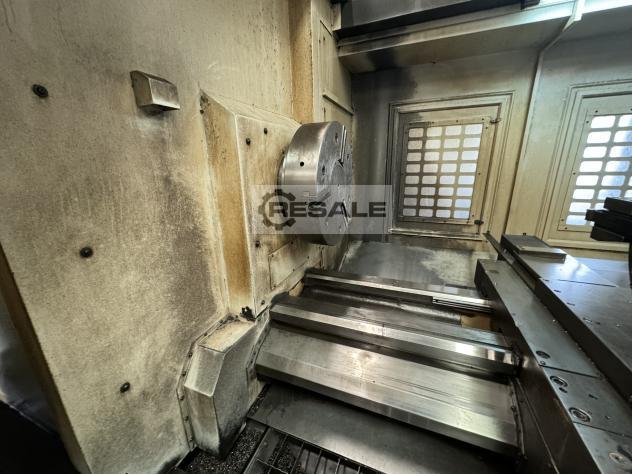

Hydraulic Main Centering Chuck 800 mm dia.
Chip conveyance. 2 pcs

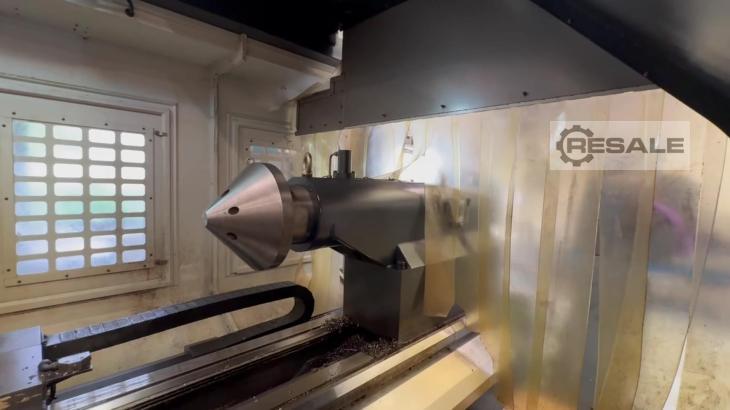

Tailstock

Length: 5720 mm, Height: 2520 mm, Width: 2766 mm, Weight: 12,000 kg

Inquiry

Machinery dealer?

Please remit optionally

Send wanted inquiry?

Copy to you?

Save input data

Stock number: 3915
CNC LATHE
Manufacturer: PROKING, Type: LC4506020
Machine NO.: 13021056, Year of manufacture: 2011

Specifications:

Max. turn. About Bed 1135 mm DIA.
Turning length 2000 mm
Turning over planing slides 760 mm dia.
Main motor power 30/37 kw
Main spindle speed range 7-700 rpm
Spindle bore 153 mm dia.
C Axes
Tool turret with 12 VDI stations
Max. workpiece weighted 3500 Whitout steady Kg
Control FANUC 0iTF Fabr.
Operating hours spindle 3032 hours
Accessories:
Hydraulic Main Centering Chuck 800 mm dia.
Chip conveyance. 2 pcs
Tailstock

Length: 5720 mm, Height: 2520 mm, Width: 2766 mm, Weight: 12,000 kg
