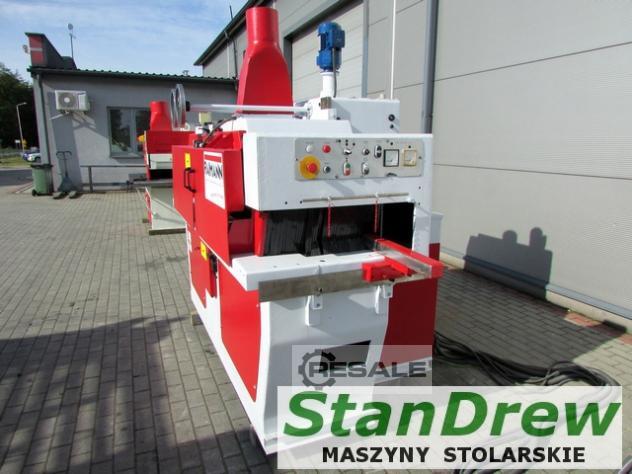

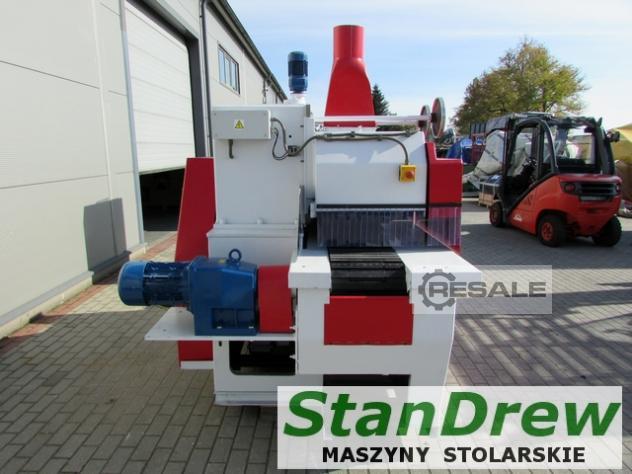

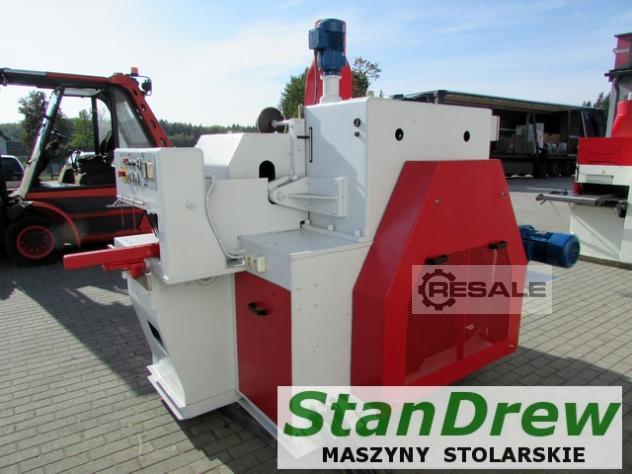

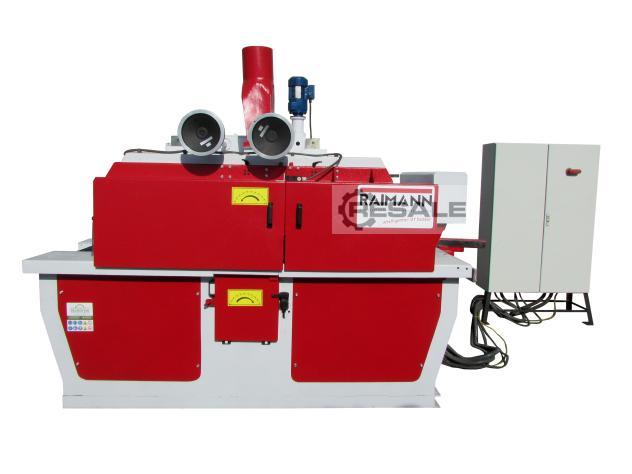

Multi-blade saws RAIMANN KD31

– German production
– year of manufacture 1988

TECHNICAL PARAMETERS:
cutting width 340 mm
cutting height 200 mm
material width max. 800 mm
motor power 2 x 37 kW
feed speed smoothly adjustable on the inverter
disc diameter max. 350mm bottom shaft 400mm top shaft

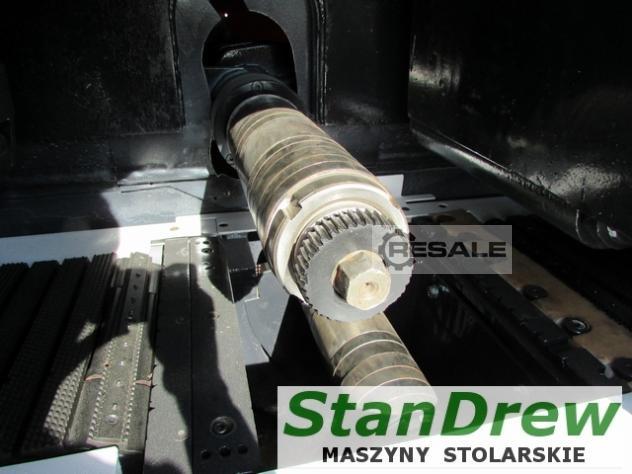

spindle diameter 65 mm
sleeve diameter 80 mm
four rows of latches
four upper pressure rollers
electric height adjustment
possibility to work independently with each spindle
ruler
central lubrication

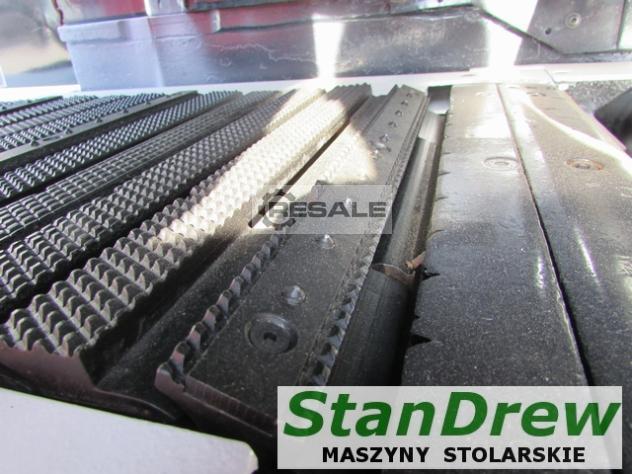

caterpillar with nails
table top height from the base 930 mm
connection diameter 200 mm
transport dimensions (L/W/H) 320 / 200 / 240 cm
weight ~ 5000 kg
seller offer No. resale 160197923
