Broaching Machines RAUSCH RS6 1000

metal working machines / other metal working machines / Broaching Machines

Manufacturer: RAUSCH

Model:RS6 1000

Type of machine: Broaching Machines

item-No.: 160331493

Quantity: 0

Date: 29.11.2022

Year of manufacture: 2000

Location: Land-de Germany 33161 Hövelhof

Price:


Machine in stock:Yes

Seller-item-No.:WAG 826

General / technical data:

Manufacturer: Rausch
Type: RS6/1000
Year of construction: 07/2000
Machine no.: 60305
Weight: approx. 750kg
Tractive force: 60kN (80kN)
Clearing speed: 4m/min
Return speed: 8m/min
stroke: 1000mm
Maximum tool length: 1200mm
Maximum workpiece diameter: Ø approx. 900mm
Table opening: Ø 90mm for standard clearing mandrels
Dimensions (h x w x d): 1600mm x 850mm x 1000mm (h=table height to the floor without superstructures)
Current type: 400 Volt / 50Hz – 6 / 7,5kW

Accessories/ Special equipment:

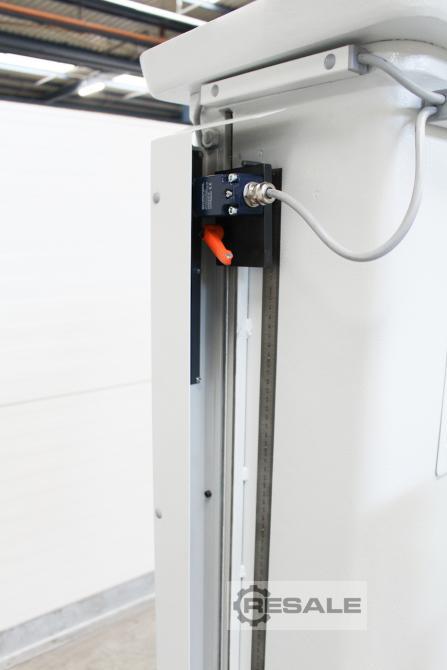

– electrical scanning of the clamping jaws (tool removal control to prevent

unintentional retraction of the drawbridge)

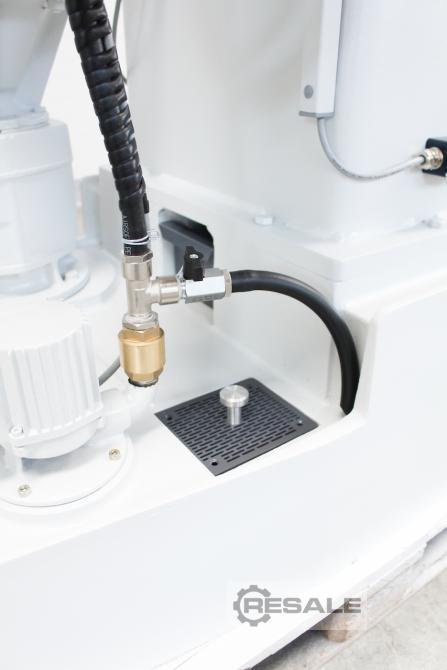

– integrated coolant system with check valve and drain valve

– patented coolant/lubricant swivel system (retrofitted)

Remark:

The machine has the manufacturer CE marking.

The machine is energized in our warehouse and can be visited.
