technical details:
- motor band oscillation
- pneumatic belt tension
- small support table on the pulley
- Swivel range grinding track rear wall: 90° - 180°
- Dimensions grinding track back wall:850 x 150 mm
- Grinding track back wall glued with a graphite sliding lining
- Band size: 150 x 2,280 mm
- Steel table adjustable in height by spring pressure
- Table size: 750 x 350 mm
- Belt speed: 22 m/sec
- Roll diameter: 140 /80 mm
- Diameter suction nozzle: 100 mm
- Bracket (included)

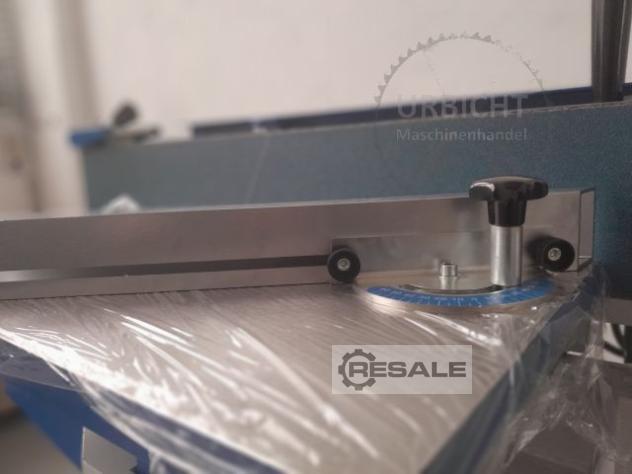

- Miter stop (included)
- Switch-plug combination
- Motor protection and main switch according to VDE
- Dust tested (GS) Holz-BG-Stuttgart (when connected to an extraction
system with an air velocity of at least 20 m/sec)
- Weight: 200 kg
Sound power level (DIN EN ISO 7346)
- No-load: 91 dB(A)
- Processing: 91 dB(A)
Workplace-related emission value (DIN EN ISO 11202)
- No-load: 83 dB(A)
- Processing: 83 dB(A)
- Measurement uncertainty surcharge K: 4 dB(A)
Engine data:
- Voltage: 400 V / 3 phases
- Current: 5.9 A
-Frequency. 50 Hz
- Power: 2.2 kW
- Speed: 2,850 rpm
The machine is delivered with an already mounted sanding belt (grain
size P60) and an additional sanding belt (grain size P120).
(Changes and errors regarding technical data and prices excepted!)
