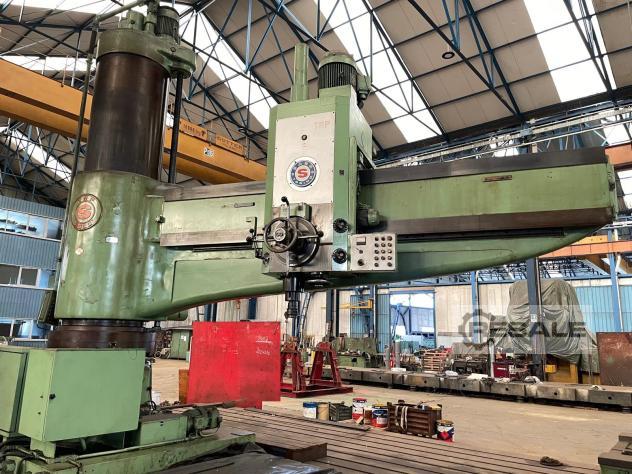

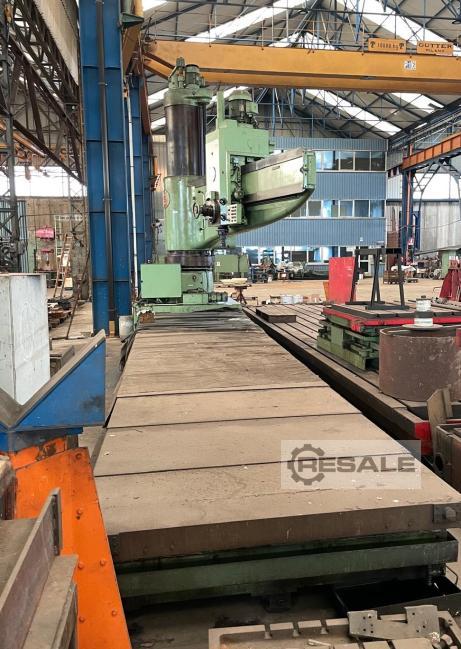

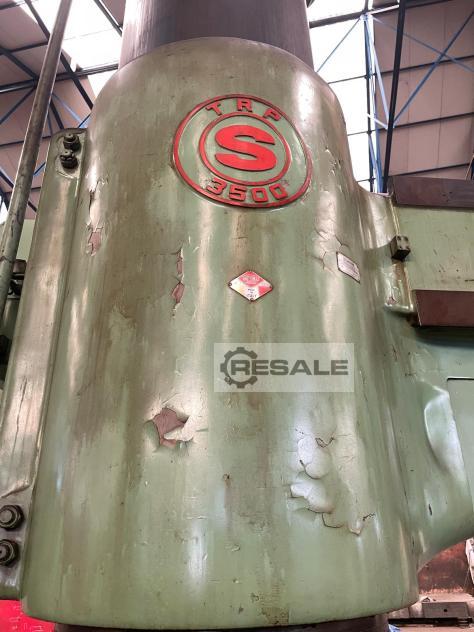

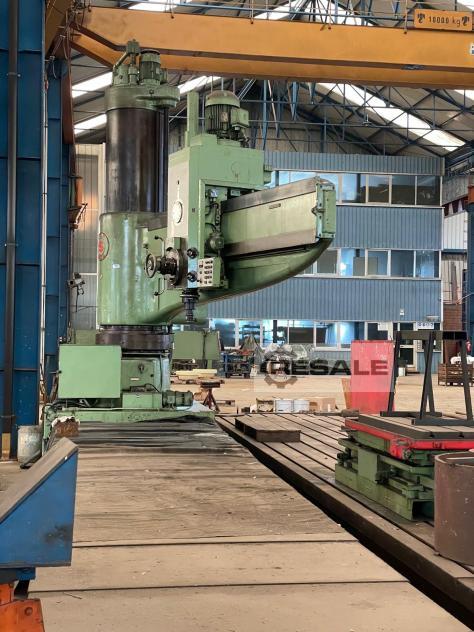

Driller SASS TRP 3500

metal working machines / other metal working machines / Driller

Manufacturer: SASS

Model:TRP 3500

Type of machine: Driller

item-No.: 162706227

Quantity: 0

Date: 29.05.2025

Year of manufacture:

Location: Land-it Italy 31046 Oderzo

Price:


Machine in stock:Yes


Spindle diameter 135 mm
Morse 6 Attachment Cone
Max. drilling depth in 1 pass 600 mm
Min. distance spindle-column axis 485 mm
Max. distance between spindle and mast axis 3,500 mm
Min. distance from spindle to table 520 mm
Max. distance from spindle to table 1,845
Min distance from spindle to plate - base 1,130 mm
Max. distance from spindle to plate - base 2,455 mm
Min drilling radius from column axis 820 mm
Max. drilling radius from column axis 3,875 mm
Max. drilling diameter 78 mm
stroke 8,000mm
stolle top 10.000X2.500mm
