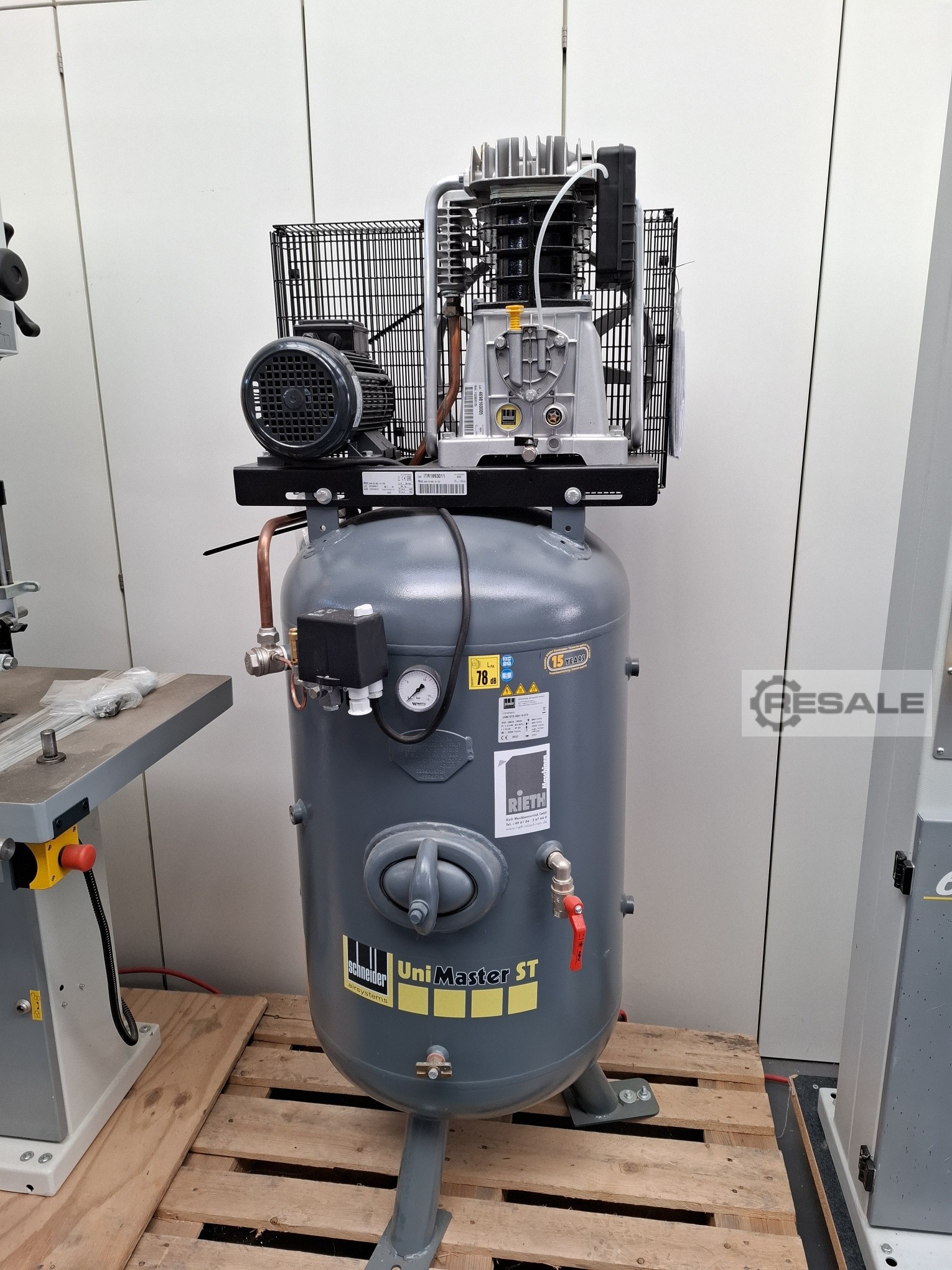

Piston compressor stationary SCHNEIDER AIRSYSTEMS UNM STS 660-10-270

New exhibition machine List price 2.927€ net

Specifications:

Pressure 10 bar
Suction capacity 650 l/min
Effective delivery rate 520 l/min.
Drive power 4.0 KW
Speed 1025 min/1
Tank volume 2x90 L
Weight 175 kg
Noise 83 dB(A)
Air outlet 1/2 i
Dimensions (WxDxH) 1200x800x1240 mm

Construction
V-belt-driven piston compressor mounted on two horizontal pressure vessels complete
mounted on a safety tray, including piping.
Complete equipment
The ready-to-connect equipment includes:
- Pressure switch for fully automatic operation
- Start-up relief and motor protection
-Safety valve
- Check valve
-Manometer

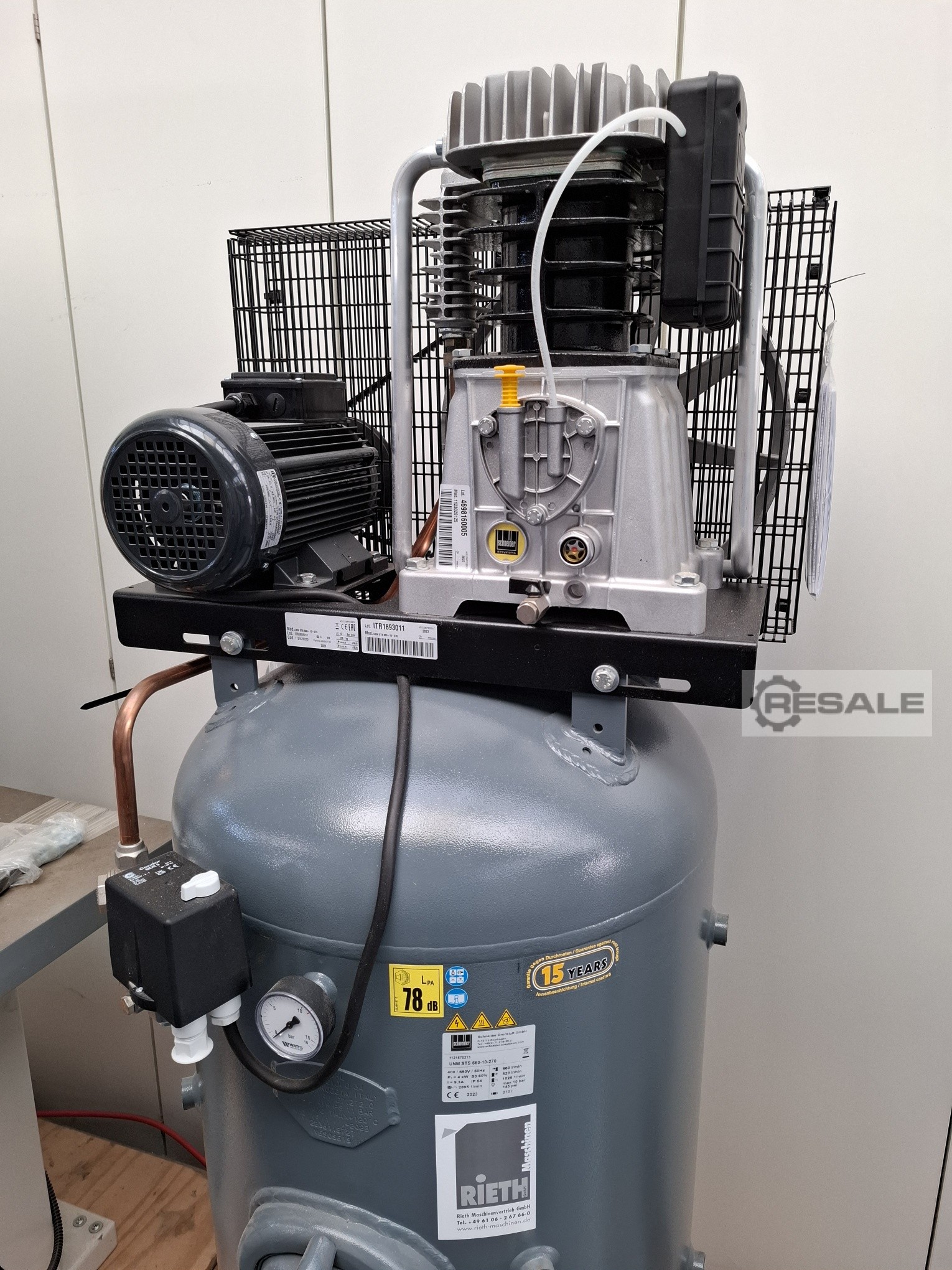

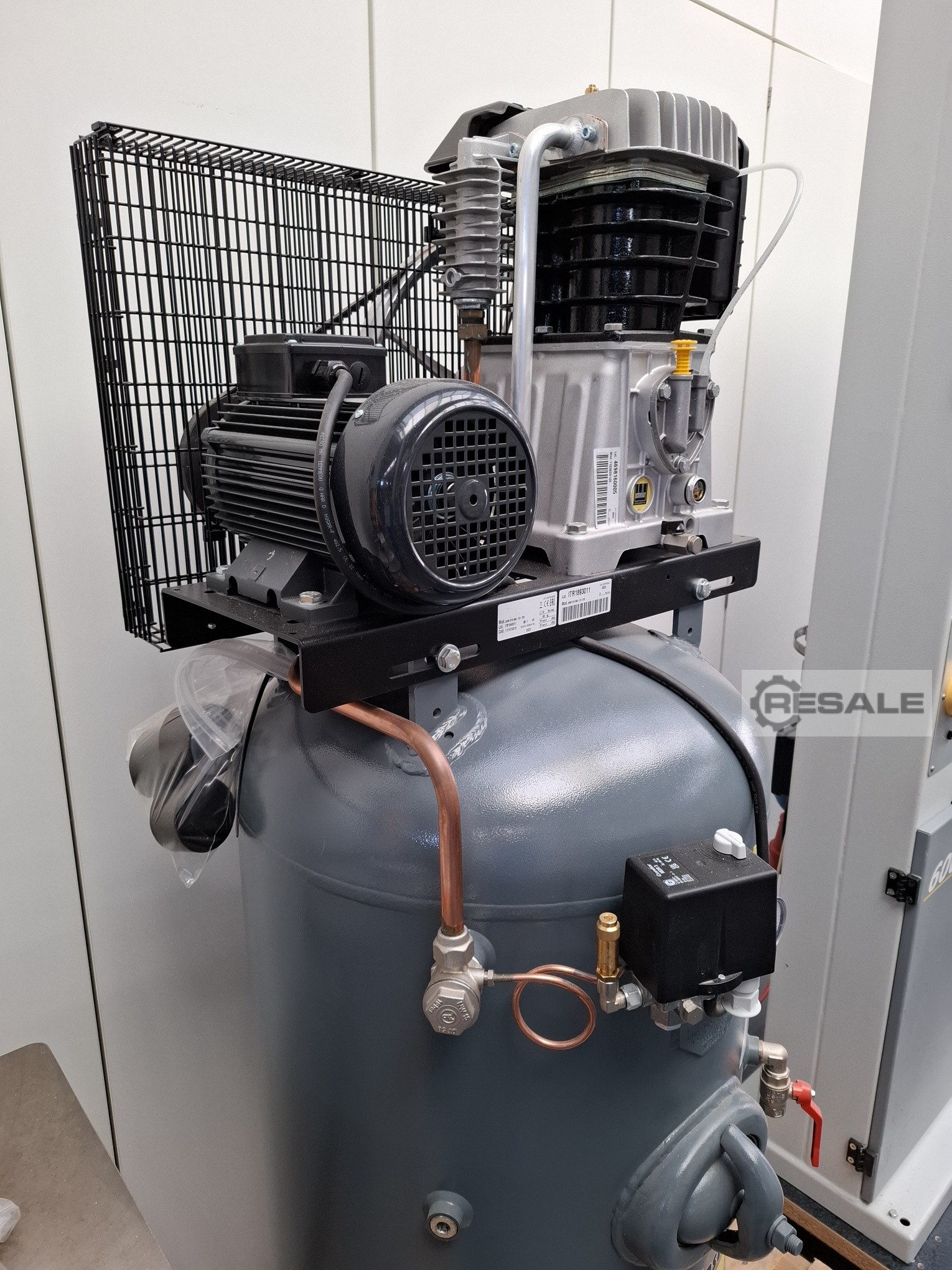

V-belt driven compressor unit
The belt drive ensures a clear
Arrangement of all components given.
All elements subject to maintenance
can be easily dismantled or assembled

seller offer No. resale LK-M-23007
