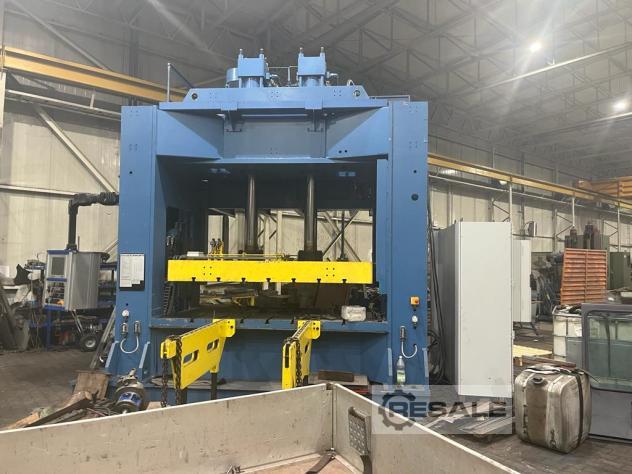

Hydraulic Double Column Presses SCHULER HYDRAP SH-200-2.7 x 1.7

Condition: very good

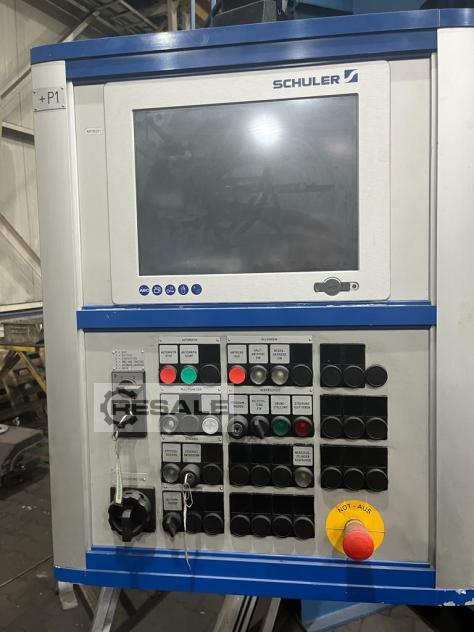

Control system: Siemens

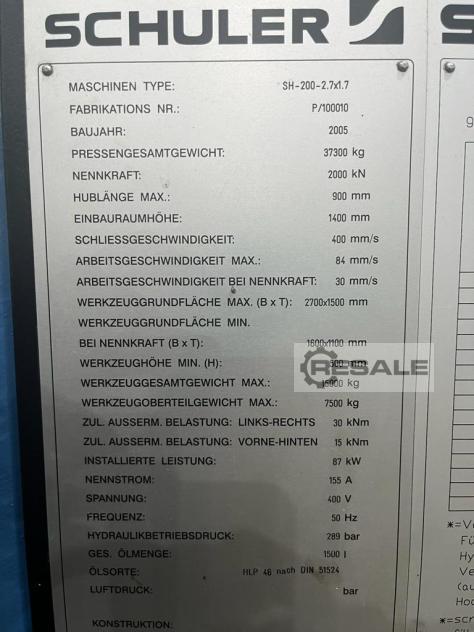

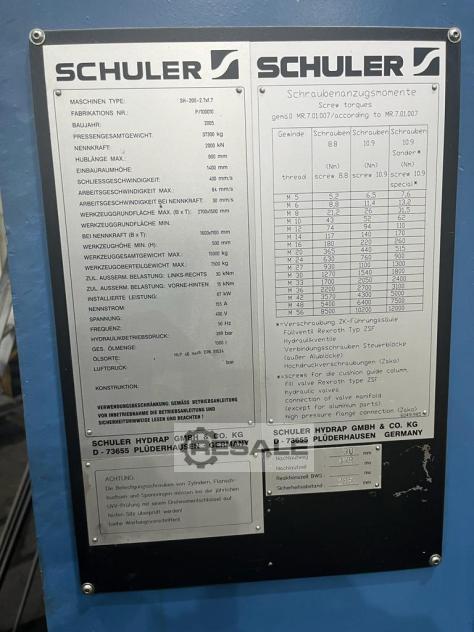

Technical details :

Machine type: SH-200-2.7 x 1.7
Fabrication No.: P/100010
Year: 2005
TOTAL PRESS WEIGHT: 37300 kg
Nominal force: 2000 kN
Stroke length max.: 900 mm
Installation height: 1400 mm
Closing speed: 400 mm/s
Working speed max.: 84 mm/s
Working speed at nominal force: 30 mm/s
Tool footprint max.: 2700 x 1500 mm
Tool footprint min.:
At nominal force: 1600 x 1100 mm
Tool height min.: 500 mm
Total tool weight max.: 15 000 kg
Tool upper part weight max. : 7500 kg
Permitted External load : left-right 30 kNm
Permitted Except Load : front-rear 15kNm
Installed capacity: 87 kW
Rated current: 155 A
Tension: 400 V
Frequency: 50 Hz
Hydraulic operating pressure: 289 bar
Total amount of oil: 1500 l
Type of oil: HLP 46, DIN 51524

seller offer No. resale 161604327
