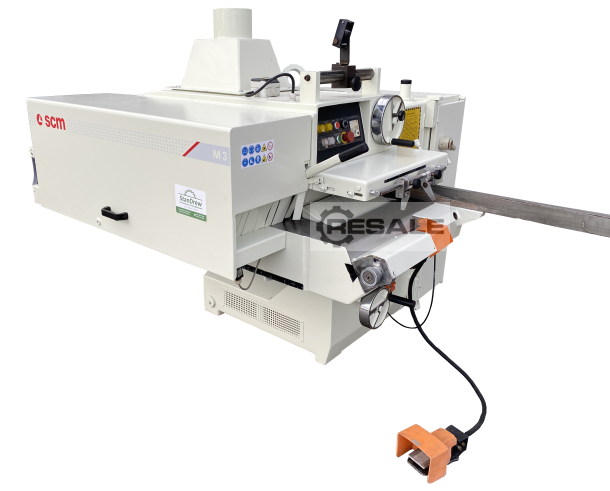

Multi-blade saws SCM M3

– Italian production
– year of production 2000
–DTR

TECHNICAL PARAMETERS:
track width 300 mm
cutting height 120 mm
engine power 25 kW
.max. disc diameter 350 mm
.max. element width 1000 mm
Min. element length 400 mm
feed adjustable on the inverter
ruler on the right side pneumatically adjustable
revolver scale setting 6 types
three rows of anti-jet latches
possibility of putting on a board - shoe

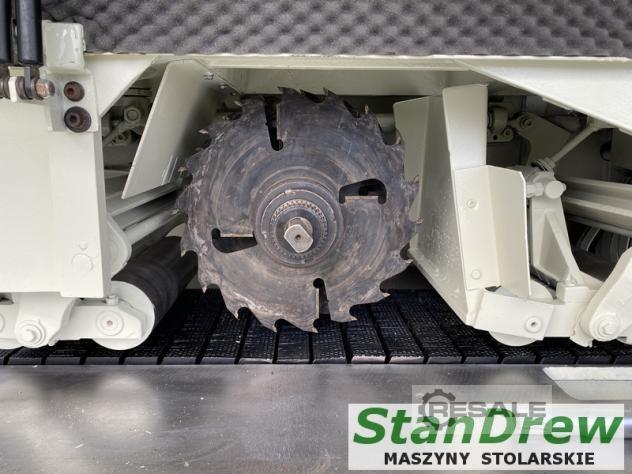

spindle diameter 50 mm
sleeve diameter 70 mm
sleeve equipped with spacers
automatic central lubrication
four upper pressure shafts
connection diameter 180 mm and 120 mm
machine dimensions (L/W/H) 210 / 175 / 160 cm
weight 1800 kg
seller offer No. resale 160197918
