Server racks SEIFERT Soultherm Peltier 3200303

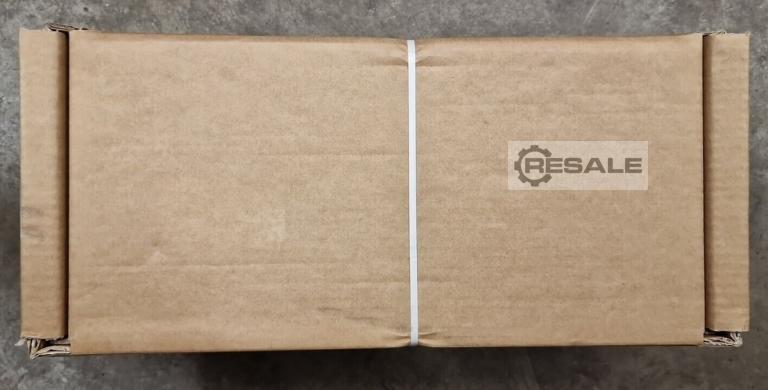

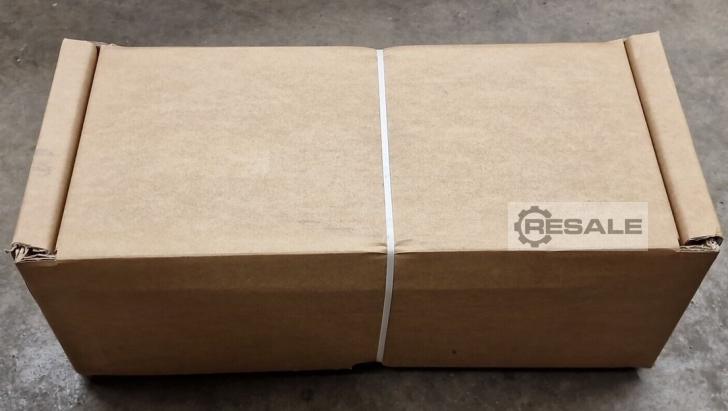

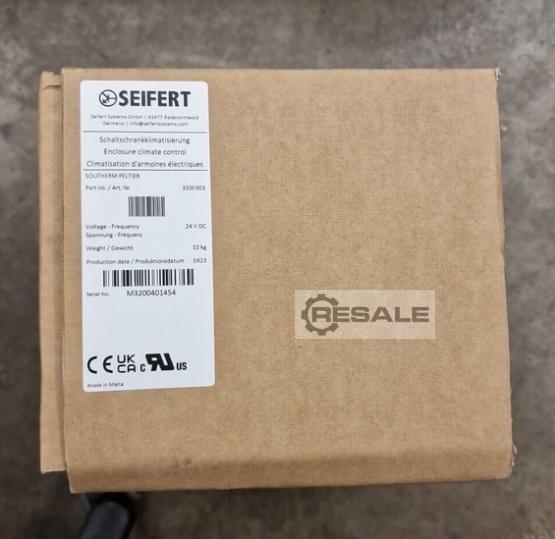

Brand new, not yet unpacked

Seifert

Soultherm Peltier

TG-3200

3200303

24VDC

Useful cooling capacity L35L35200 W

Permissible Operating Temperature-20°C - 70°C UL Temperature Range-20°C - 65°C

Air volume flow (system / free-blowing) Ambient circuit: 120 / 260 m³/h

Cabinet circuit: 120 / 260 m³/h

Mounting typeSemi-installation

Dimensions A x W x C (D+E)

A = Height | B = Width | C = Depth

400 x 180 x 170 (79+91) mm

Weight10 kg

Cut-out dimensions370 x 155 mm

Voltage / Frequency24 V DC

Rated current L35L3511.3 A

Starting current16.9 A

Max. Rated Current12.9 A

Rated power L35L35270 W

Max. rated power311 W

Back-up fuse18 A (T)

Connection TypeConnection Terminals
seller offer No. resale 162687172
