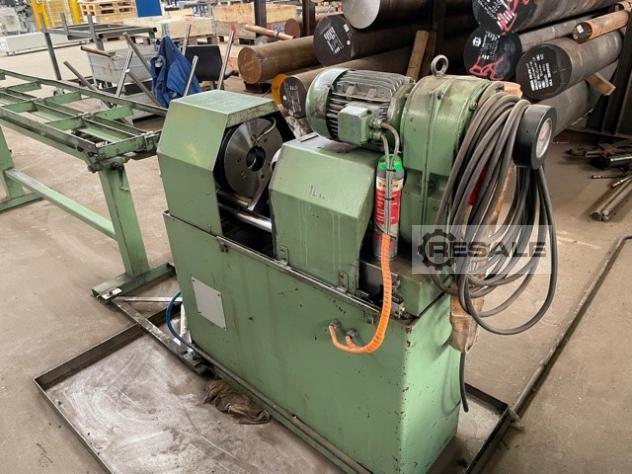

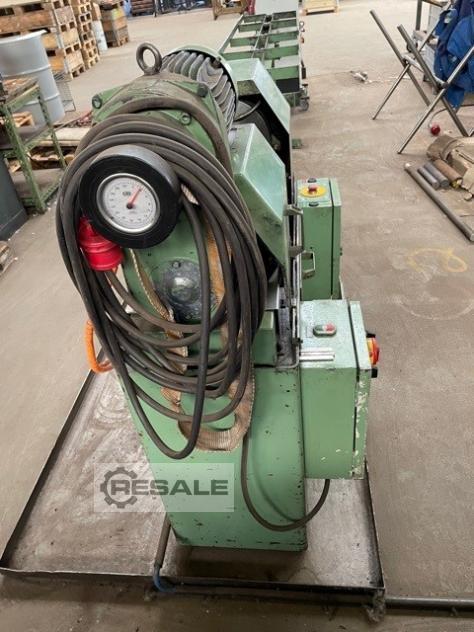

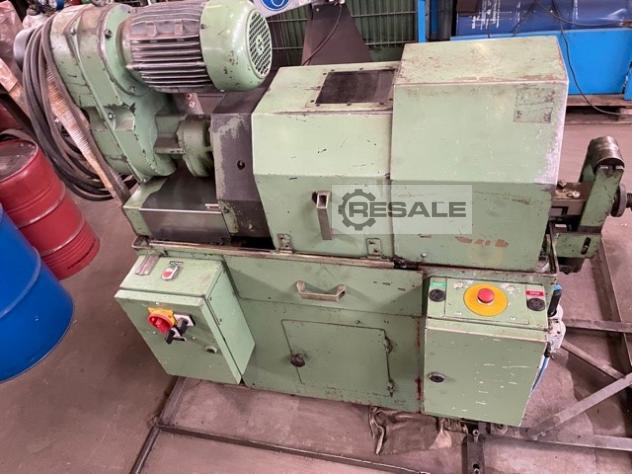

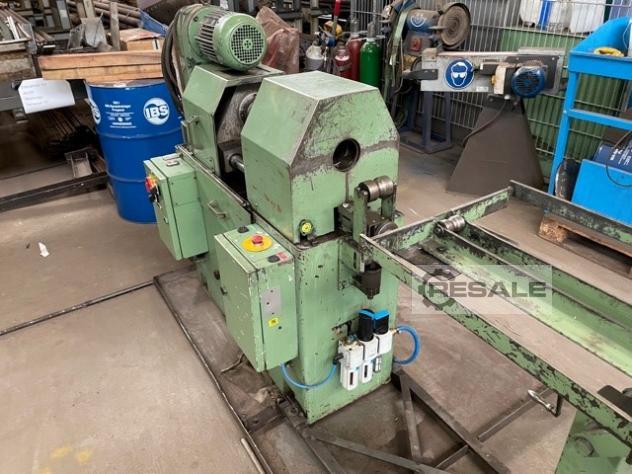

End Working Machines SVIN-KUHN LKA 80

In 2020, the machine was extensively overhauled for 7000 €. Proof available.

Processes:

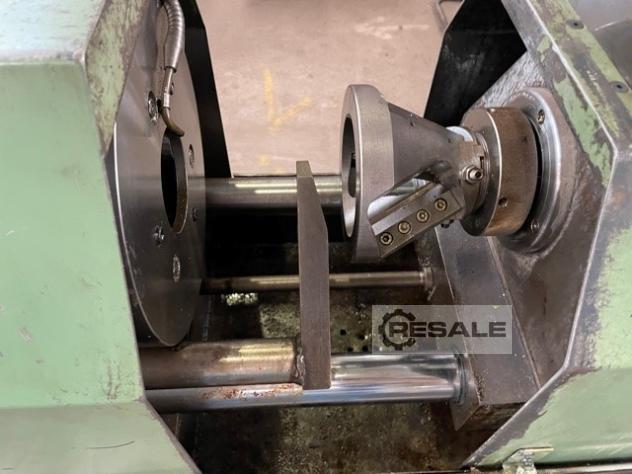

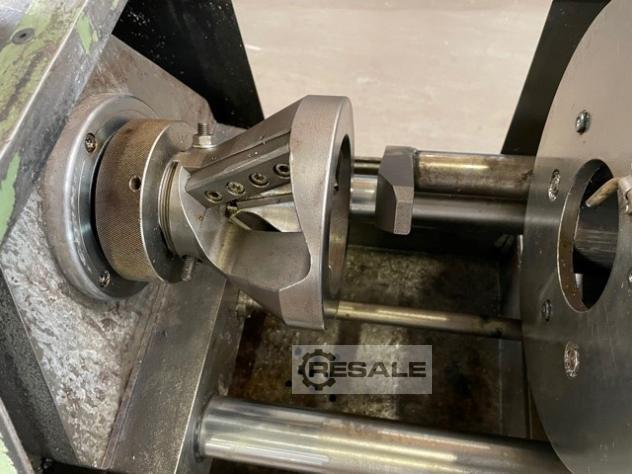

- Chamfering 60°
- Longitudinal turning up to a maximum of 40 mm
- Centering drilling
Workflow fully automatic:
- Tensioning, feeding to
- Rapid traverse forward
- Work feed
- Dwell time for cutting
- Rapid traverse back
- Relax, feed on
Specifications:
workpiece diameter approx. 80 mm
workpiece diameter 6kt-SW 70 mm
min. workpiece diameter round and 6kt 10 mm
min. workpiece length 450 mm
Speed range infinitely variable
Level I/Stage II = 51-306/102-612
Electrical equipment 220/380 V, 50 Hz
Motor power main motor kW 1.3/1.8
Engine power Coolant motor kW 0.07
Required air pressure 6-8 bar
Weight approx. 520 kg
Dimensions:
L 1520 mm x W 610 mm x H 1350 mm

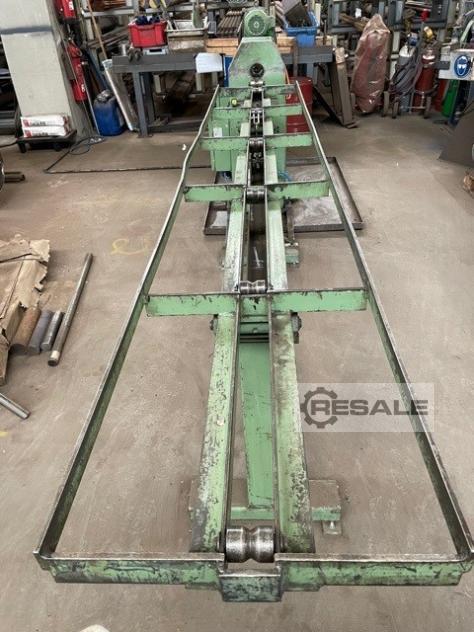

Roller conveyor
