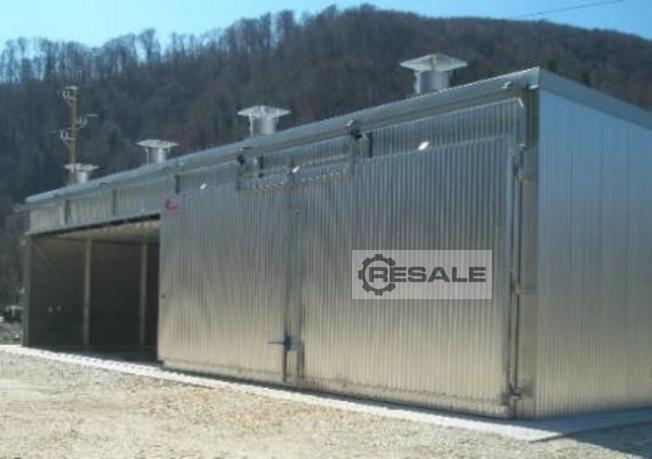

Drying chambers TERMOLEGNO CSD-HT-BR 70

20-15- Timber drying kiln (new)
Type CSD-HT-BR 70
Internal dimensions (width x depth x height) 7500 x 7160 x 4100 mm
External dimensions (width x depth x height) 8080 x 7760 x 5500 mm
The section of the structural columns of the chamber is 160 x 70 mm
Snow load for the roof is 80 Kg/m2
Wind resistance of walls 27.8 m/sec
Warming with glass wool
Walls ǂ100mm
Roof ǂ100mm
Door ǂ100mm

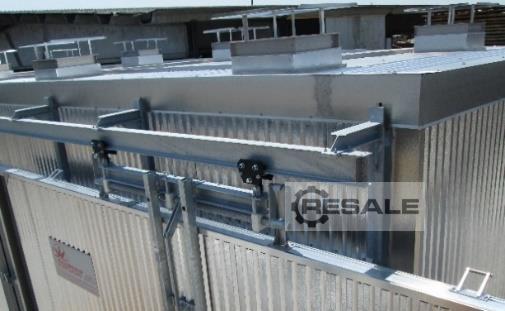

Door: sliding type, hung on a rail
Wood for drying: various
Loading the drying chamber with a forklift

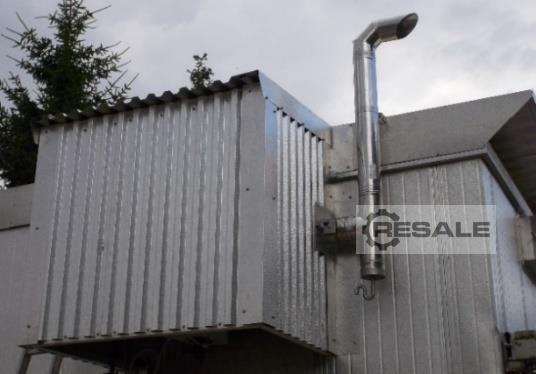

The heating system is gas
Fuel - GPL gas
Maximum thermal energy (300 kW)
Maximum chamber temperature 75 °C

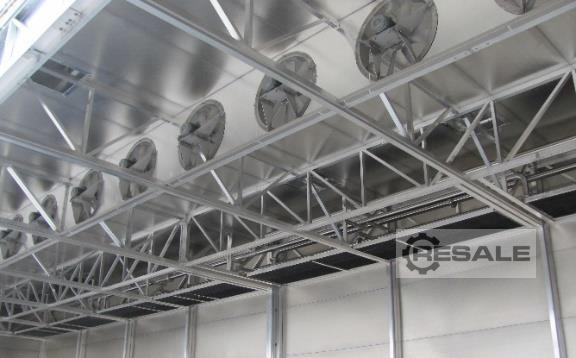

The number of fans in the chamber is 5x3kw
The total capacity of the fans is 162,500 m3/hour

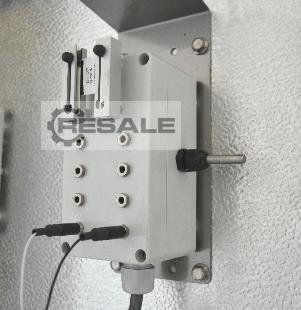

Number of probes: 4 HT/ 8 AWM/ 2 EMC/ 2 Temperature
Voltage 400 V 50 Hz
Total power 17kw)

seller offer No. resale 162683932
