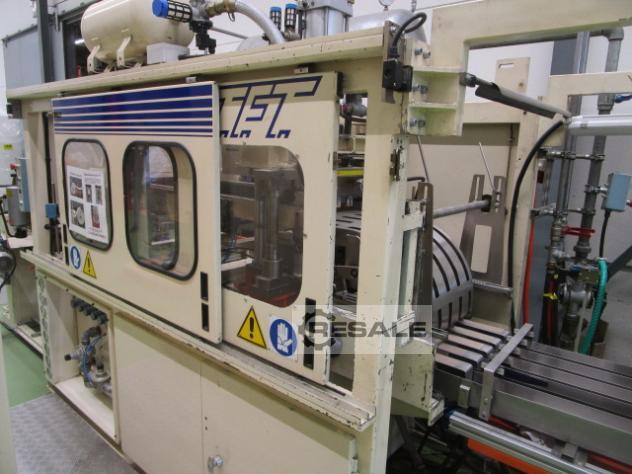

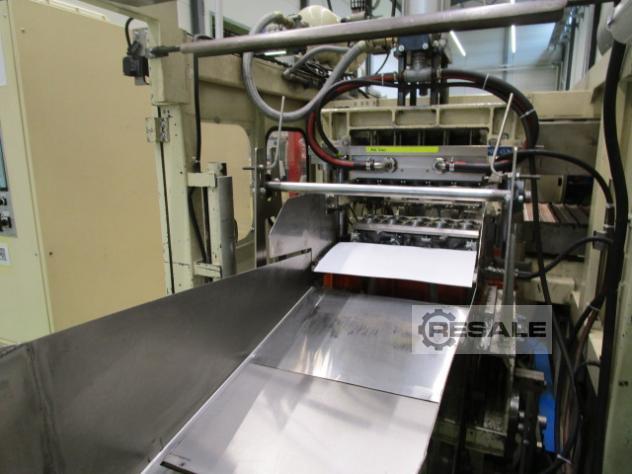

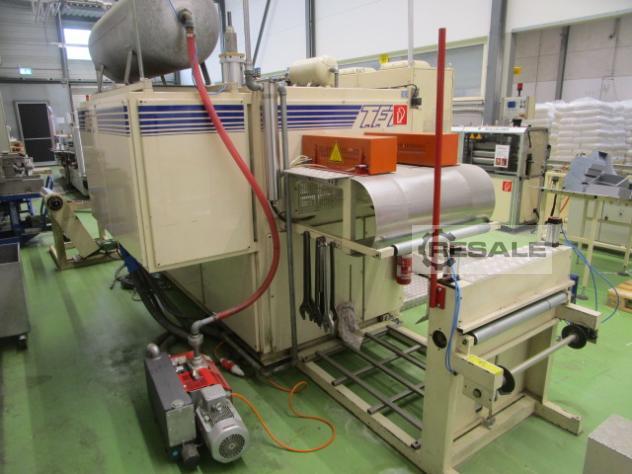

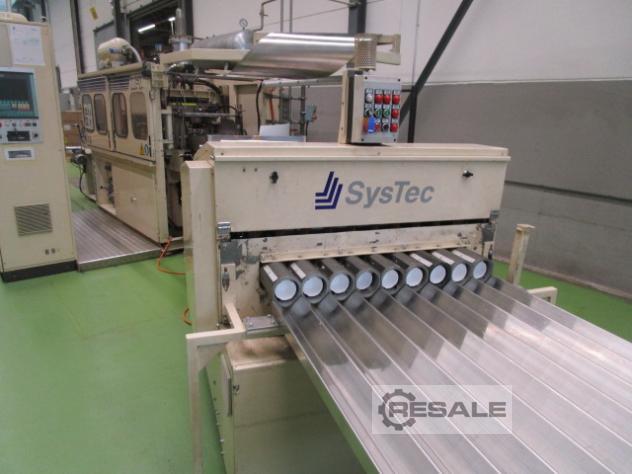

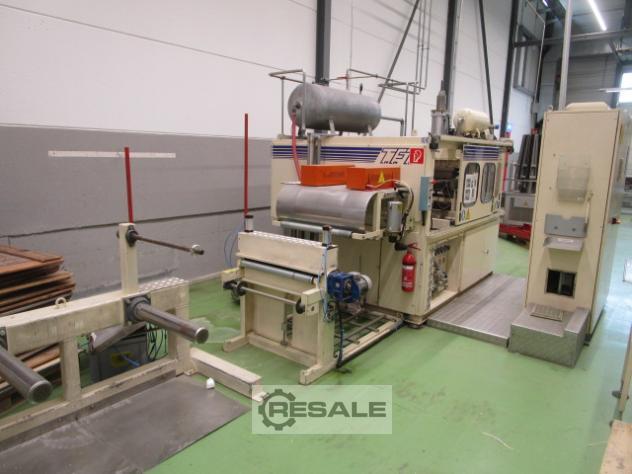

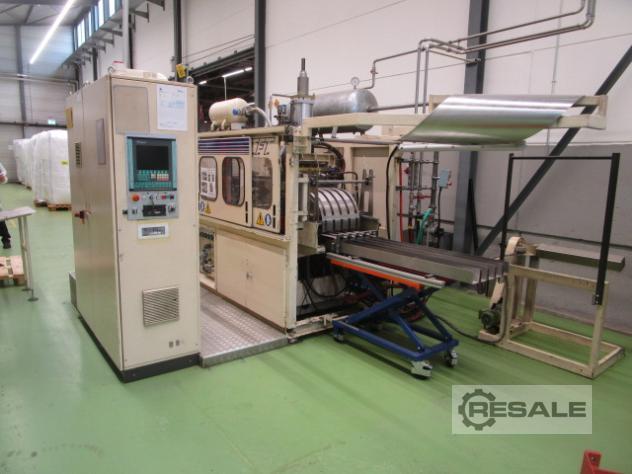

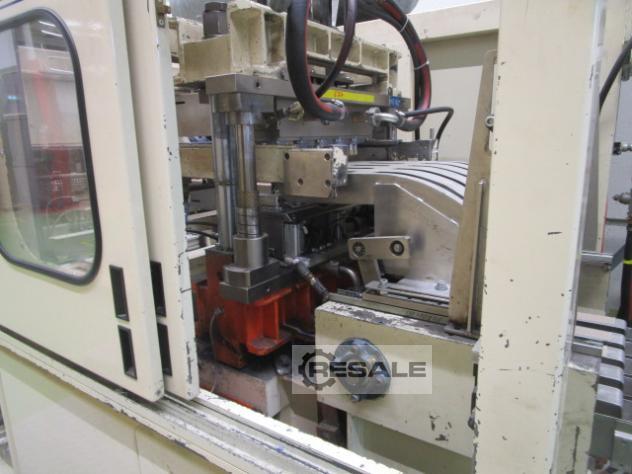

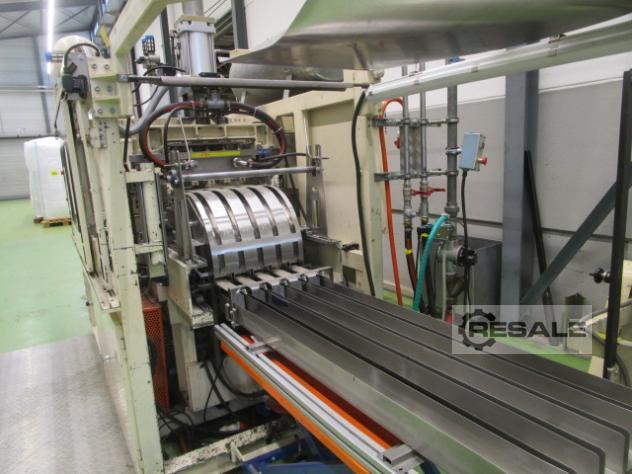

THERMO FORMING MACHINE TFT IMC 5030

THERMO FORMING MACHINE TFT IMC 5030 (WITH TOOLS)

M. No.: 403
Equipment / Additional information:
unwinding:
Roll recording: easy
Max roll diameter: mm 1000
Settlement: automatically
Thermoforming machine:
Maximum tool dimensions: mm 520x330
Pos. Molding height max .: 15 mm
Neg. Molding height max .: 120 mm
Sheet width: mm 150/760
Movement Step: mm 50/330
Max HIPS film thickness: 1.8 mm
Hub of the sub-table: 150 mm
Clamping force: 7500 Kg
Inst power top heater: 18.8 Kw
Inst power under heater: 14.1 Kw
Idle clock speed: per minute 40th
power main drive motor: 2.2 Kw
Engine power. Film feed: 0.75 Kw
Air operating pressure: Kg / cm2 7
Water consumption at 12 °: 1t / 1` approx.30
Air consump. at 7 kg / cm2: 1t / cycle 125
Installed power: Kw 50

Tools:
Item No. // Tool no. // Cavities // Machine
3589 // 458 // 12 // TFT
507 // 452 // 6 // TFT
508 // 452 // 6 // TFT
509 // 452 // 6 // TFT
590 // 458 // 12 // TFT
591 // 459 // 10 // TFT
592 // 459 // 10 // TFT
593 // 460 // 8 // TFT
594 // 455 // 4 // TFT
595 // 456 // 10 // TFT
596 // 456 // 10 // TFT
597 // 456 // 10 // TFT
598 // 457 // 10 // TFT
seller offer No. resale 91102.23
