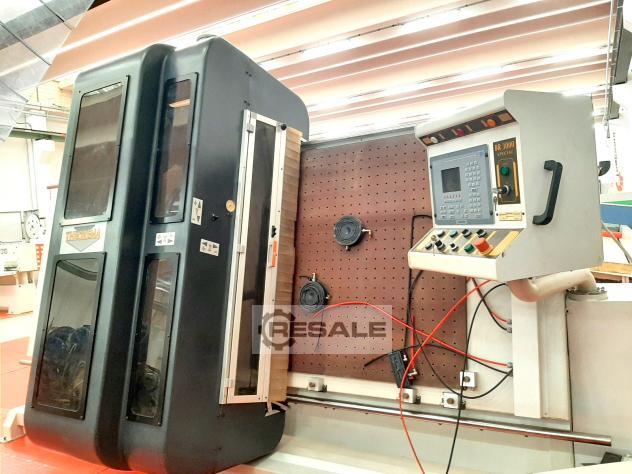

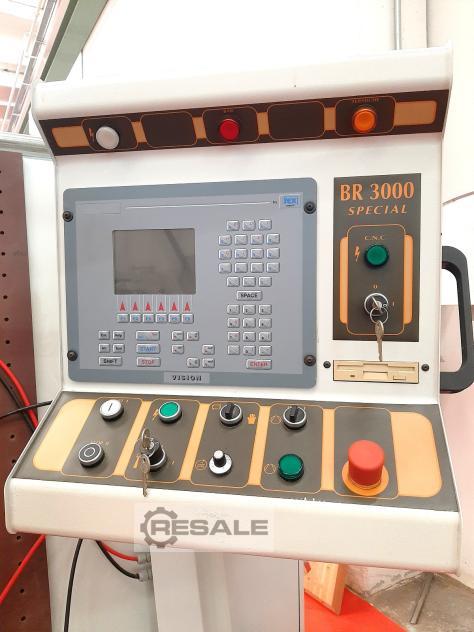

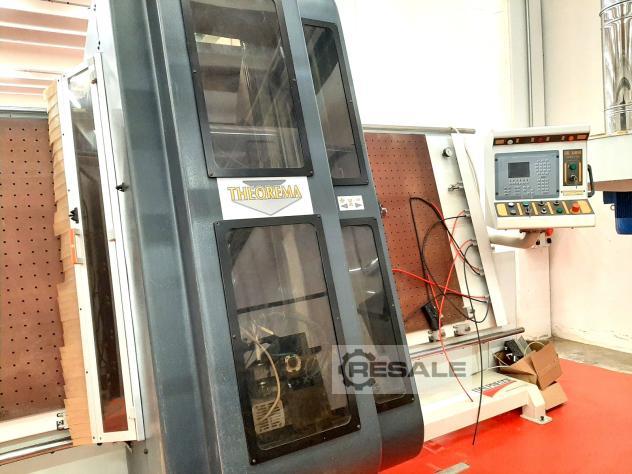

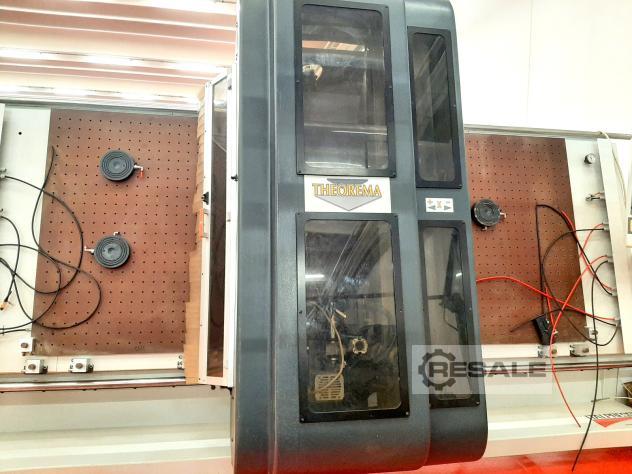

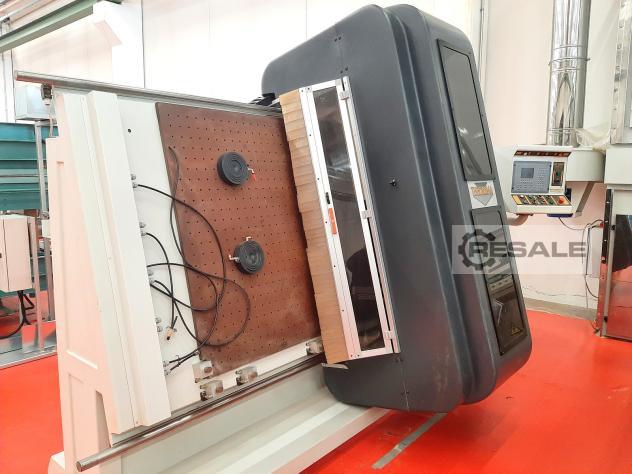

Numerically Controlled Machining Centres THEOREMA BR 3000 SPECIAL

wood working machines / boring mills, machining centers / Numerically Controlled Machining Centres

Manufacturer: THEOREMA

Model:BR 3000 SPECIAL

Type of machine: Numerically Controlled Machining Centres

item-No.: 162731355

Quantity: 0

Date: 12.06.2025

Year of manufacture:

Location: Land-it Italy

Price:


Machine in stock:Yes

Seller-item-No.:Code: 0409

Code: 0409
Brand: THEOREMA
Model: BR 3000 SPECIAL - CE Standard

CNC boring and pantograph working centre with 3 controlled axis for furniture, kitchens, bathroom furniture, panels, doors and miscellaneous - CE standard

Technical data:
Minimum overall dimensions
Useful length X axis mm 3000
Useful length Y axis mm 1300
X axis speed mt/min 24
Y axis speed mt/min 24
Z axis stroke mm 65
Max panel thickness mm 65
Boring unit with n° 18 spindles - Right-left drill chuck diameter mm 10 - Rpm 4000
Pantograph with pneumatic tool release - Motor Hp 7,5 - Rpm 0/18000 - Inverter for spindle Kw 5,5

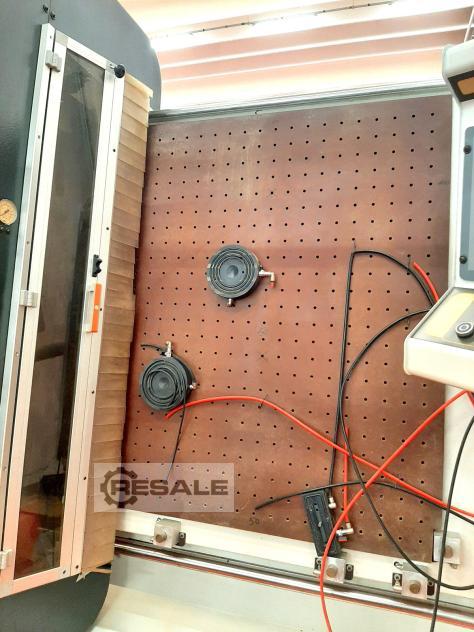

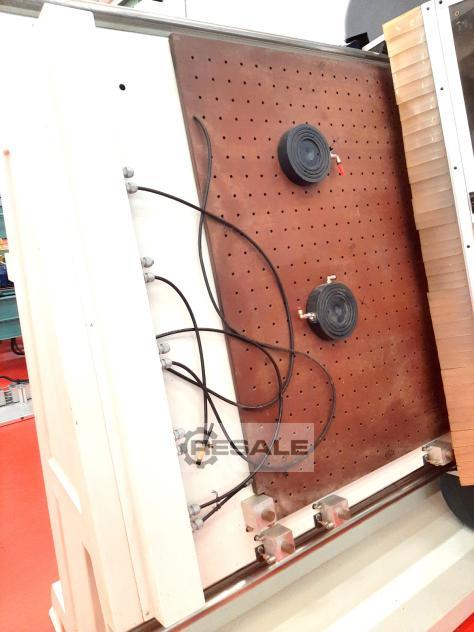

Nesting worktable
Suction cups mm 150 x 150
Rapid panel positioning
Optimisation of the drilling path
Specularity of drilling and milling cycles
Interpolation on three X-Y-Z axis
Vacuum pump cubic metres 100
Compressed air atm 6
Overall dimensions: mm 4400 x 1700 x 2400 h
Weight kg 1200

MACHINE SOLD UNDER THE CONDITIONS IN WHICH IT IS FOUND NOT RECONDITIONED
