Vertical painting profile cabin TRASMETAL PROFILE LENGTH 8 M

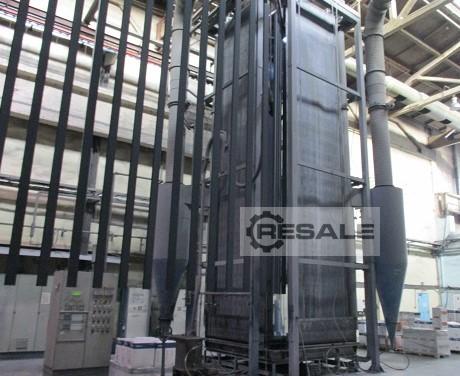

Qty. 1 Second-hand vertical profile painting cabine
The equipment is designed for automatic electrostatic spraying of powder paints and varnishes onto long metal products and must be built into a production line equipped with an overhead single-rail closed ring conveyor.
Mfc.: TRASMETAL Built:
Main technical characteristics
Maximum profile size: Width: 120 mm Height: 8,000 mm
Length (axial along the conveyor): 350 mm
Equipment exhaust ventilation: 24,000 m3/hour
Compressed, dried and purified air (water - maximum 1 g / m3, oil - maximum 0.01 ppm / m3)
Total flow: 530 m3/hour Pressure: 7 bar
Electricity: 380 V, 50 Hz, 3 ph. Power: 235 kW

seller offer No. resale PAINTINGVERTCAB231001
