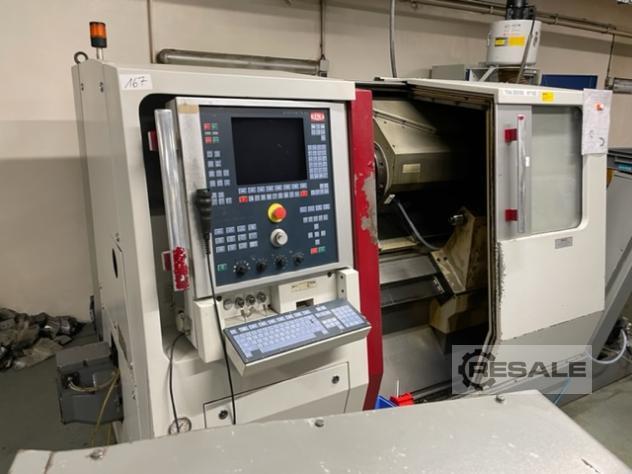

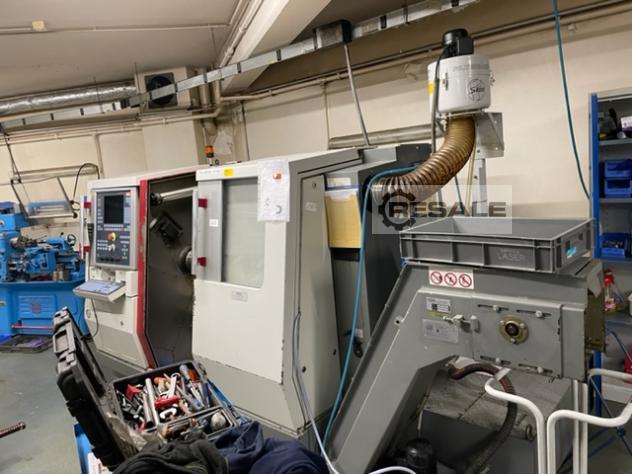

CNC Turning Centers TRAUB TNA 300

Machine Details
Stock number 1105-03756
Machine type CNC turning and milling center
Brand TRAUB
Type TNA 300
Year of construction 1996
Control type CNC
Control Traub TX 8 H
Storage location warehouse
Country of origin Germany
Delivery time by arrangement
Freight base EXW

Technical details
Turning length 450 mm
Control Traub TX 8F
Turning diameter above the paddling carriage 275 mm
Turning diameter over bed 400 mm
Speed range 4000 rpm
Number of tools 12 pcs.
Sledge path plan 210 mm
Sledge path lengthwise 450 mm
Quill diameter 75 mm
Quill stroke 125 mm
Total power requirement 22 kW
Machine weight ca. 3.2 t
Space requirement approx. 3 x 2.00 x 2.10 m
Information
3 AXIS MACHINE WITH LIVE TOOLS

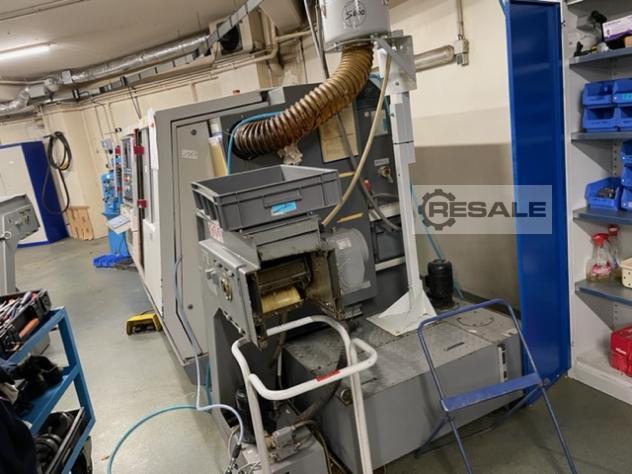

incl. chip conveyor

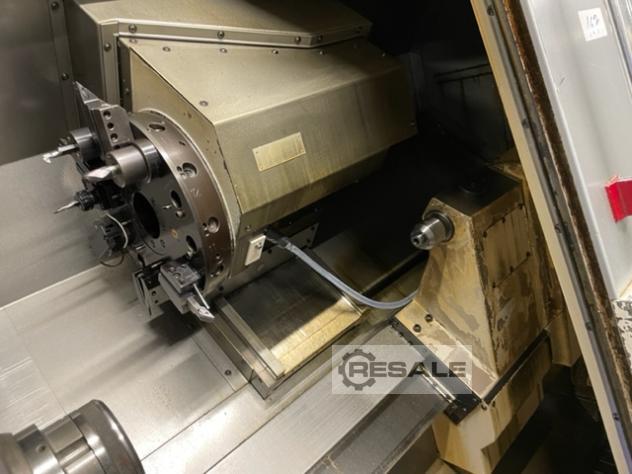

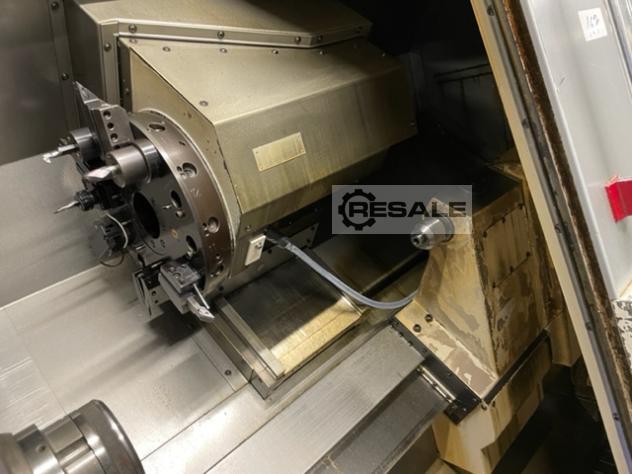

12-cavity tool turret SAUTER with 12-cavity tool turret VDI 30 MIT
DRIVEN TOOL HOLDERS
AND C AXIS
Towing tailstock with quill
Three-jaw power chuck

Condition SUPER
