Machine Details
Stock number 1105-03787
Machine type machining center - vertical
Make TRENS
Type MC 100 VA
Year of construction 2000
Control type CNC

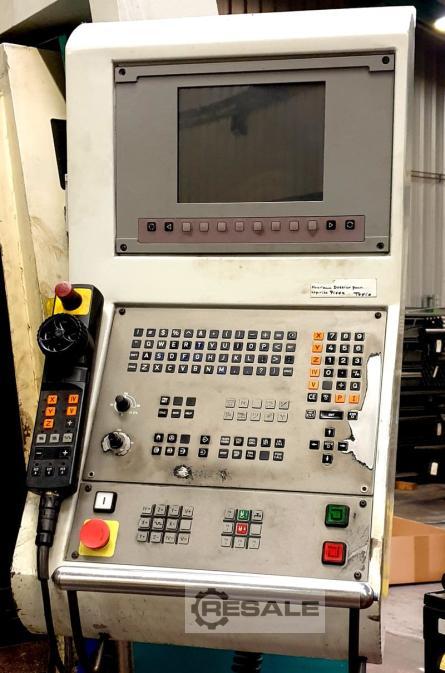

Control HEIDENHAIN TNC 415
Storage location FRANCE
Country of origin Czech Republic
Delivery time immediately
Freight base from stock, freely loaded trucks
Technical details
x-travel 1015 mm
y-travel 610 mm
z-travel 508 mm
Table size 1080 x 580 mm
Spindle holder ISO 40
Drilling capacity in St 60 - solid drilling 45 mm
Tapping up to M 24
Speed range - infinitely variable 20 - 8000 rpm
Feeds - longitudinal/transverse/vertical 1 - 5000 mm/min
Rapid traverse 20 m/min
Spindle/table distance 100 - 608 mm
Number of tool magazine slots 40
Tool diameter with full assembly 80 mm
Tool diameter with 2 free spaces 125 mm
Tool length max. 380 mm
Tool weight max. 7 kg
Tool change time 7 sec
Spindle 11/16.5 kW
Control HEIDENHAIN TNC 415
Total power requirement 30 kVA
Machine weight ca. 5,7 t
