Laser Cutting Machines TRUMPF TruLaser 3530

metal working machines / sheet metal working / Laser Cutting Machines

Manufacturer: TRUMPF

Model:TruLaser 3530

Type of machine: Laser Cutting Machines

item-No.: 144842633

Quantity: 0

Date: 03.10.2023

Year of manufacture: 2008

Location: Land-pl Poland

Price: 80,000 EUR

Machine in stock:Yes

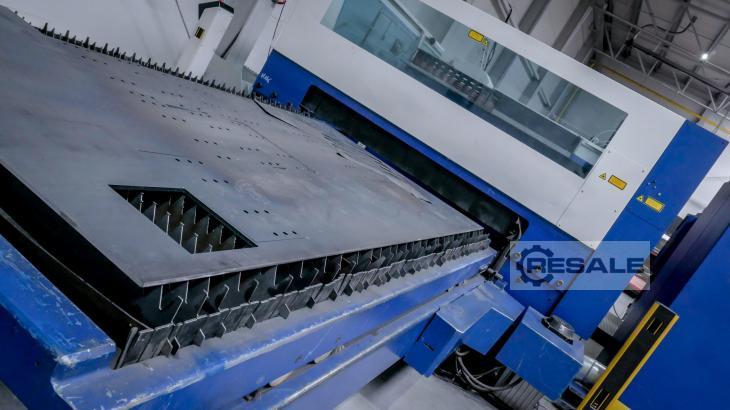

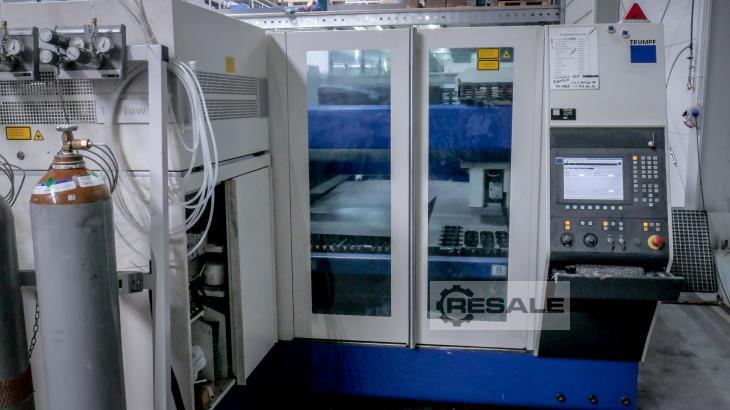

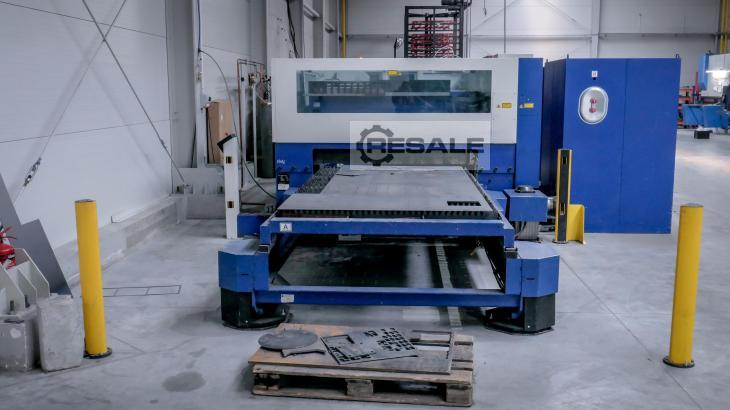

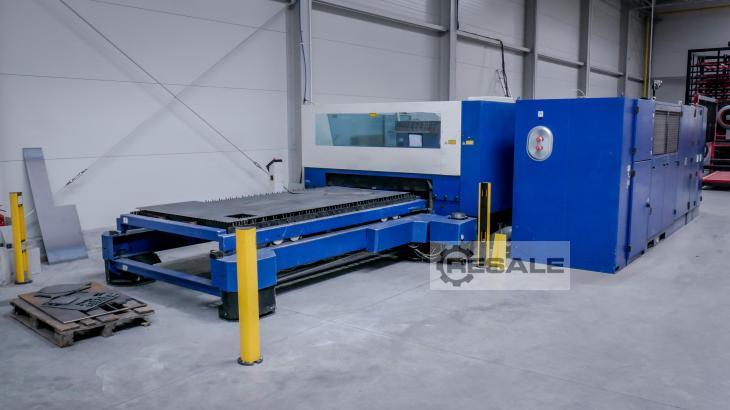

For sale is a laser cutting machine TruLaser 3530.

technical data:
Additional details

- Operating hours: Beam-On 2030 h/Laser-On 9814 h
- X travel distance 3000 mm (max. 3104)
- Y travel distance 1500 mm (max. 1580)
- Xp travel 300 mm (max. 305 mm)
- Z-travel distance 114 mm
- maximum material thickness 20 mm
- maintenance-free three-phase motors in X1, X2, Xp, Y1, Y2 and Z axes
- maximum positioning speed axle parallel 120 m/min
- Simultaneous 170 mm/min.
- Acceleration when positioning X-axis 9 m/second
- Xp + Y axis 15 m/second
- Cutting X-axis 4 m/second
- Cutting Xp and Y axis 15 m/sec.

Standard
- Closed machine frame with integrated laser resonator
- Movement unit for optimal processing speeds
- Additional highly dynamic Xp axis
- Automatic pallet changer
- Closed beam guide
- NitroLine, high-pressure cutting
- FocusLine, constant focus position
- Compressed air cutting
- PierceLine, reduction of the piercing process
- PlasmaLine, plasma sensors
- SprintLine, fast processing
- LensLine
- FlyLine
- ContourLine, for the production of small holes
- Microweld
- Spraying device
- Position laser diode
- Programmable cutting gas pressure
- Auto shut-off
- Workspace lighting
- TruTops Laser lite
- TruFlow 3200 CO2 laser with high-frequency excitation, mirror telescope and maintenance-free turboradial blower
- Laser control TASC 3, logbook function and cooling unit
- Laser cutting head with 5" and 7.5" lens and quick-change device
- ControlLine, capacitive height control and process control
- Control Sinumerik 840D: Open control
- Causes of error messages via diagnostic functions

Extended machine equipment
- Pallet change system
- Laser cutting heads 5" and 7.5"
- additional laser cutting head with 3.75" lens for
High-speed cutting
- Dimensions in mm: approx. 9300 x 4600 x 2000, weight in kg: approx.
11500
Built: 2008

Price 190,000â?¬ net

For further questions, please contact us.
Intermediate sale and errors reserved.
Visit possible by prior arrangement.
