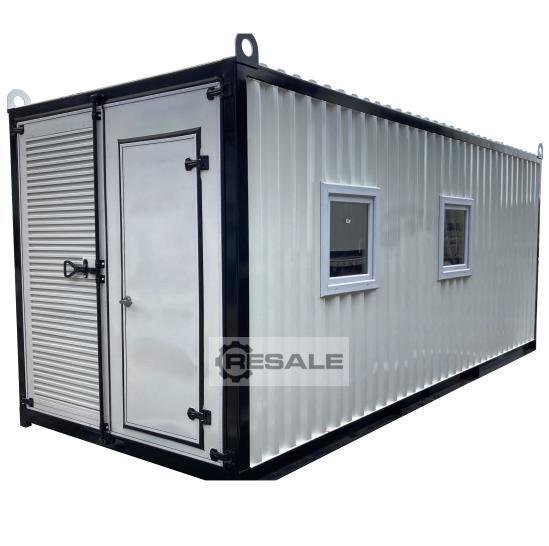

1. CONTAINER TYPE LIQUID SPRAY BOOTH
Spray booth type : Side draft, enclosed type
Air speed : 0,50 m/sec (empty spray booth)
EXTERNAL DIMENSIONS
Length (mm) : 6.058
Width (mm) : 2.438
Height (mm) : 2.591
INTERNAL DIMENSIONS
Length (mm) : 5.900
Width (mm) : 2.350
Height (mm) : 2.390

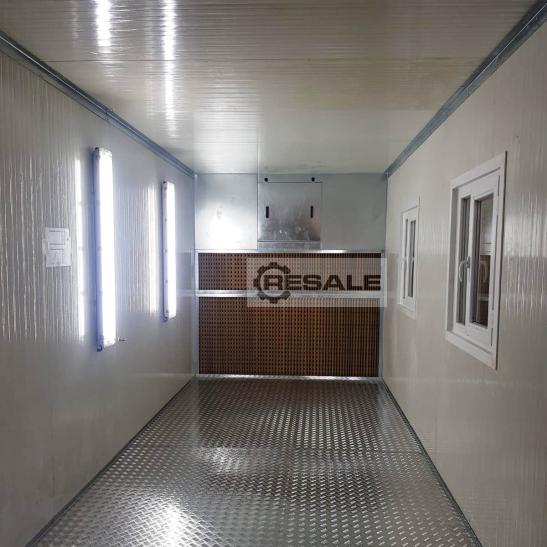

SPRAY BOOTH BODY
Entry doors : 2-leaf hinged door
1x leaf G3 filter for air inlet
1x leaf service and emergency door with a panic bar
Body material : Mild steel and rectangular iron tube metar structure
Insulation : 50mm PIR polyurethane filled sandwich panels, B1 class
flammability
Window : 2 set of 600 x 600mm waterproof PVC window
Container base : Aluminum sheet, non-slip
Lighting system : 2 pcs, 2x36W enclosed type armatures, Ex-proof Zone
2
Lifting : Lifting eyes at the top corner areas, forklift fork
openings at the base
HEATING SYSTEM
Source : Electricity
Heating energy demand : 45 KWh
Resistance type : Tube type serpentine resistances
Insulation : 100 mm Rock wool
WORKING TEMPERATURE
Summer time : Ambient temperature
Winter time : 20-25ºC
Spray booth is heated during the painting operation only
Heating system at drying stage is not included
VENTILATION
Fresh air fan : 12.000 m³/h 5,5KW 50Hz (non-Exproof)
Belt-pulley radial type, sheet metal body and propeller
Paint extraction fan : 10.000 m³/h 2,2KW 50Hz (non-Exproof)
Belt-pulley axial type, sheet metal body, polyamide
propeller
Air speed : min.0,60 m/sec (on the filter surface)
FILTERS
Pre-filters : G3, placed at the fan air inlet
Exhaust filters : Cardboard filters and paint-stop filters, placed at
the filter wall
Contamination control : By differential pressure switch
ELECTRICAL CONTROL PANEL
Control panel : Standard control panel, panel elements used from
Schneider Electric brand
The panel is placed at the outer side of the container,
protected against the rain
Emergency push button
Power supply : 400V 3-phase + neutral power supply socket from
outside, protected against rain
Pressurized air supply : ¾” PPRC threaded inlet inside the
container, hose easy connection inlet from outside
