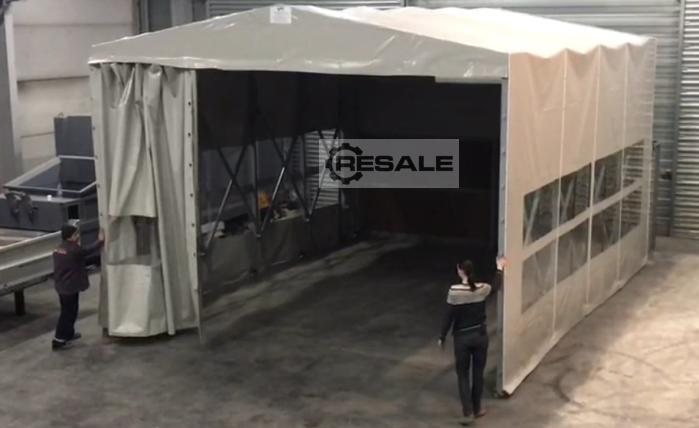

1. RETRACTABLE LIQUID SPRAY BOOTH
Retractable spray booths are designed for manual painting application
with side draft ventilation, for extraction of applied liquid paint
overspray. The benefit of the retractable liquid spray booths is that
saves space in the workshop.
STRUCTURE
It is manufactured from scissor system body, made of electro
galvanized rectangular and circular tube structures and covered by PVC
fabric material from outside. Moving system includes industrial wheels
or rail & wheel system, recommended according to outdoor or indoor use
and spray booth length. A curtain door is designed for closing the
door during the painting application.

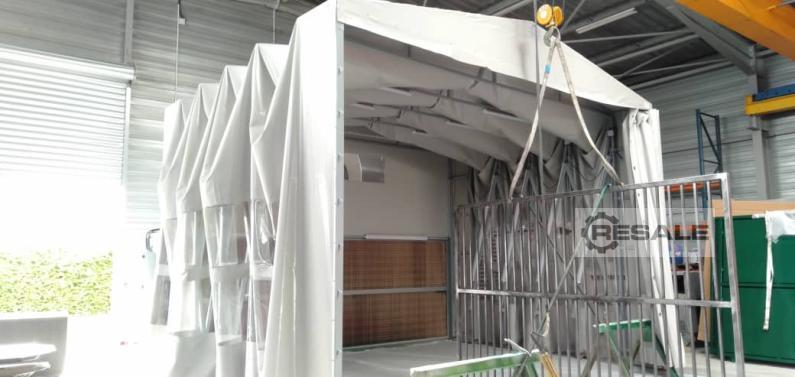

VENTILATION SYSTEM
Side draft ventilation provides high efficiency during painting
application. The filter wall is manufactured modular from galvanized
sheet metal, designed with shelves and emergency door at the two
sides. Extraction fan is placed at the top of the filter wall, chosen
with plastic propeller in order to prevent the risk of a spark caused
by friction to its body during the operation. The electrical motor is
placed out of the fan channel and there is no direct contact of the
motor with the contaminated air.
FILTRATION SYSTEM
Extraction filter is used as 2 stages with 99,9% efficiency, placed at
the side of the spray booth filter wall. There is a pre-filter at the
door curtain that maintains natural airflow inlet during extraction
fan is operating. Warning lamp at the control panel indicates service
need when the filters get contaminated.
