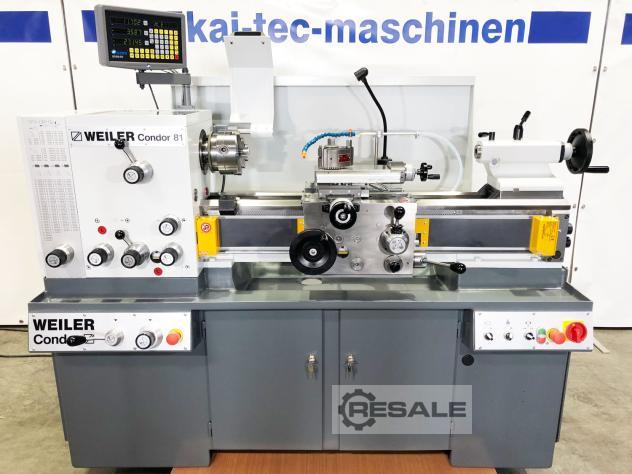

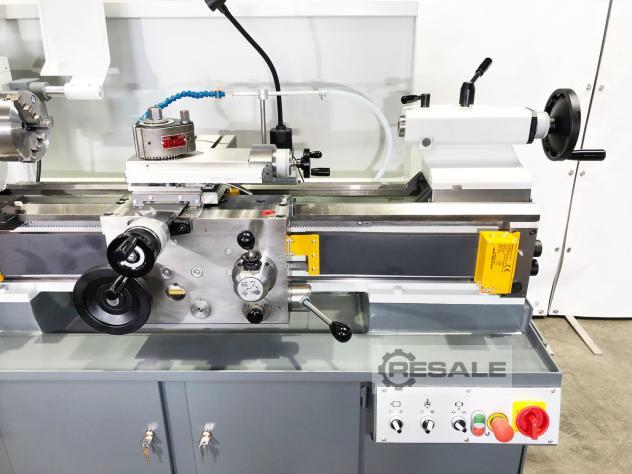

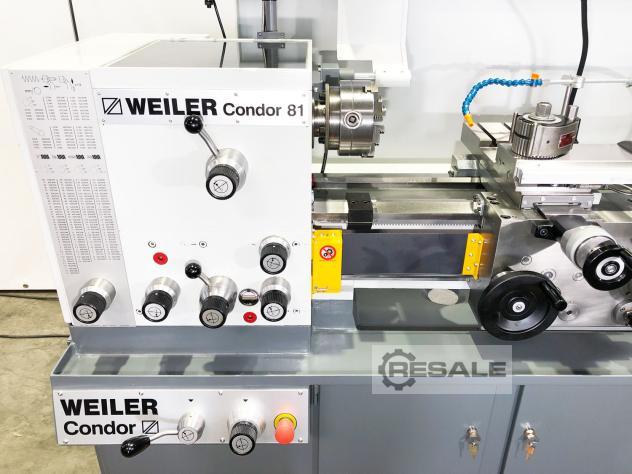

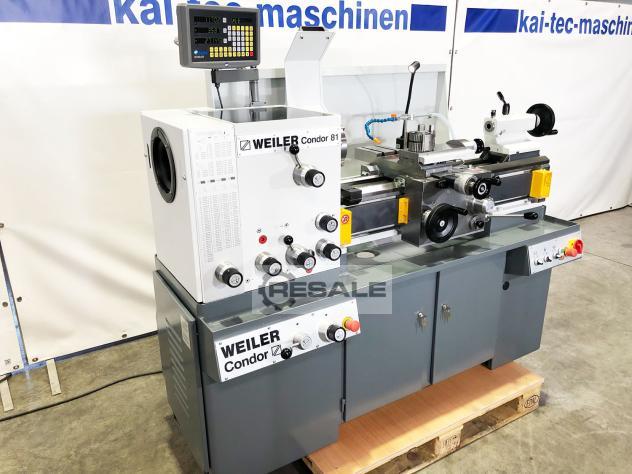

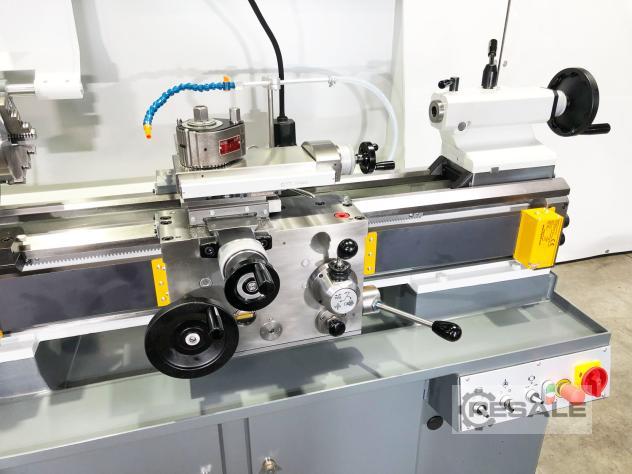

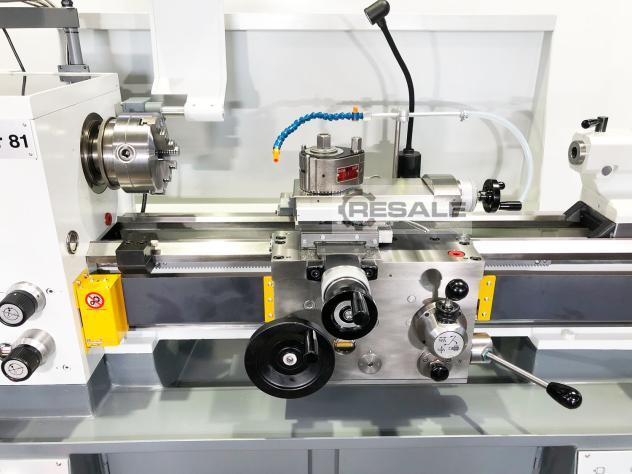

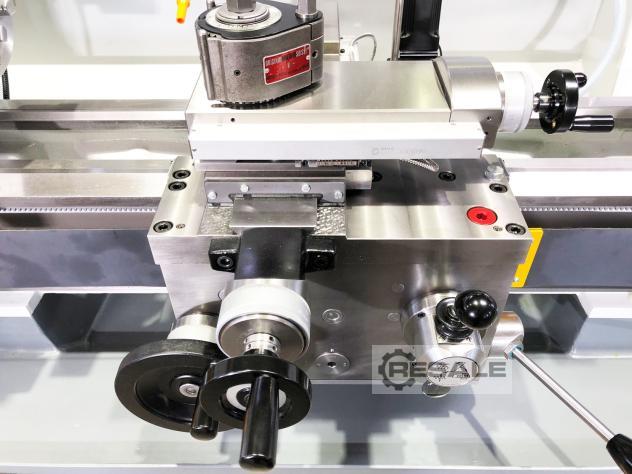

Engine Lathes (Sliding, Surfacing And Screw Cutting Lathes) WEILER Condor 81

Article number: 04-03-141
Manufacturer: Weiler
Very good general condition
Machine partially overhauled
Delivery time: on request - subject to prior sale
Year of construction: ca.1986
L x W x H: approx. 2000x1000x1700mm
Weight: approx. 900kg

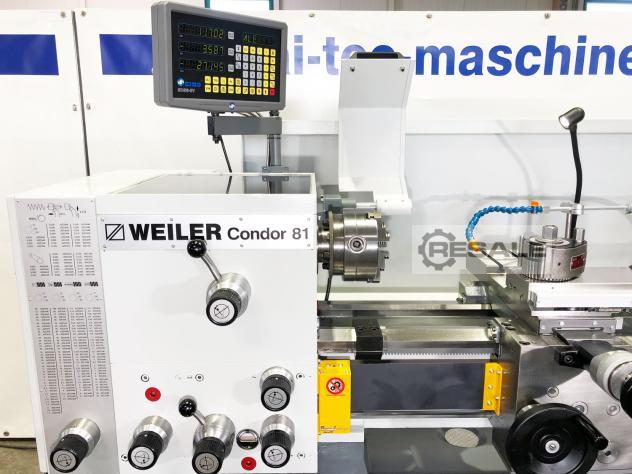

Digital display: 3-axis digital display Sino New
Dimensions:
Max. turning diameter over bed: approx. Ø340mm
Max. turning diameter via support: approx. Ø185mm
Max.turning length: approx. 800mm
Rod passage: approx. Ø42mm
Spindle:
Speed range: approx. 30-2800 rpm
Spindle nose: A 2-5
Drive power: approx. 3.0kW
Automatic Longitudinal & Plan Feeds:
Feed range: approx. 0.016-0.50mm/rev
Suitable for threads:
metric 0.18 – 28 mm inches 80 – 1 gg/
Diametrical – Pitch Thread 200 – 2 3/4 Dp Module 0.1 – 9
Tailstock: MK3
Accessories
 3-axis digital display SINO New
 3-jaw chuck 160mm New
 Quick Release Holder Size E + 1 Insert
 Bed stop
 Work Light New
 Coolant Device New
 Complete documentation
 NOT – Off
 Various tension wrenches
 Machine feet
 Electric Chuck Guard New
 Lead and Pull Spindle Cover New
 Drill chuck optional
 Rotating tip optional
 Additional quick-change holders Optional
Other accessories on request

Price and other technical data on request
seller offer No. resale 04-03-141
