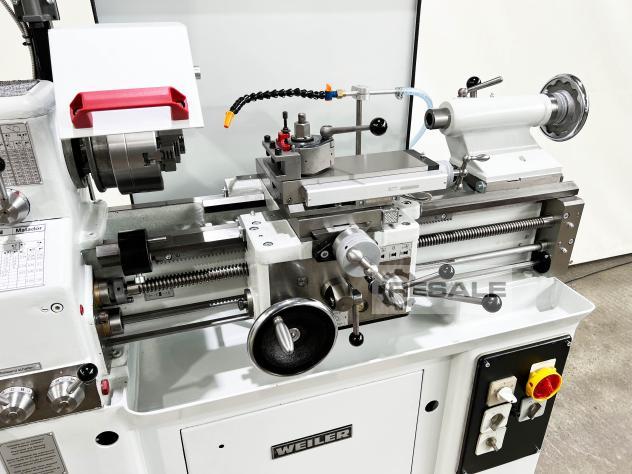

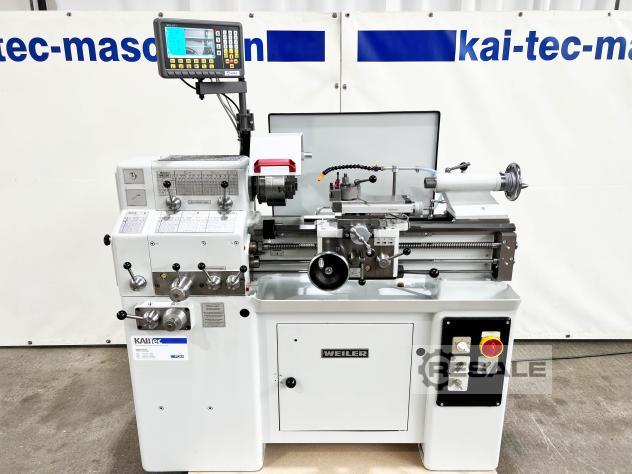

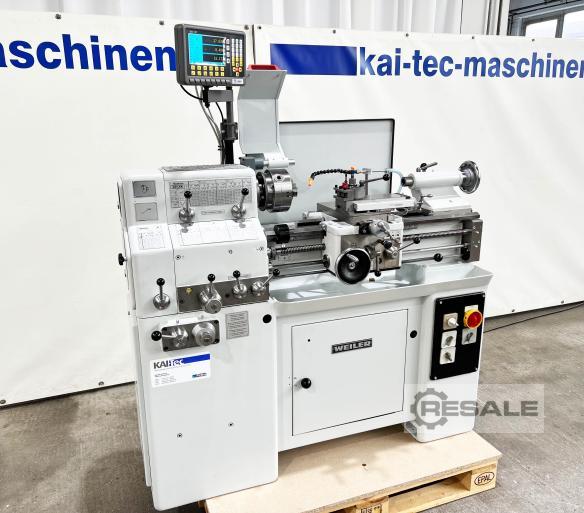

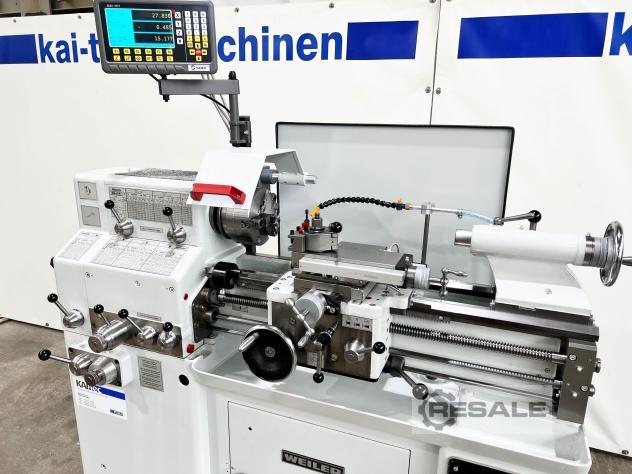

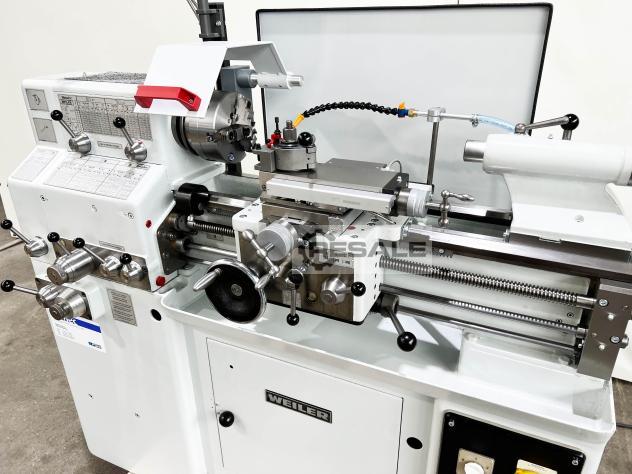

Engine Lathes (Sliding, Surfacing And Screw Cutting Lathes) WEILER Matador VS2

Article number: 04-03-224
Manufacturer: Weiler
Very good general condition
Machine partially overhauled
Shipping time: All rights reserved.
Year of construction: ca.1987
L x W x H: approx. 1500x1000x1700mm
Weight: approx. 600kg
Digital display: 3-axis digital display Sino New
Dimensions:
Max. turning diameter over bed: approx. Ø280mm
Max. turning diameter via support: approx. Ø160mm
Max.turning length: approx. 500mm
Rod passage: approx. Ø36mm
Spindle:
Speed range: approx. 15-3550 rpm
Spindle nose: A 2-5
Drive power: approx. 3.0kW
Automatic Longitudinal & Plan Feeds:
Feed range: approx. 0.05-0.80mm/rev
Suitable for threads:
metric 0.20 – 12 mm inches 80 – 2 gg/
Diametrical – Pitch Thread 160 – 6 Dp Module 0.1 – 4
Tailstock: MK3
Accessories
 3-axis digital display SINO New
 3-jaw chuck 160mm New
 Quick Release Holder Size A + 1 Insert
 Bed stop
 Work Light New
 Coolant Device New
 Complete documentation
 NOT – Off
 Various tension wrenches
 Machine feet
 Electric Chuck Guard New
 Collet Device 386E New
 Collet Set 386E New
 Lead and Pull Spindle Cover Optional
 Drill chuck optional
 Rotating tip optional
 Additional quick-change holders Optional
Other accessories on request

Price and other technical data on request
seller offer No. resale 04-03-224
