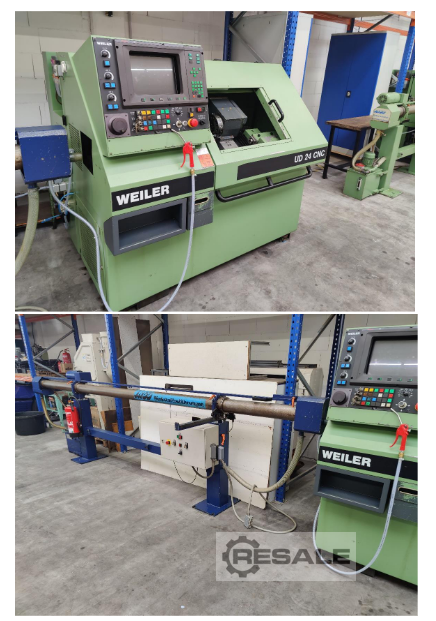

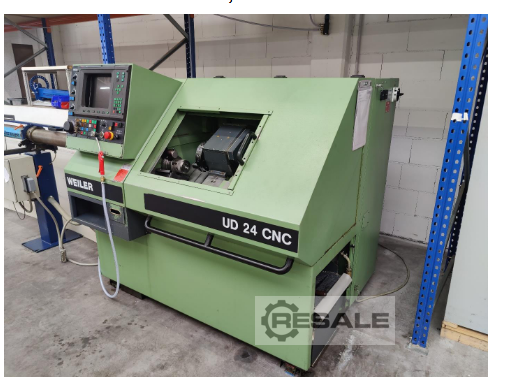

CNC Turning Machines WEILER UD 24 CNC

metal working machines / lathes / CNC Turning Machines

Manufacturer: WEILER

Model:UD 24 CNC

Type of machine: CNC Turning Machines

item-No.: 162697823

Quantity: 0

Date: 10.07.2024

Year of manufacture: 1990

Location: Land-de Germany Baden- Württemberg

Price:


Your price suggestion:

UD 24 CNC
YOC 1990
Condition: well-maintained
Year of Make: 1990
Control: Bosch CC200
Max. turning diameter with jaw chuck: Ø110 mm
Max. turning length: 180 mm
Bar passage: Ø24 mm
Main spindle: 5,000 rpm / 5kW

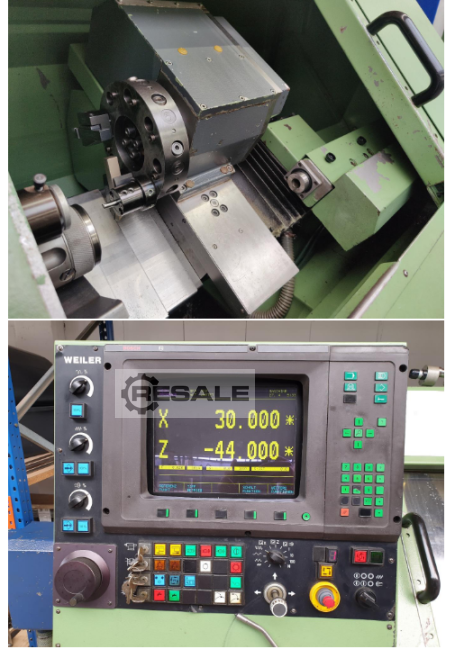

Tool turret: 8-cavity VDI20
W/D/H: 1,830 x 1,435 x 1,625 mm
Weight: 1,600 kg
Bar feeder: Ø24 x 3,000 mm
Bar feeder W/D/H: 4,800 x 900 x 1,300 mm

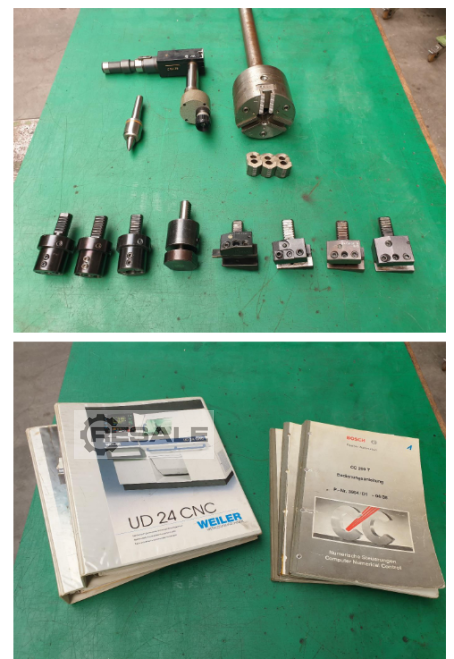

Equipment:
- Collet + jaw chuck
-Tailstock
- IRCO Bar Feeder
- Parts catcher
- Optics for tool measurement
- 8 pieces of VDI mounts
