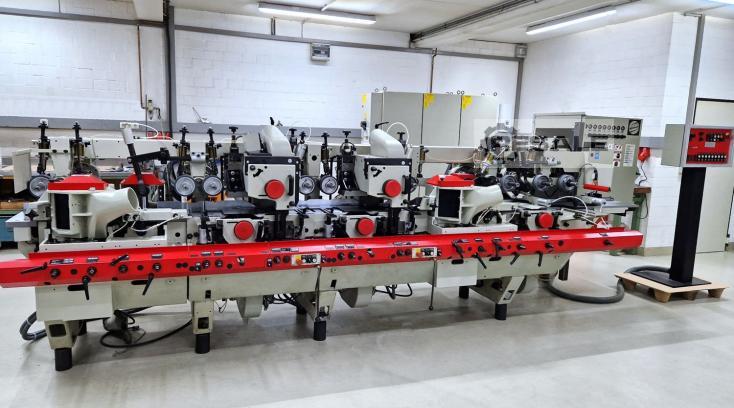

WEINIG Hydromat H23 LINE, S/N 89533
Package chain conveyor with 5 chains approx. 2,700 x 4,800 mm
WEINIG infeed transverse transport HighMech E-1, with 7 flat chains
approx. 2000 x 4200 mm
WEINIG Hydraulic Roller Accelerator 814
Short infeed table with heavy 4-roller feeder
WEINIG Outlet HighMech A-5
Pull-out hinge approx. 2,000 mm x 250 mm
Transverse transport with 7-fold cam chain 4,200 mm
Transfer to 7-fold flat belt transport
Scissor lift with driven chain support

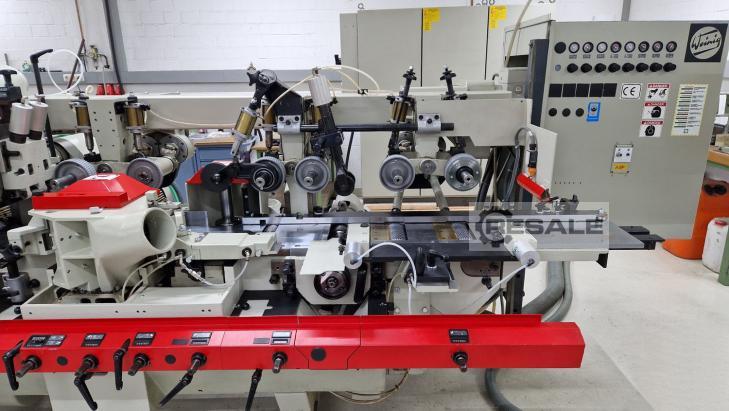

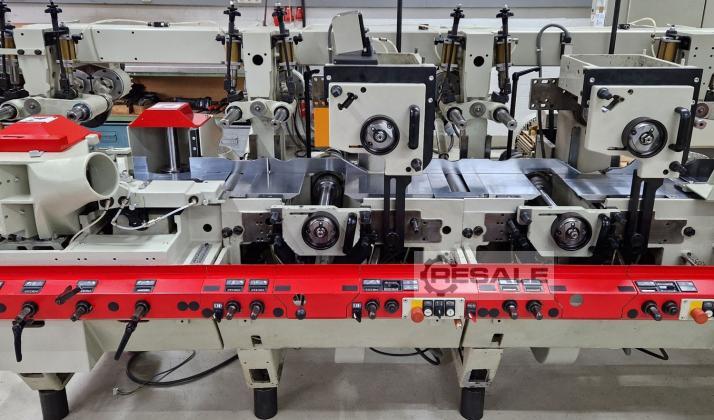

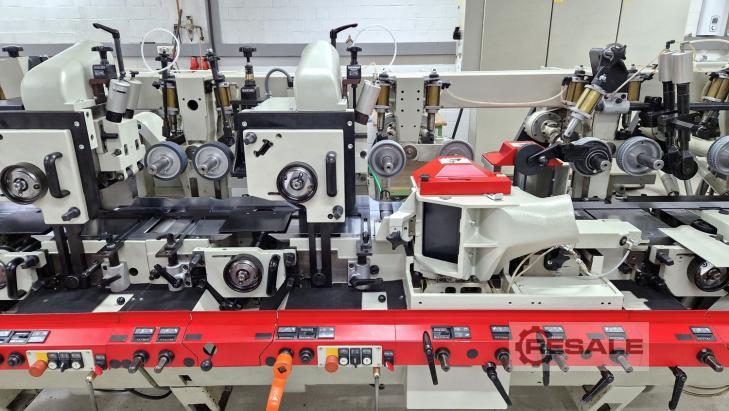

Automatic planer with reinforced KASCHWIG soundproof booth 3-sided
• Working width max. 230 mm
• Working height max. 160 mm
• Electronic feed infinitely variable 8 – 80 m/min.

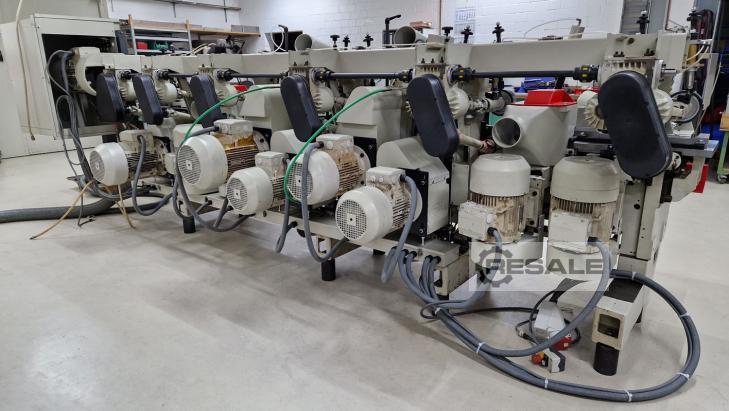

• Feed motor 18.5 KW
• 1st spindle bottom 15.0 KW
• 2nd spindle right 11.0 KW
• 3rd spindle left 11.0 KW
• 4th spindle top 15.0 KW
• 5th spindle bottom 11.0 KW
• 6th spindle top 11.0 KW
• 7th spindle bottom 11.0 KW
• 8th spindle right 11.0 KW
• 9th spindle left 11.0 KW
• Spindle speed 6,000 rpm.
• Spindle diameter ø 50 mm
• Partly NEW spindles
• NEW bearing – in HL version
• all spindle motors with NEW electronic brake

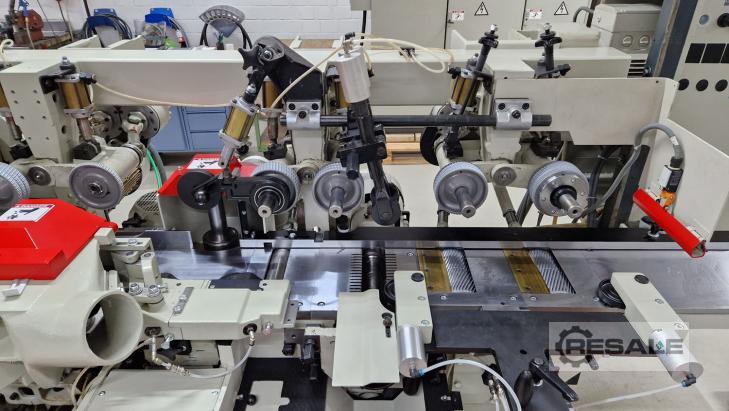

• Pneumatically supported pressure rollers from above
• NEW feed rollers D=140 mm
• 5 driven rollers in the table
• Spindle 1 + 4 + 5 + 6 + 7 with counter bearing
• Spindle 4 + 5 + 6 + 7 with straight jointer on both sides
• Spindle 6 + 7 with profile jointer
• Spindle 4 + 6 pneumatic pressure
• Hard chrome-plated table tops
• Hard chrome-plated stops
• Partly NEW table tops (section 1st spindle)
• Pneumatically assisted pressure rollers on the sides
• Automatic table lubrication
• central position of lubrication points
• Free-standing control panel
• Total connected load approx. 140 KW

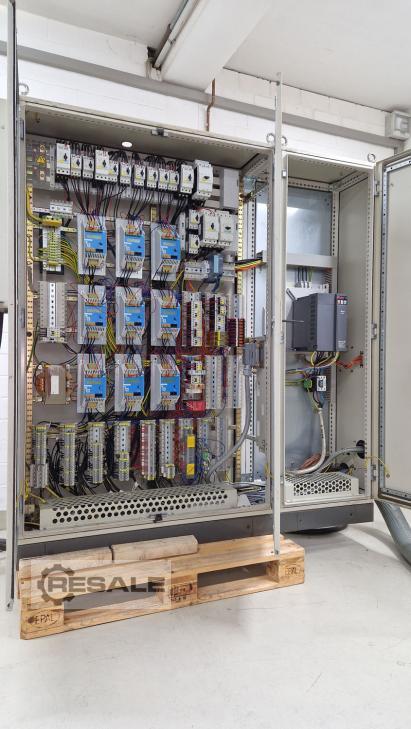

• free-standing control cabinet (380 amps)
• Instruction manual, spare parts list and wiring diagram
• Machine with approx. 10 planer heads
+ Lots of NEW spare parts / accessories

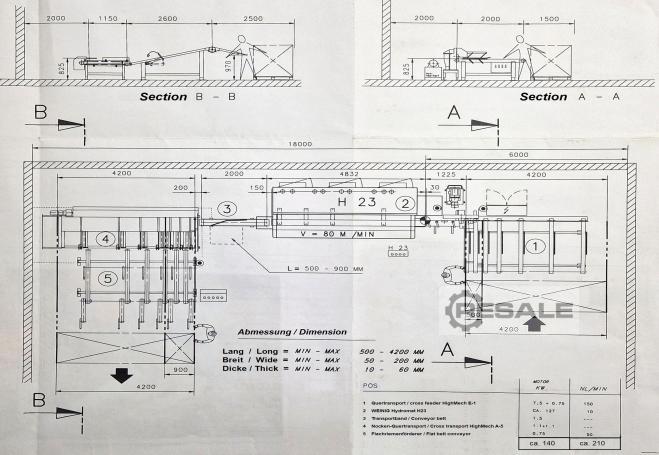

DIMENSION
• Total length approx. 16,650 mm
• Total width approx. 6,600 mm
• Machine weight approx. 7500 KG
Germany
