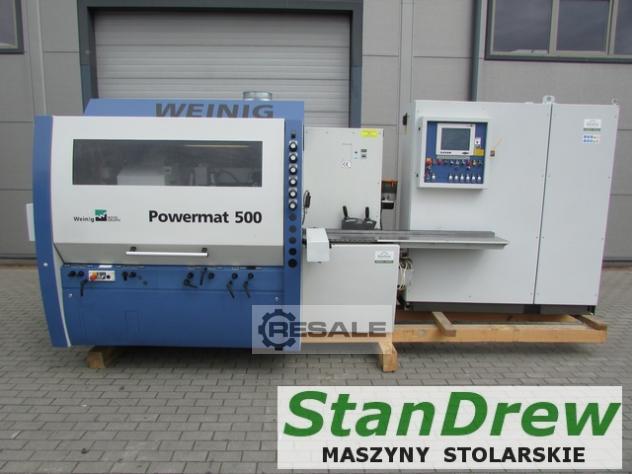

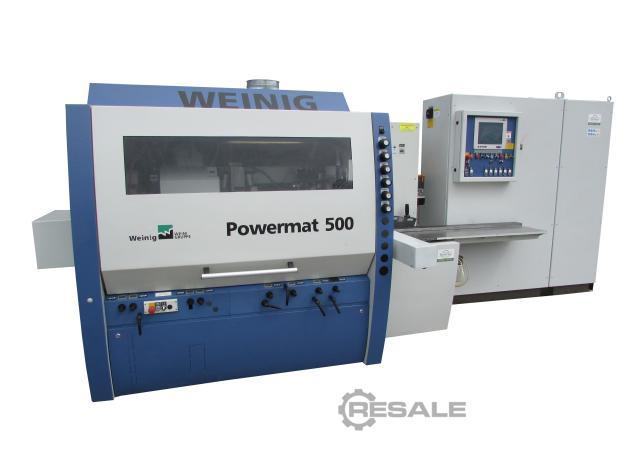

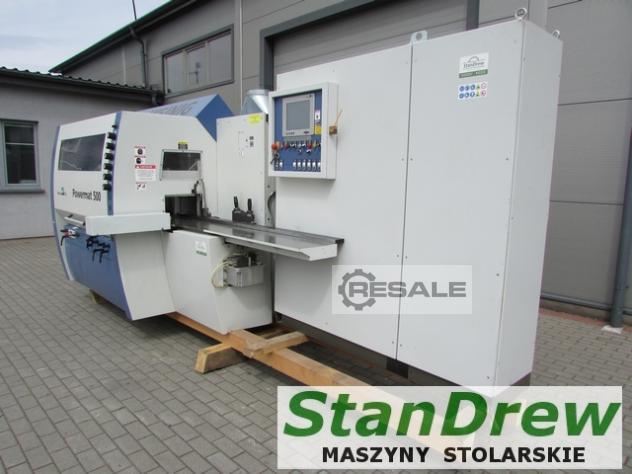

Four-sided planing machines WEINIG Powermat 500

Weinig Powermat 500 four-sided planer

- year of manufacture 2008
- German production

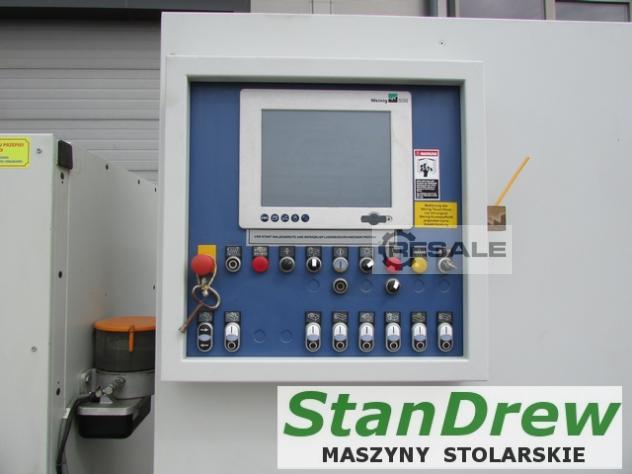

- PowerCom control
- saving profiles with tools and positions
- PowerLock tool mounting

TECHNICAL PARAMETERS:
planing width 300 mm
planing height 200 mm
PowerLock tool mount
PowerCom control with upper and left spindle positioning
1 spindle 11kW
2 spindle 11 kW
3 spindle 11 kW
4 spindle 15 kW
5 spindle 15 kW
milling spindle 1,5 kW 12000 rpm
spindle speed 8000 rpm
infinitely adjustable feed rate 6-36 m/min
feed motor power 4kW

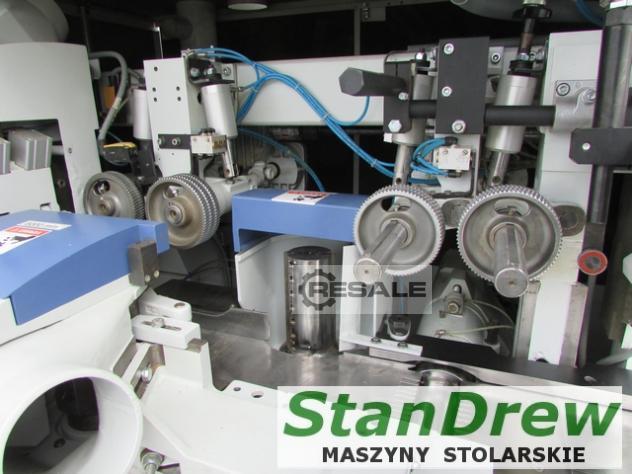

five upper steel pulling rollers
one rubber top pulling roller
one roller in the countertop pulling
airbag in the table
automatic central lubrication of the table
Automatic lubrication of spindle guides
Serving table length 1970 mm
nozzle diameter 2x140 mm 3 x 160 mm 1 x 80 mm
total power 70 kW 140 A

Machine dimensions
500x225x242 cm
weight 3000 kg
seller offer No. resale 161509585
