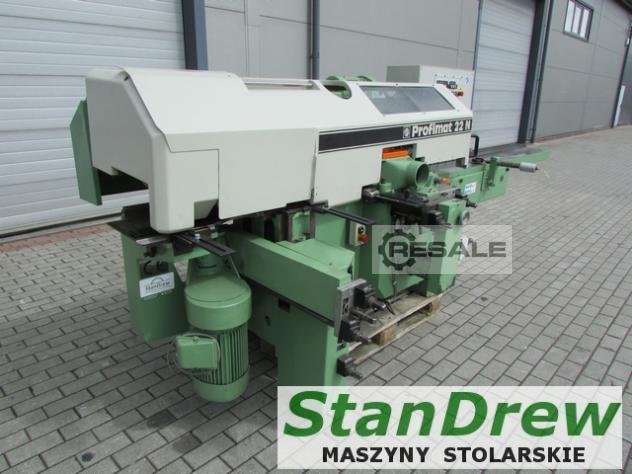

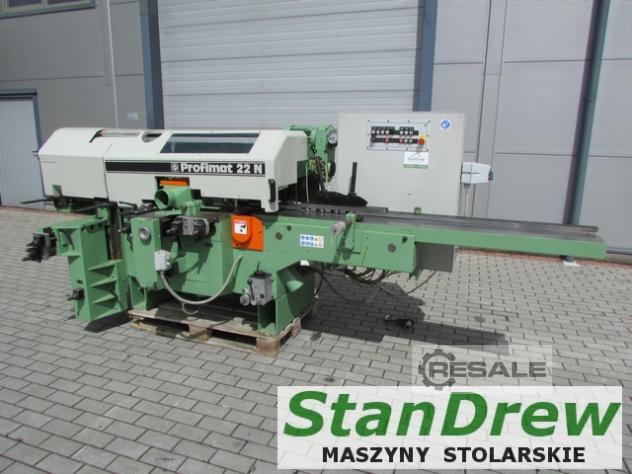

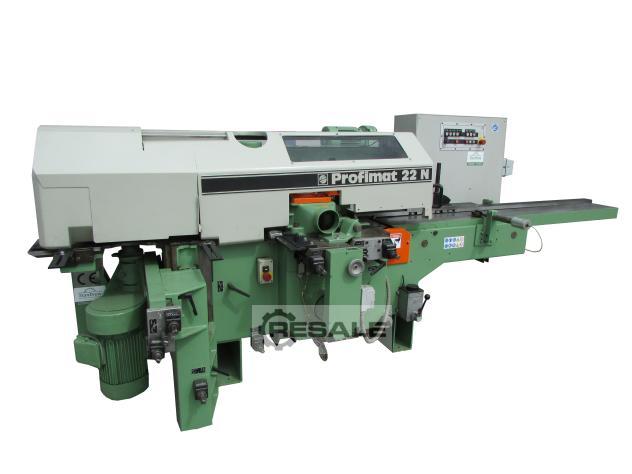

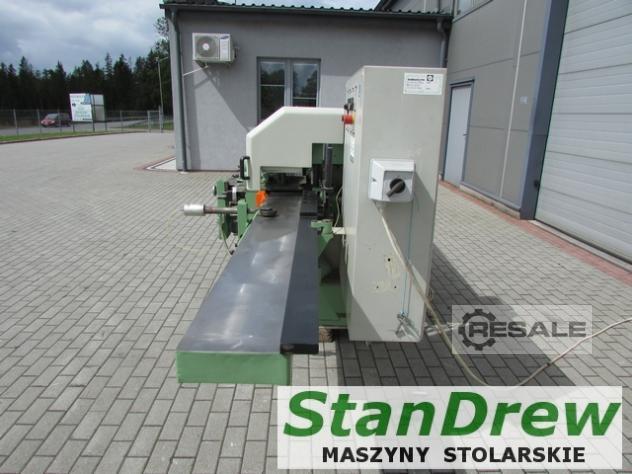

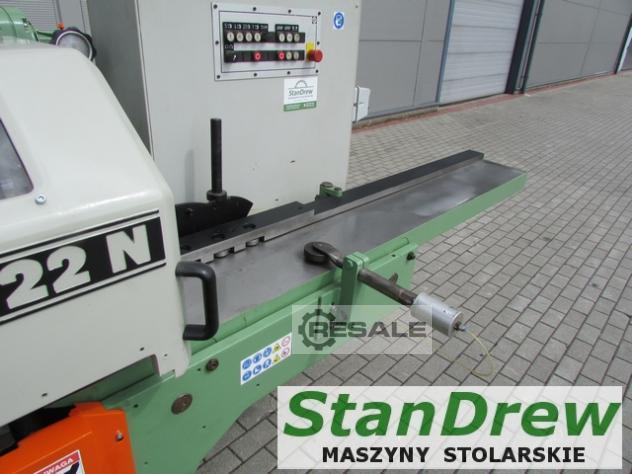

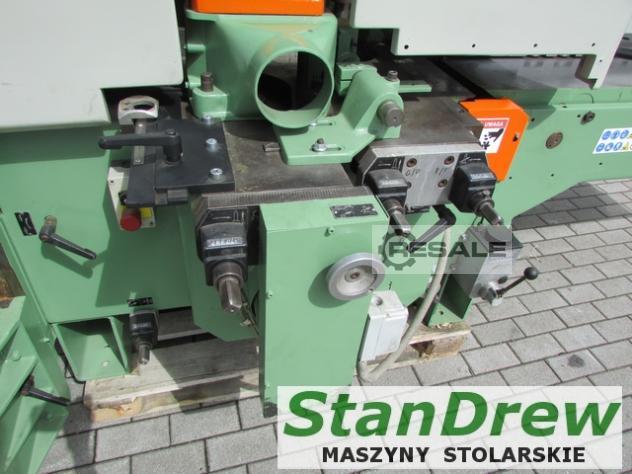

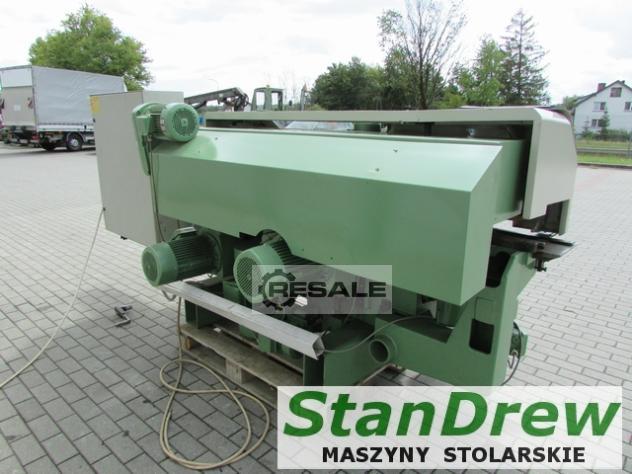

Four-sided planing machines WEINIG PROFIMAT 22N

–DTR
– German production
– electric adjustment of the left head
– adjustable spindles

TECHNICAL PARAMETERS:
planing width 220 mm
planing height 120 mm
spindle diameter 40 mm
1) bottom head 5.5 kW
2) right head
3) left head 7.5 kW
4) top head 5.5 kW
5) universal head 360° 5.5 kW
feed motor 2.2 kW
feed speed 5 – 20 m/min
four steel pulling rollers
two top rollers pulling rubber
one pulling roller in the countertop
feed on cardan shafts
electric height adjustment
length of the pre-worktop 1970 mm
central lubrication
pneumatic clamps
dimensions of the machine (L/W/H) 380 / 200 / 170 cm
weight ~ 2000 kg
seller offer No. resale 160197495
