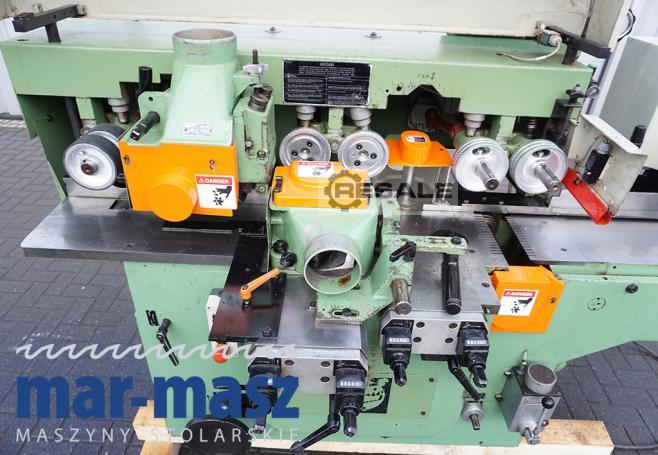

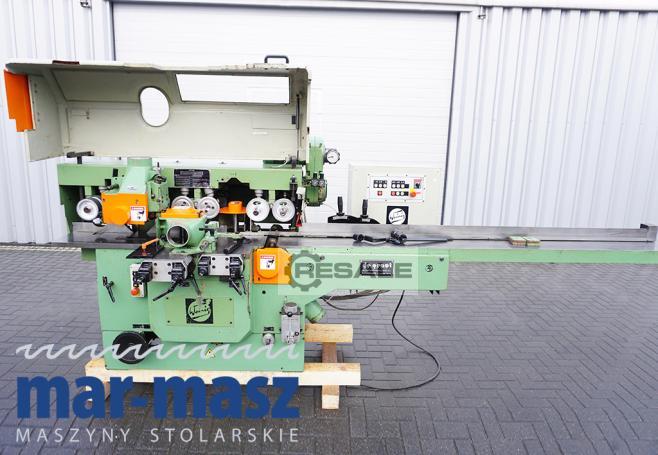

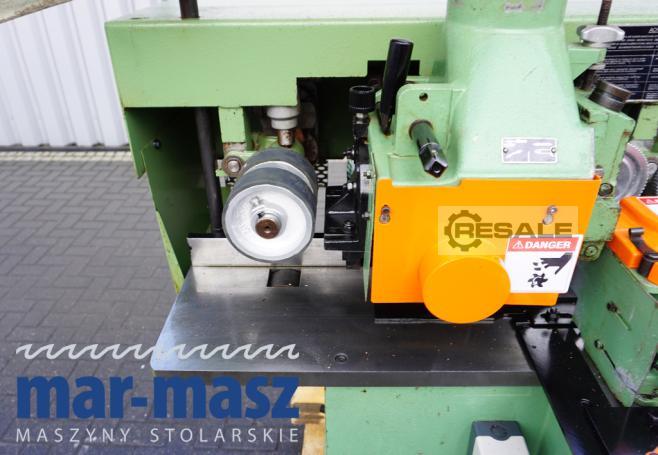

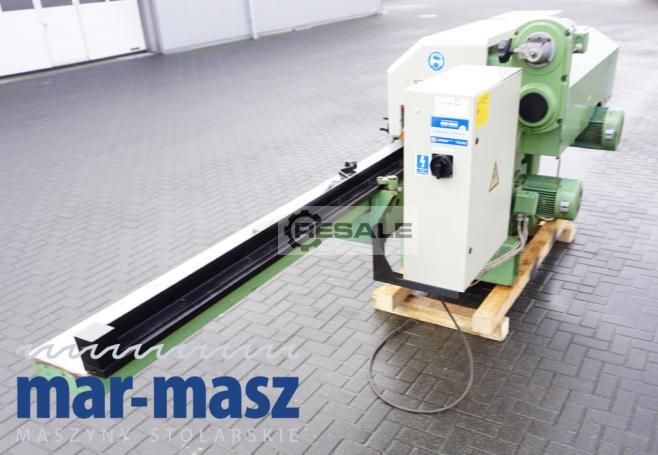

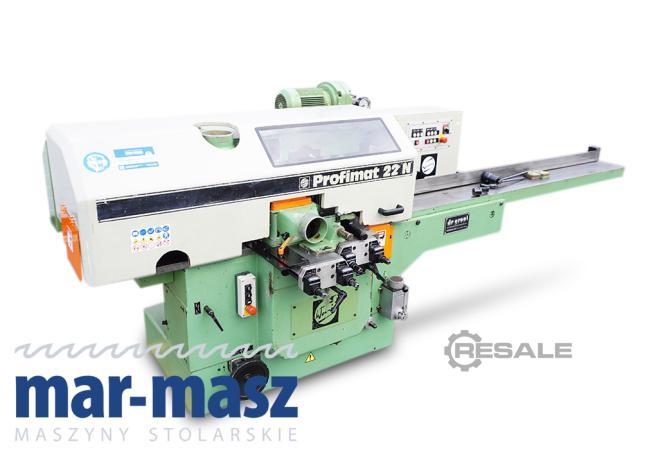

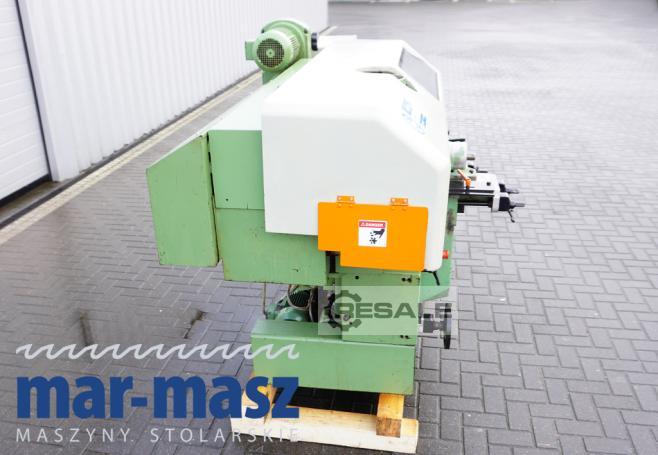

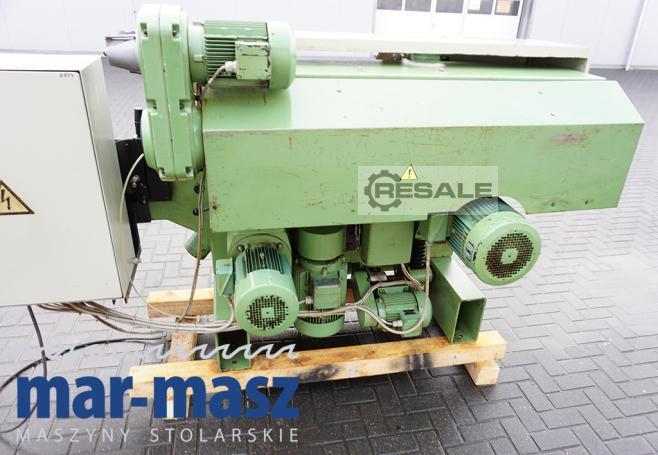

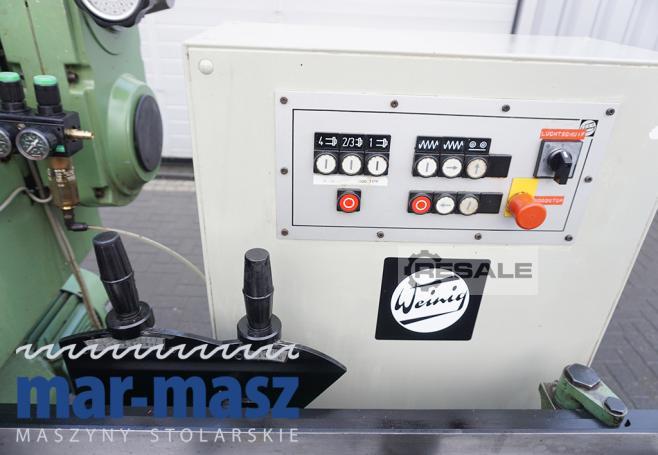

Four-sided planing machines WEINIG Profimat 22N

wood working machines / planing machines / Four-sided planing machines

Manufacturer: WEINIG

Model:Profimat 22N

Type of machine: Four-sided planing machines

item-No.: 161879660

Quantity: 0

Date: 17.07.2023

Year of manufacture:

Location: Land-pl Poland 83-34 Sierakowice

Price: 11,213 EUR

Machine in stock:Yes

Seller-item-No.:6824

Catalogue number: 6824

TECHNICAL SPECIFICATIONS
- max width of the workpiece 220mm
- max height of the workpiece 125mm
4 spindles:
1) horizontal bottom 220mm 7,5kW
2) vertical right 125mm
3) vertical left 125mm; (2 and 3 spindles) 11kW
4) horizontal top 220mm 11kW
- all spindles adjustable up/down, right/left
- spindle diameter 40mm
- 4 pulling, toothed and metal insertion rollers from above
- from above 1 double shaft pulling, rubber
- from the bottom of the pulling shaft, rubber
- feed on cardan shafts
- smooth regulation of feed speed 6-22m / min
- feed motor 3kW
- lifting motor 0,55kW
- electrical setting of planing thickness
- length of the introductory table top 2470mm
- central lubrication
- diameter of extraction connection 3x120mm, 140mm
- locked in the cabin
- dimensions length / width / height 3940x1450x1470mm
- weight 1666kg

– unpainted
– used planer, very good condition

Net price: 49900 PLN
Price without tax: 11213 EUR depending on the price 4.45 EUR
(Prices may fluctuate with higher fluctuations)
