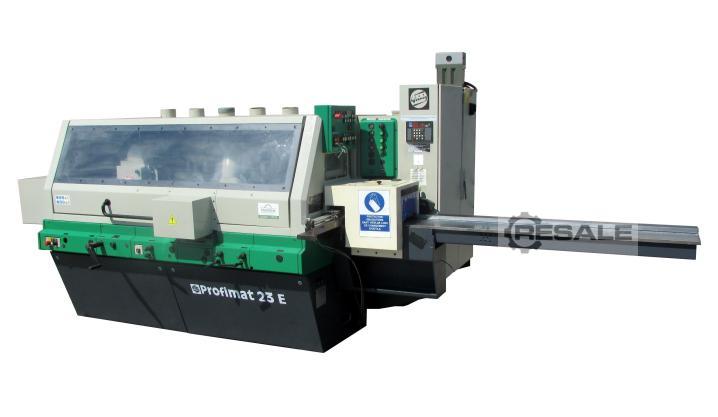

Four-sided planing machines WEINIG PROFIMAT 23E

– German production
– year of production 1995

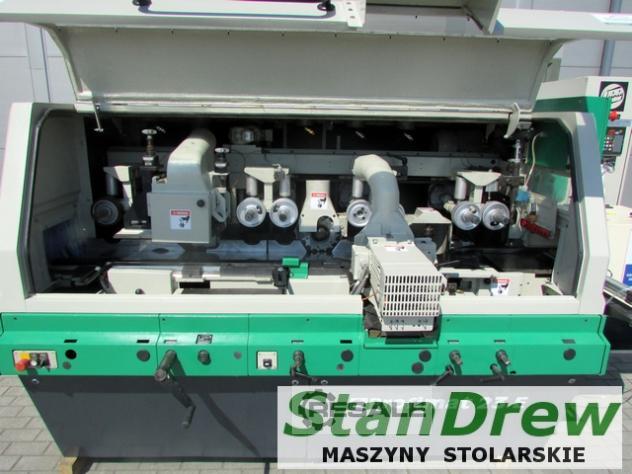

– right and left spindles with a front milling cutter ensuring parallelism and a right angle of 90°
– measurement of the width of the element

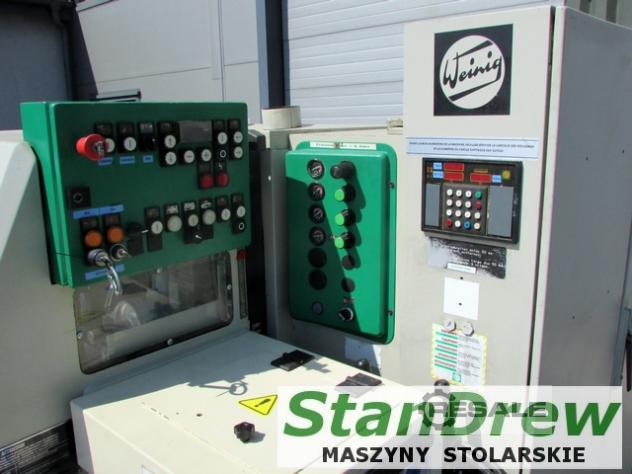

– electronic width setting

TECHNICAL PARAMETERS:
planing width 230 mm
planing height 120 mm
control of the width of planing electronic
1 bottom spindle 4 kW
2 right spindle 4 kW
3 left spindle 4.2 kW (front milling)
4 right spindle 4.2 kW (front milling)
5 top spindle 7.5 kW
element width measurement
electric height adjustment of feed rollers
electric height adjustment of the upper spindle
spindle diameter 40 mm

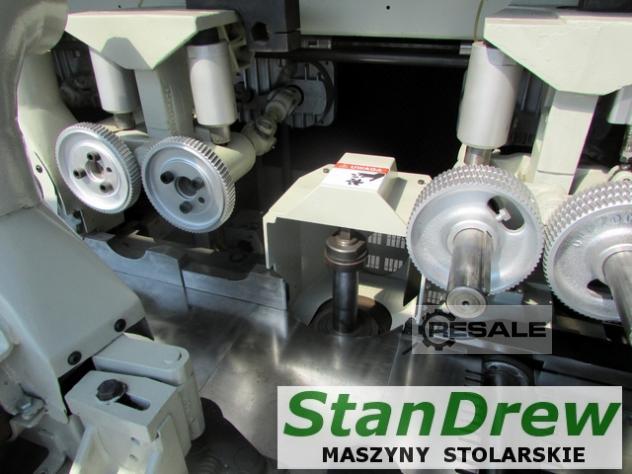

six steel top rollers
one top rubber roller
one roller in the working table top pulling
pneumatic pressure
feed on cardan shafts
pre-table length 2470 mm
connection diameter 140 mm
dimensions of the machine (L/W/H) 456 / 240 / 220 cm
weight 4000 kg
seller offer No. resale 160197431
