CATALOG NO. 6904
TECHNICAL DATA
- max width of the workpiece 230mm
- max height of the workpiece 130mm
6 spindles:
1) horizontal bottom 230mm 5.5kW
2) vertical right 130mm
3) vertical left 130mm (2nd and 3rd spindle) 7.5kW
4) horizontal top 230mm 5.5kW
5) horizontal bottom 230mm 5.5kW
6) universal 230mm, 360° adjustable 5.5kW
- all spindles adjustable up / down, right / left
- spindle 1,2,3,4,5 equipped with an electric brake
- spindle diameter 40mm

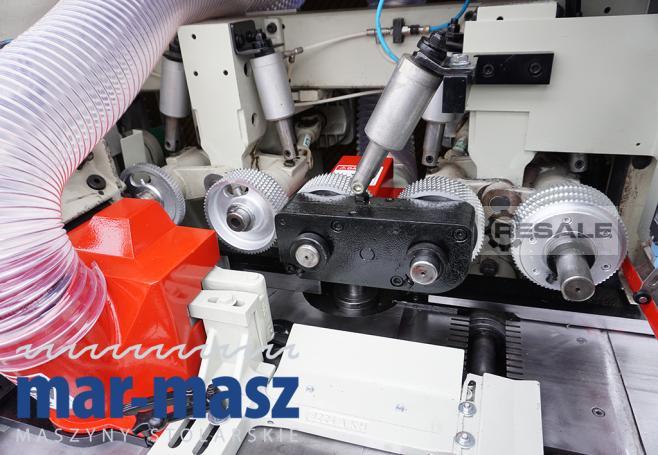

- 5 introductory, toothed, pulling rollers from above
- from above, 4 rollers, pulling, rubber, smooth, including 2
double
- from the bottom, a rubber roller, pulling
- feed on cardan shafts
- rollers pressed pneumatically
- smooth adjustment of the feed speed
- feed motor 4kW
- working pressure 6-10 bar
- electric setting of planing thickness
- motor lifting the body of about 0.55 kW
- central lubrication of the countertop
- length of the introductory tabletop 1970mm
- diameter of extraction stubs 2x140mm, 4x135mm
- dimensions length/width/height 4430x1830x2000mm
- weight about 3500 kg
ADVANTAGES
– German production, WEINIG brand
– for 6 heads
– technical documentation
– universal spindle
– used planer, very good condition
Net price: PLN 119900
Net price: 25785EUR
Net price calculated according to the exchange rate of 4.65 PLN/EUR
(with larger exchange rate fluctuations, the price may change)
Poland
