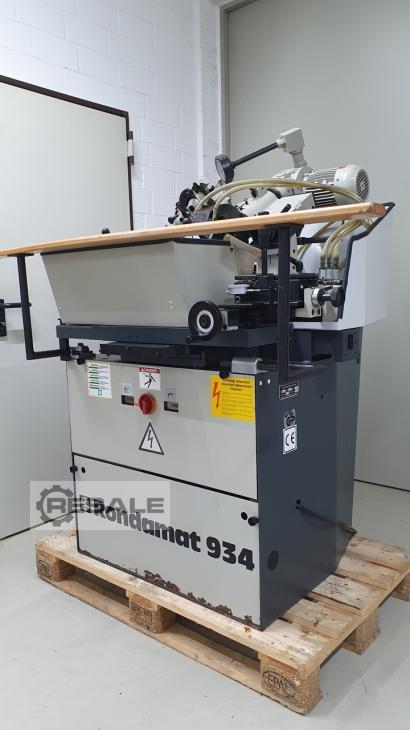

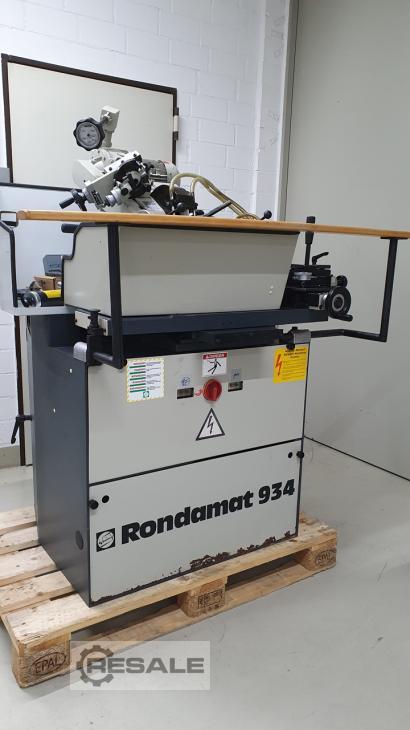

WEINIG Rondamat R 934 S/N 934-733, YOC 1996
Machine for manual profile knife grinding / regrinding profile
knife
Sharpening of straight knives in the planer head – according to a
template
Tool flight circle min. 100 mm / max. 300 mm
Tool width max. 240 mm
Grinding wheel diameter min. 150 mm / max. 225 mm
Grinding wheel bore 60 mm
Mandrel D=40 mm
Grinding wheel width – ceramic 5 mm
Borazon 10 mm
Grinding wheel output 1.1 kW
Spindle speed, infinitely variable 500 – 3,000 rpm.
Clearance Angle – Radial (Back) 10 – 30 degrees
Axial (lateral) 0 – 20 degrees
Axial for planer heads 60 degrees
Coolant tank approx. 50 litres
Electrical connection approx. 1.5 KW
Operating voltage 380 V / 50 Hz
Machine complete with accessories
Machine technically and optically in good condition – fully
functional
Packing: On pallet
Payment: Net cash register before loading
Delivery time: short-term by arrangement
Price: on request
A viewing is possible at any time by arrangement
Errors and prior sale excepted
Germany
37120 Bovenden
